Vestil Steel Mini Overhead Cantilever Jib 600 Lb. Capacity Blue
Regular price
$1,091.93
Sale price
$1,091.93
Regular price
Unit price
Product Description
Description:

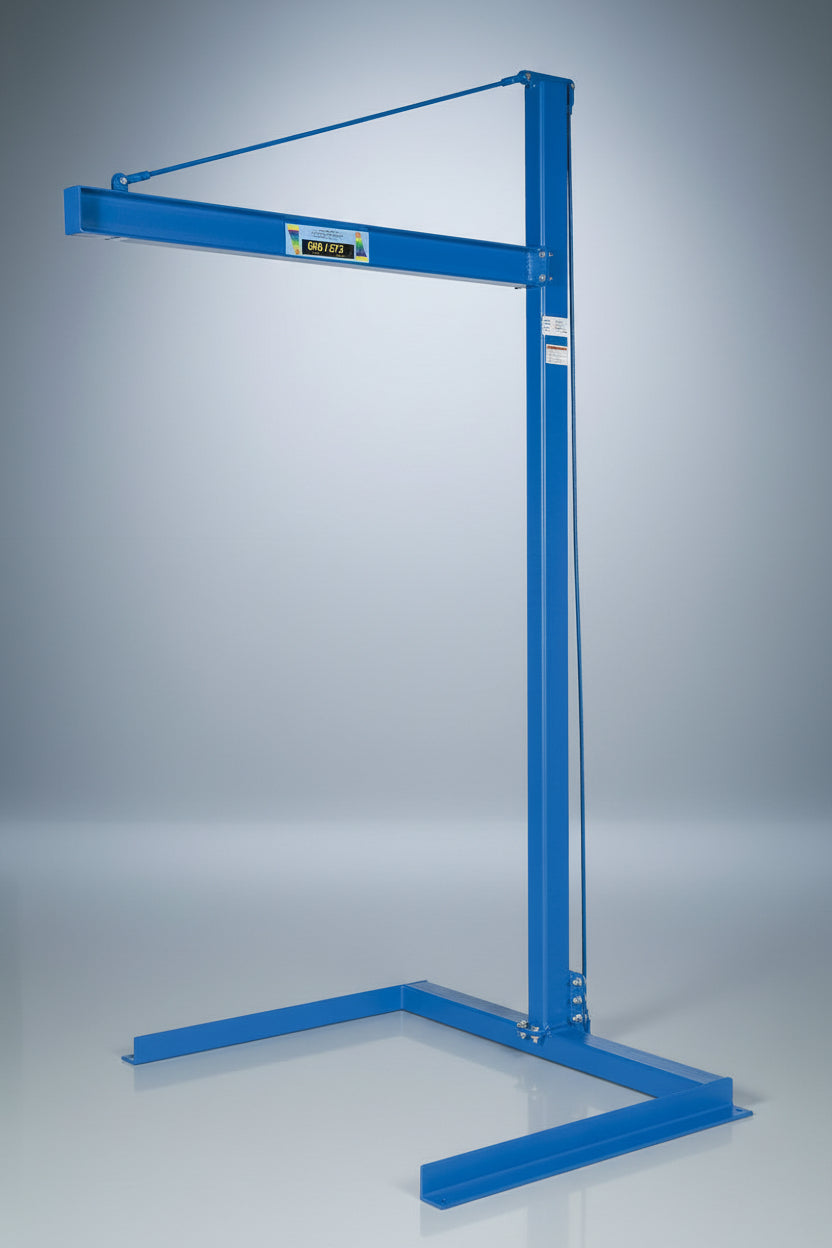

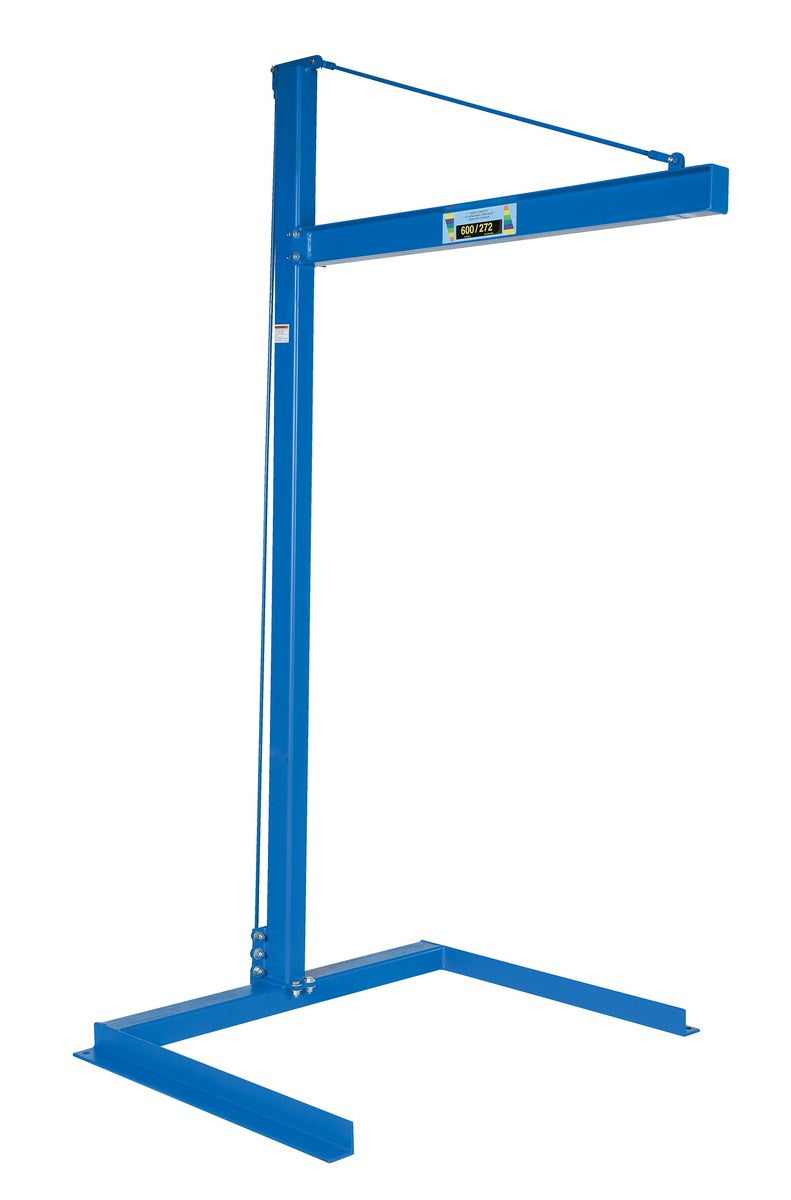

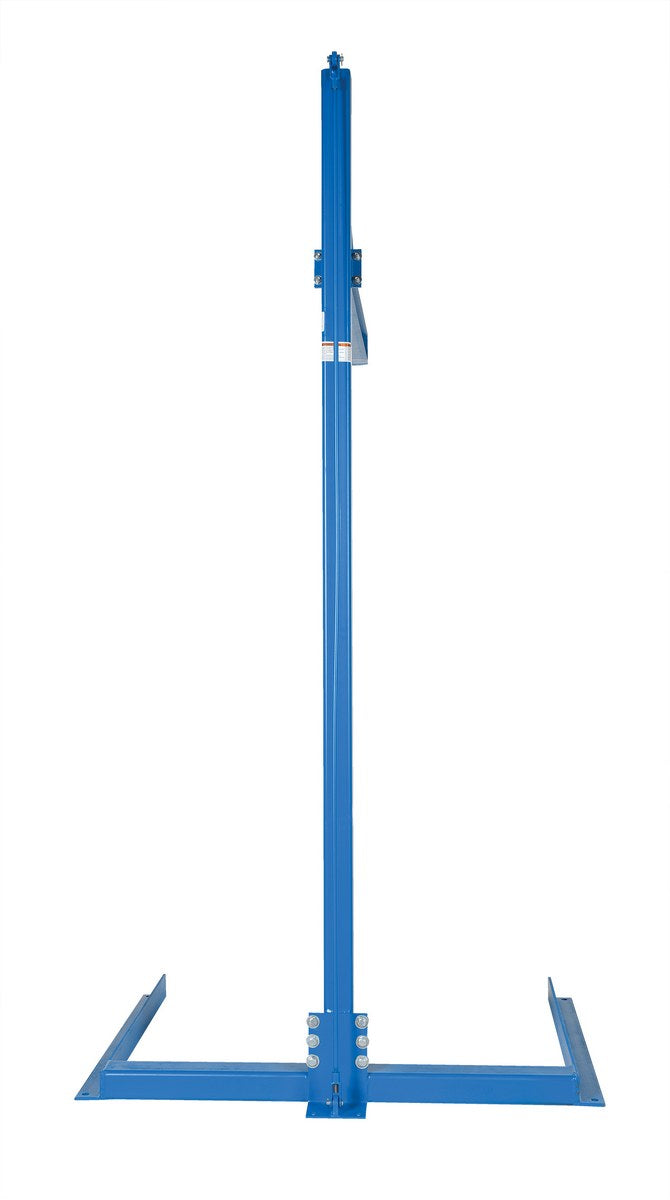

This mini overhead Cantilever Jib works well in a variety of work areas. The unique design allows for outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Hoist, trolley and cart not included.
- Consistent I-beam flange for secure lifting
- Straddle leg design
- Pre-drilled lag down holes
- Steel construction with a painted blue finish
- 1 Year Limited Warranty
- Lead time: 30 days
Assembled Wt.(lbs.): 242 Assembled Size: 53.75"W x 63.125"L x 106.6875"H
Total Ship Wt.(lbs.): 327 Package 1 Size: 44"W x 106"D x 16"H
| Uniform Capacity (lb.): 600 | Under I-Beam to Ground Length (in.): 84 | I-Beam (Flange x Height) (in.): 2-11/16 x 4 |
| I-Beam Usable Length (in.): 54 | Straddle Width Inside Diameter (in.): 47-3/4 | Outrigger Length (in.): 39-3/4 |
| Operation Mode: Manual | Mounting Holes Quantity/Diameter (in.): (4) 3/4 |
