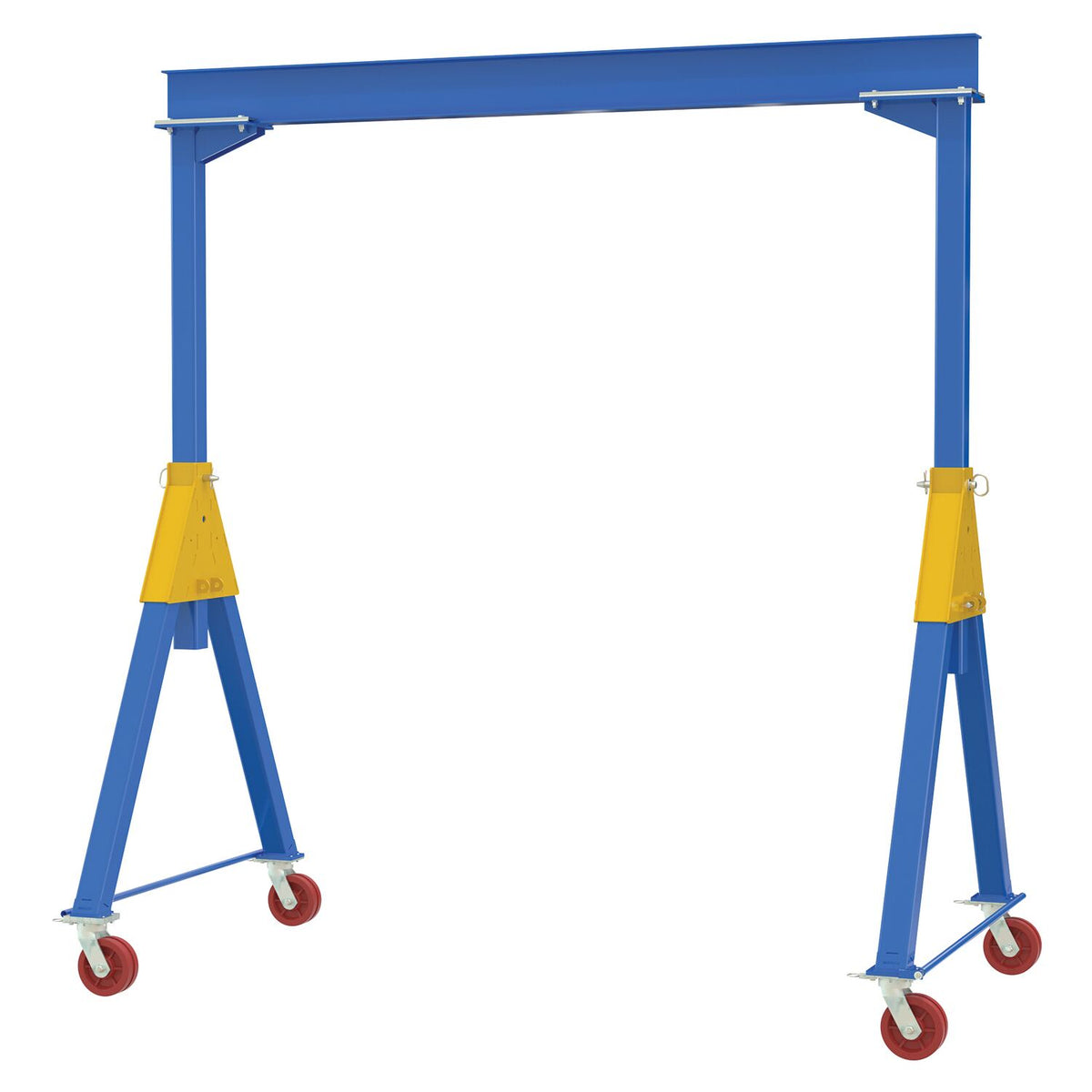

Vestil Steel Knockdown Fixed Gantry Crane with V-Groove Ductile Steel Casters 20 Ft. 8000 Lb. Capacity Blue

Regular price $6,002.48
Sale price $6,002.48 Regular price
Unit price
Product Description

Description:

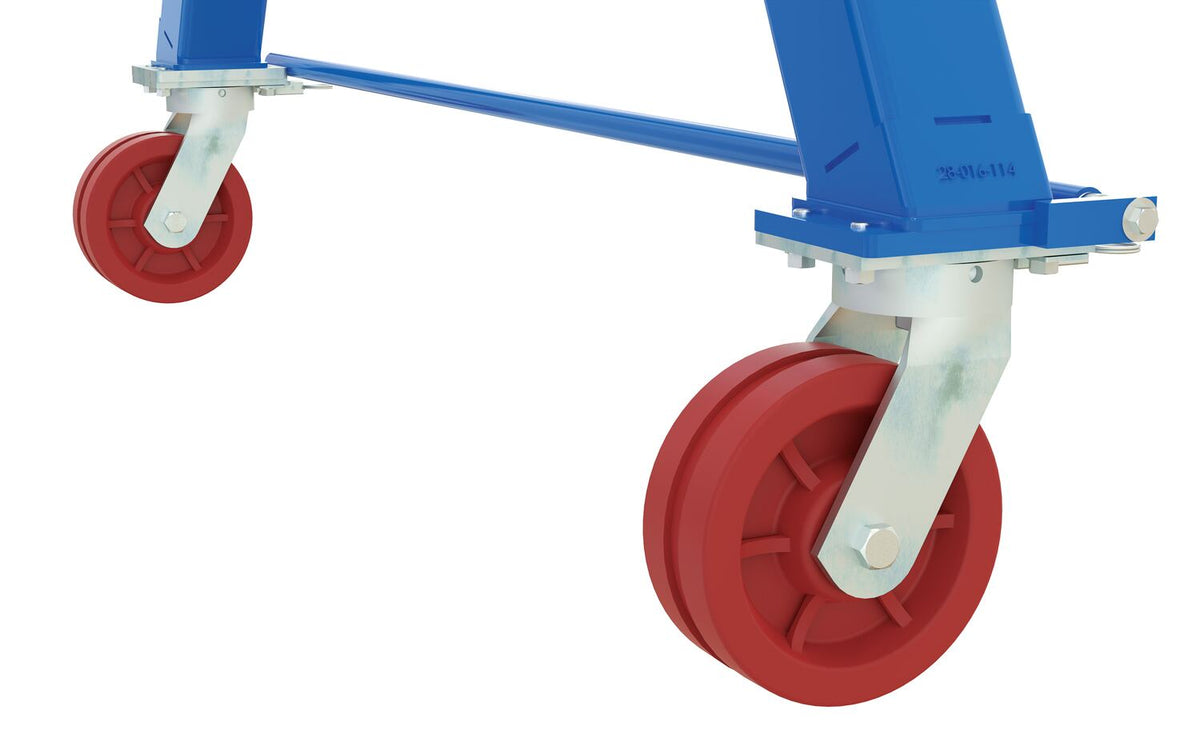

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • Complies with applicable ANSI specifications
  • 1 Year Limited Warranty
  • Lead time: 35 days

Assembled Wt.(lbs.): 1279 Assembled Size: 64.5"W x 240"L x 133.9375"H

Total Ship Wt.(lbs.): 1399 Package 1 Size: 65"W x 77"D x 19"H



Uniform Capacity (lbs.): 8000 Casters Swivel (Qty): 4 Caster Diameter (in.): 8
Caster Width (in.): 3 Caster Material: Ductile Steel Beam Height (in): 12.3125
Beam Length (in): 240 Usable Beam Length (in): 209.75 Flange Width (in): 6.5
Base Width (in): 64.5 Base Length (in): 229.25 Maximum Overall Height (in): 133.938
Adjustable Height: No Maximum Clearance (in): 121
