Vestil Steel Knockdown Fixed Gantry Crane with Ductile Steel Casters 15 Ft. 10,000 Lb. Capacity Blue
Regular price
$5,982.94
Sale price
$5,982.94
Regular price
Unit price
Product Description
DESCRIPTION:

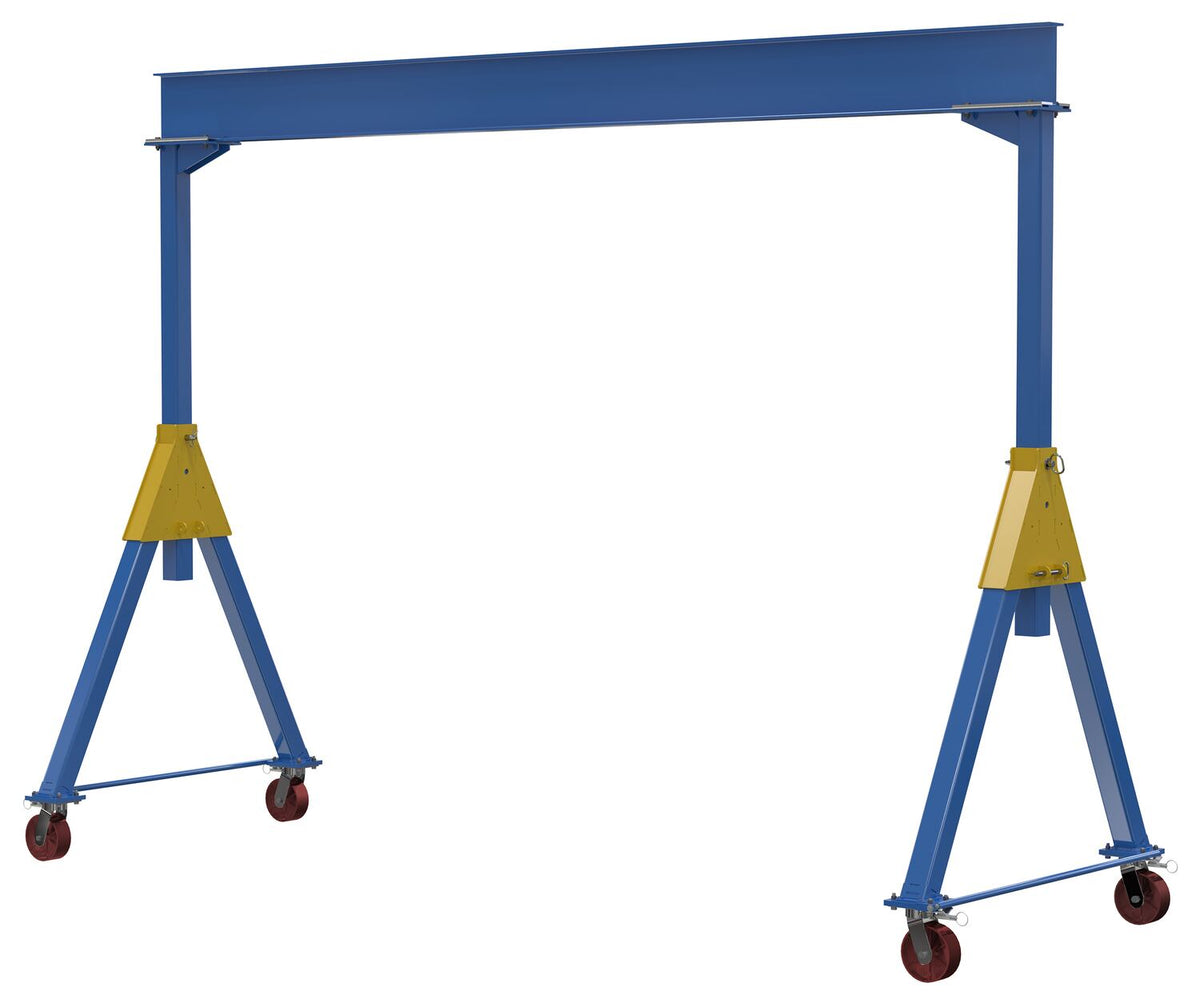

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with four (4) 8" swivel casters with four-position locks steel casters. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
- Heavy-duty welded steel construction for long lasting use
- Each unit includes four swivel steel casters with four-way position locks for safe positioning
- Powder coat blue provides durable attractive coverage
- Complies with applicable ANSI specifications
- 1 Year Limited Warranty
- Lead time: 35 days
Assembled Wt.(lbs.): 980 Assembled Size: 64.5"W x 179.75"L x 135.0625"H
Total Ship Wt.(lbs.): 1275 Package 1 Size: 63"W x 116"D x 28"H
| Uniform Capacity (lb.): 10,000 | Overall I-Beam Length (in.): 179-3/4 | Overall I-Beam Height (in.): 12-3/16 |
| I-Beam Flange Width (in.): 4 | Under I-Beam to Ground (in.): 122-1/8 | Base Width (in.): 64-9/16 |
| Caster Quantity/Diameter/Width (in.): (4) 8 x 3 | Caster Type: Swivel (4) Position Locking Casters w/ Roller bearings | Caster Material: Ductile Steel |
| Usable Length (in.): 149-3/4 | Style: Knock-Down | Overall Height (in.): 134-1/4 |
