Product Description

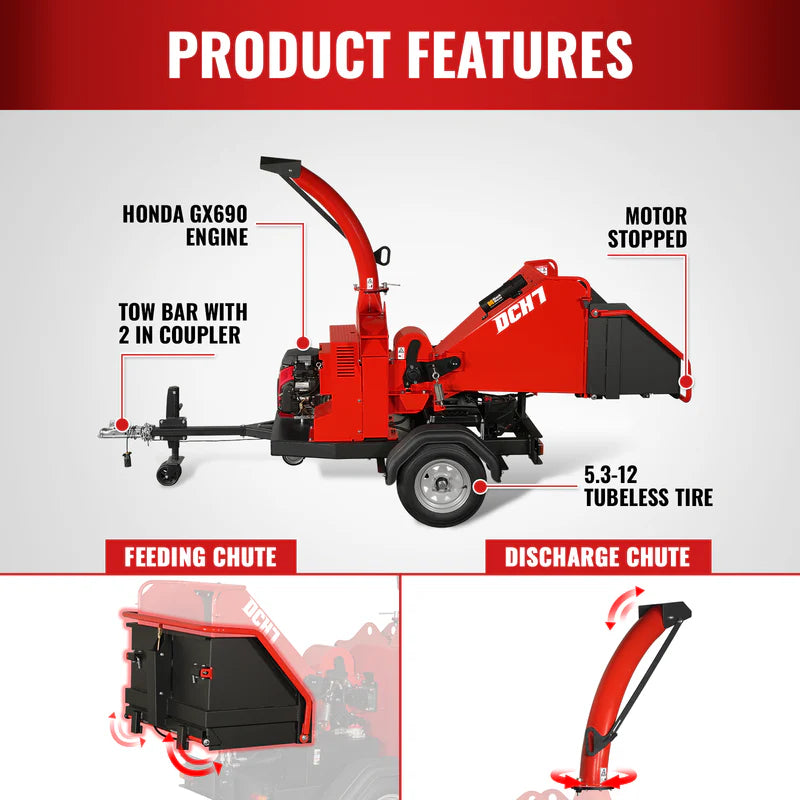

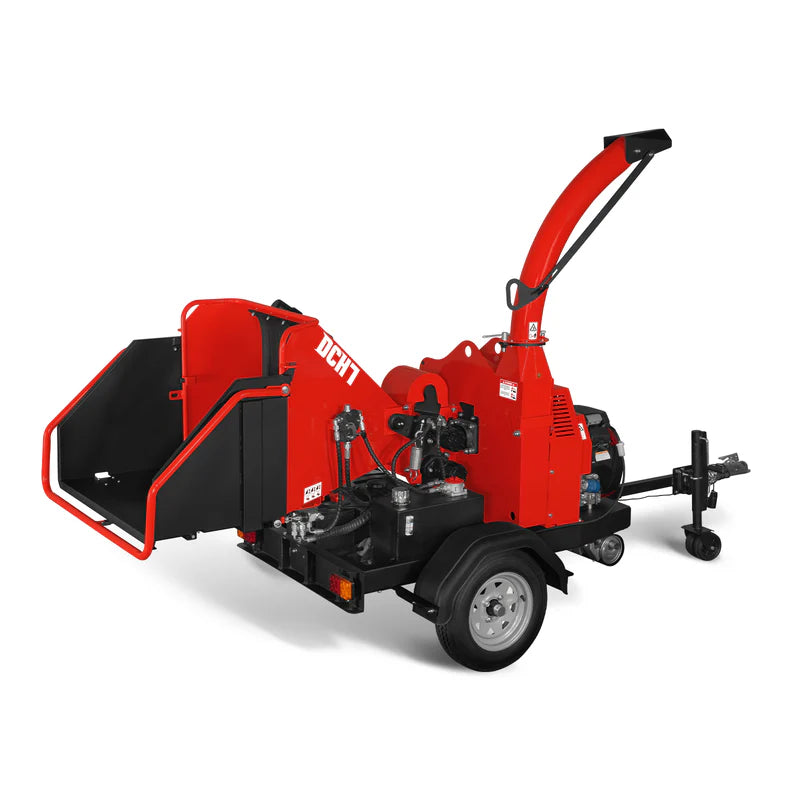

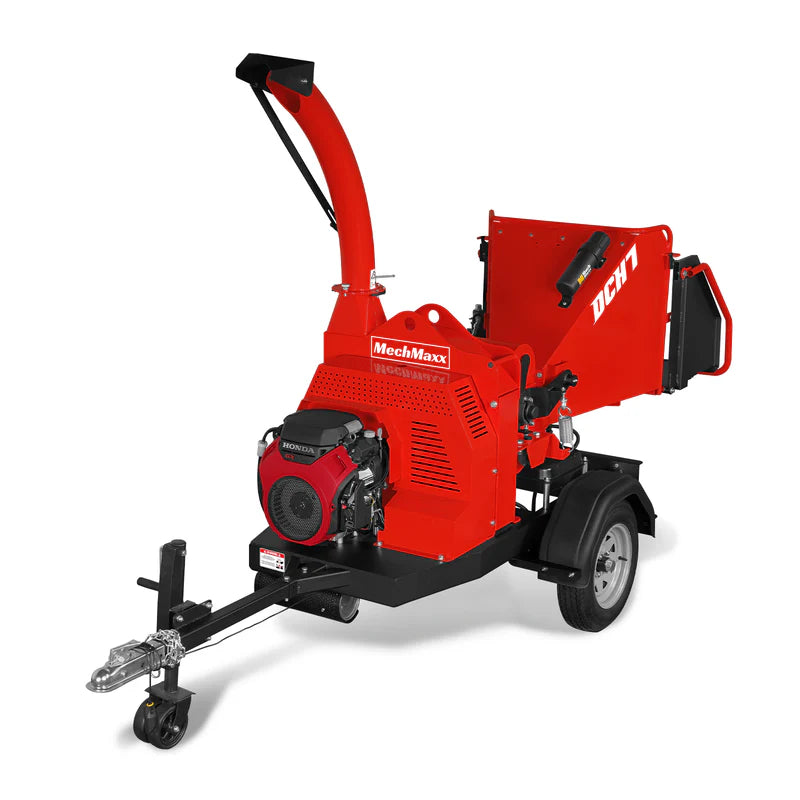

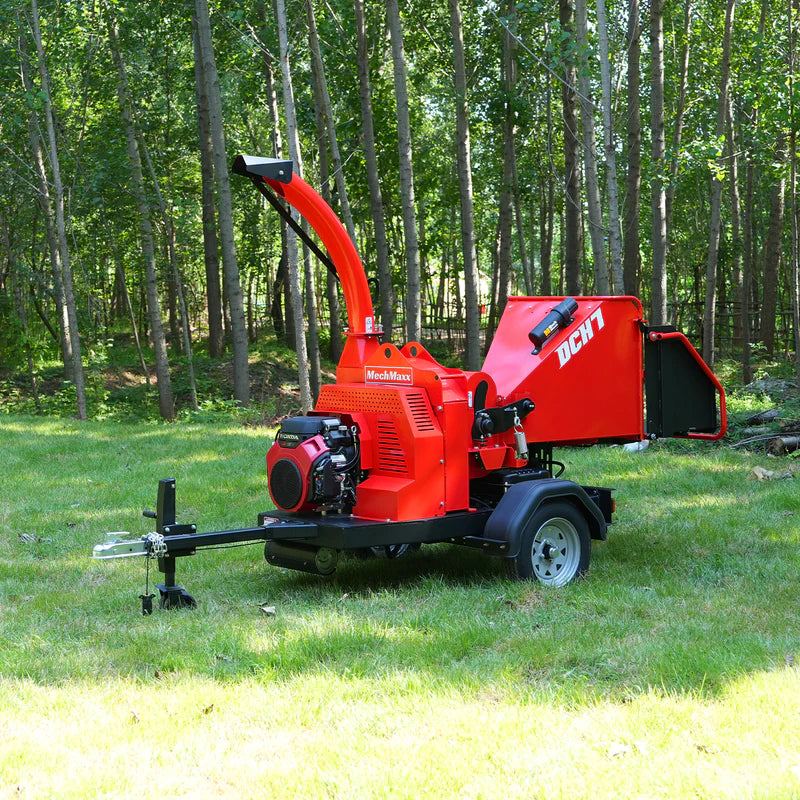

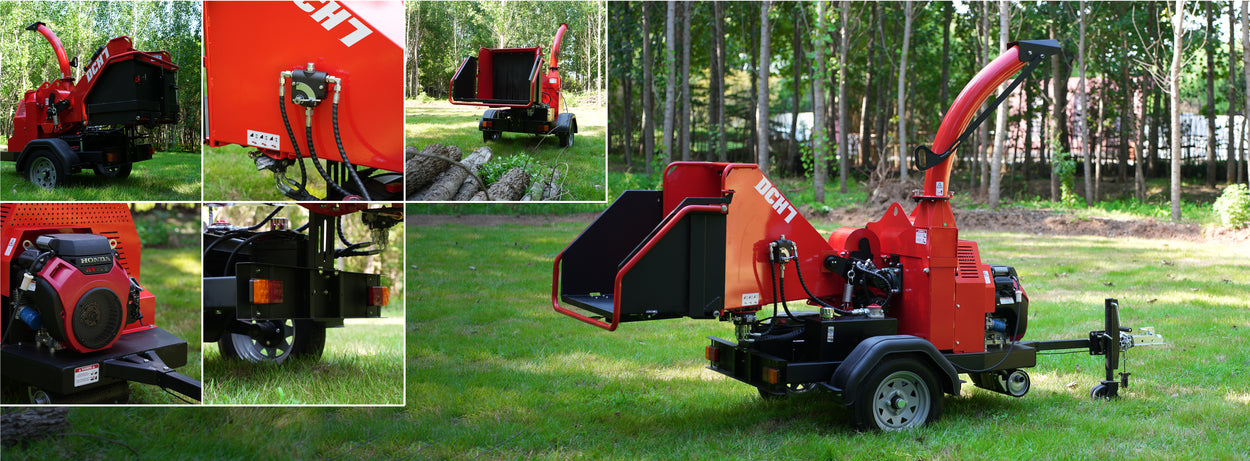

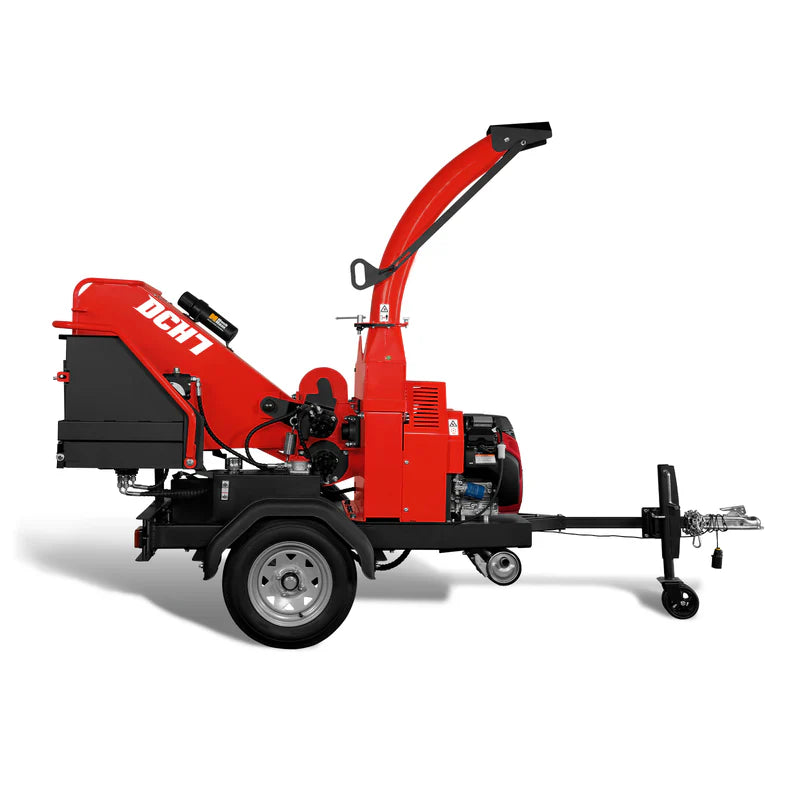

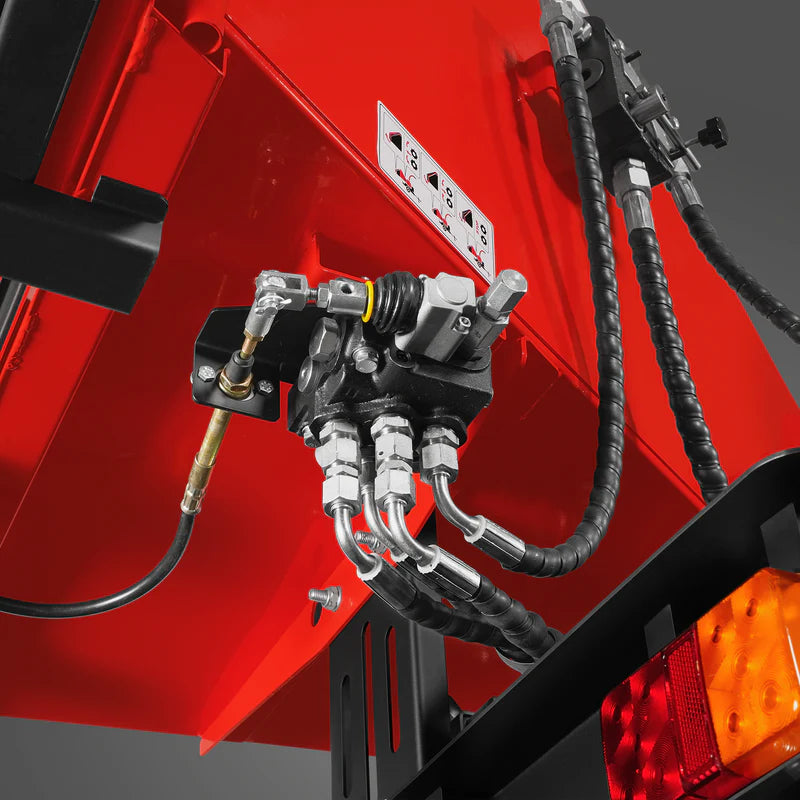

  • MechMaxx 7" Disc Brush Chipper, Highway Towable with torsion axles and Lights, Electric Start, Dual Variable Speed Hydraulic Infeed
  • This 7" chipper can stand up to commercial use. Great for Landscapers, Small Tree Service Jobs, Homeowners, Orchards, Rental Yards.
  • Gasoline/Petrol: Clean, fresh, unleaded gasoline
  • Applicable hydraulic oil type: ISO VG 46 hydraulic oil.
  • Engine oil type: 10W-30
  • *Shipped with NO fluids. Must add own fluid

Specifications

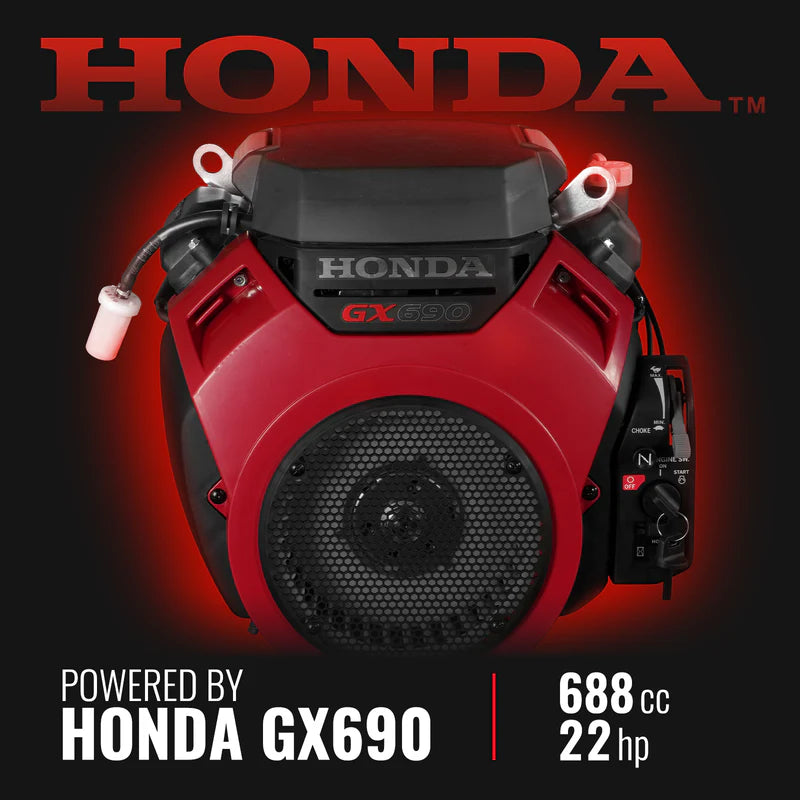

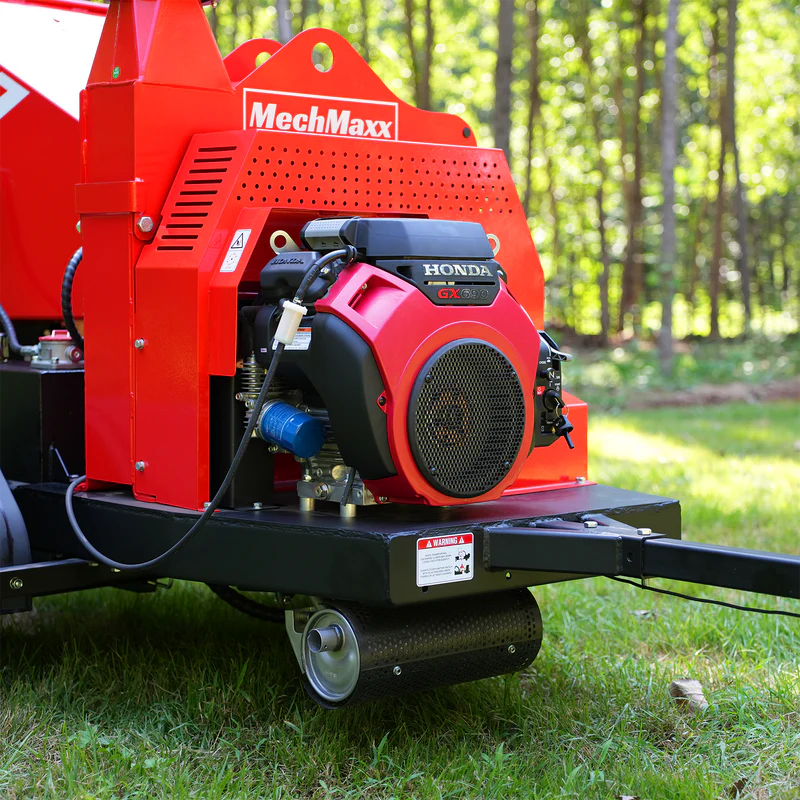

Engine  HONDA GX690 Blade 2 x Blades; 1 x Anvil
Engine Type Air Cooled 4-Stroke OHV Petrol Engine,90° V-Twin Design, Horizontal Shaft Blade Material A8 (5Cr8MoVSi)
Displacement 688 cc;22 HP Blades Type Double Edge Blade
Rated Power 13.0 kw / 3600 RPM Flywheel System Open Top Flywheel 26 in x 1 in Twin
Max. Net Torque 48.3 N·m / 2500 RPM Discharge Chute 360 Degree Rotating

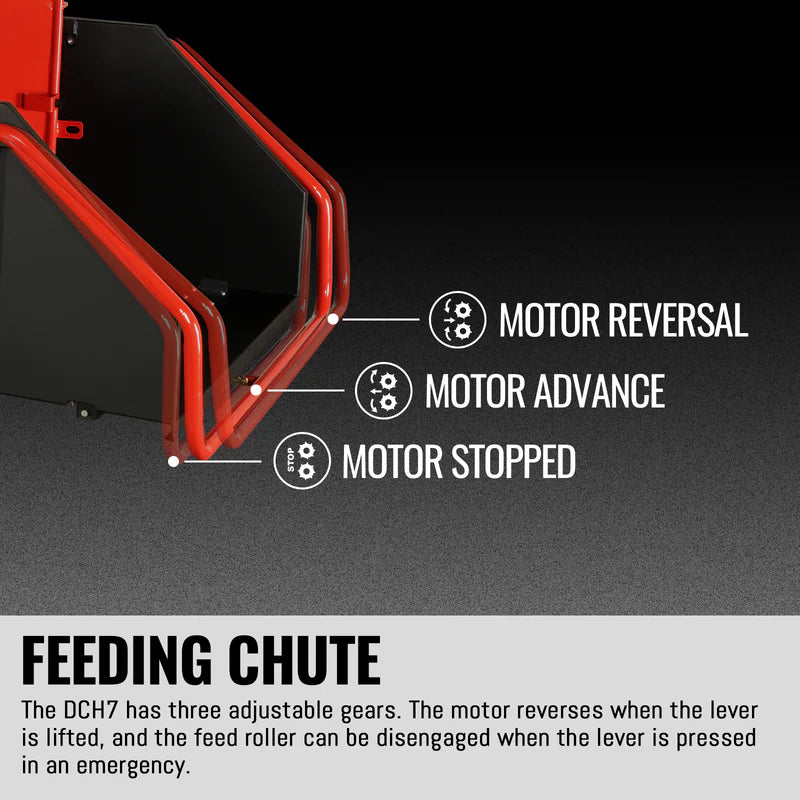

Fuel Capacity 3.17 gal Emergency Stop Stop Bar
Recommended Oil SAE 10W-30 Classification SE or Higher Towing Length Tow Bar With 2 in Coupler

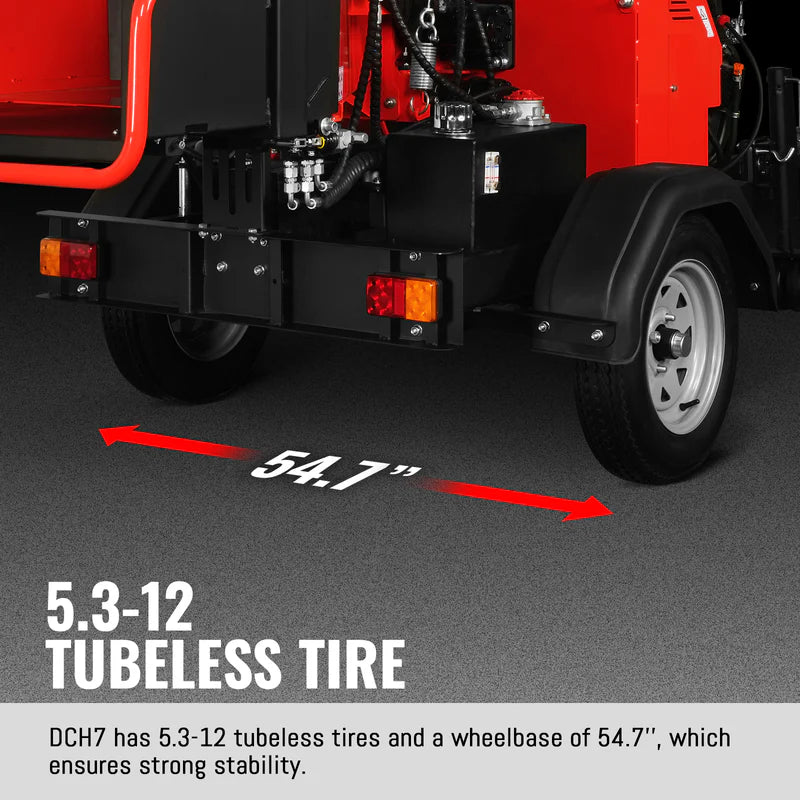

Hydraulic Tank 6.87 gal Wheel 5.3-12 Tubeless
Starting Electric Starting Wheelbase 52.5 in
Battery 36Ah 12V Lead-Acid Battery Axle Damping Torsion Axle
Ignition System CDI Max. Speed 50 mph
Governor System Mechanical Centrifugal Type Chassis Channel Steel Welded Frame
Belt 2 x V-Belts Package Method Iron Fram With Black Film
Belts Material Kevlar Weight (N.W./G.W.) 1389 / 1587 lbs

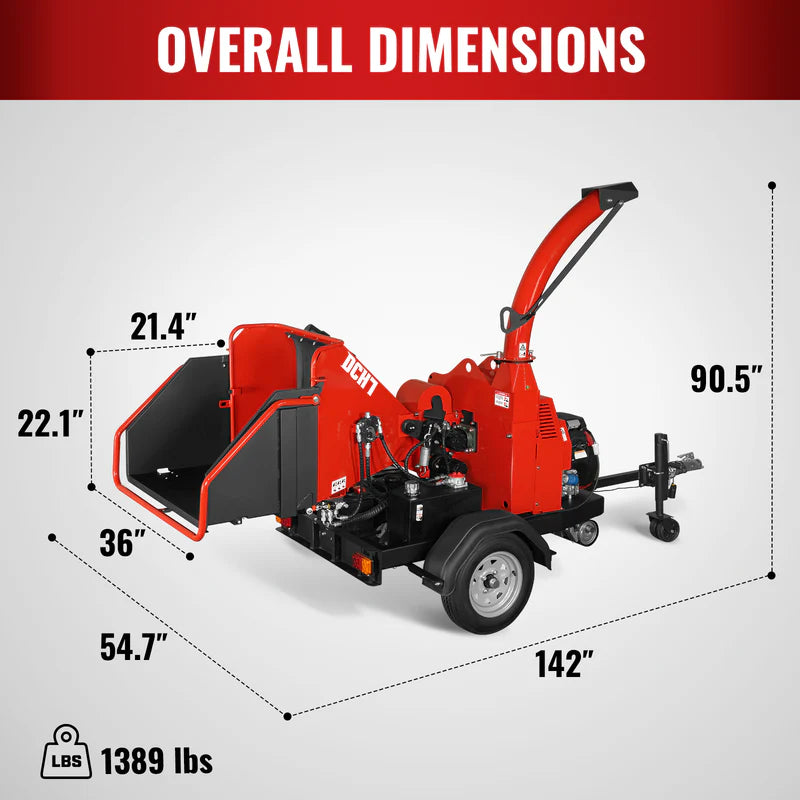

Clutch Centrifugal Clutch Product Size (L*W*H) 137 x 55 x 90 in
Cutting Method Disc Packing Size (L*W*H) 87 x 46 x 51 in

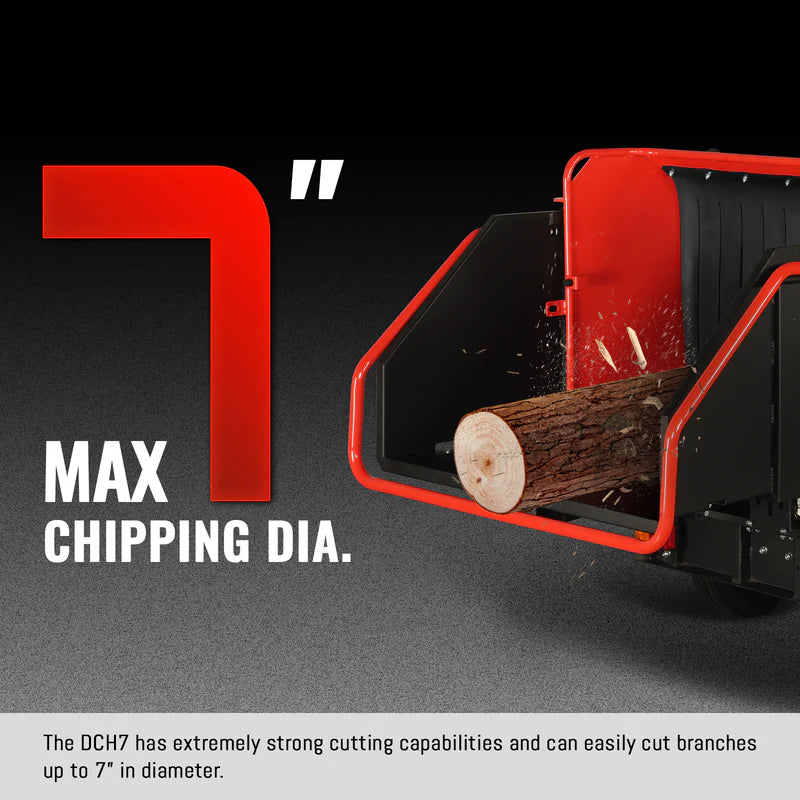

Max. Chipping Dia. 7 in Machine Warranty 2 Years
Feed Roller 7.5 in x 6.5 in Engine Warranty 2 Years



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
