Trimming and maintaining banks, roadsides, ditches, and shorelines can be challenging. Thankfully, our bank mowers are built to efficiently handle overgrown grass on ditches and embankments.
Powered by a 65HP CMR gearbox from Italy for consistent performance, Equipped with forged hammer flail blades, Includes an adjustable rear opening panel for convenient maintenance accessthese mowers can cut and mulch material up to 6" in diameter in one pass. The finely shredded cuttings act as a fast-decomposing, micronutrient-rich fertilizer, nourishing your land. The trimmings drop directly to the ground, reducing debris. Plus, an adjustable rear roller provides precise cutting height control, ensuring a clean, even cut on uneven terrain.
The 86" model, built for Category 2 tractors, pivots 90 degrees up and 55 degrees down, delivering a precise, clean cut every time. PTO shaft w/safety pin; dynamically balance tested for safe and reliable operation
| Power Required |
90-120 Hp |
Rotor Diameter |
5.5 in |
| Working Width |
86 in |
Rotor Thickness |
0.5 in |
| Overall Width |
101 in |
Rear Roller Diameter |
6 in |
| Blade Ground Clearance (Four Gears) |
0.2-0.9-1.7-2.4 in |
Rear Roller Thickness |
0.25 in |
| Max. Cutting Diameter |
Depends On The Type Of Grass |
PTO Shaft Speed |
540 rpm |
| Offset Distance from The Center (Maximum) |
130 in |
Deck Thickness |
2 in |
| Tilt-Up Angle |
90° |
Side Plate Thickness |
0.25 in |
| Tilt-Down Angle |
55° |
Driveline Shaft Length |
T6-LF-73 With Shear Bolt ; 73in-126in |
| Number Of Blades |
20 |
Spline End |
1.375in Z6 |
| Number of Belts |
4 |
3-Point Hitch |
CAT 2 |
| Blade Type |
Hammer |

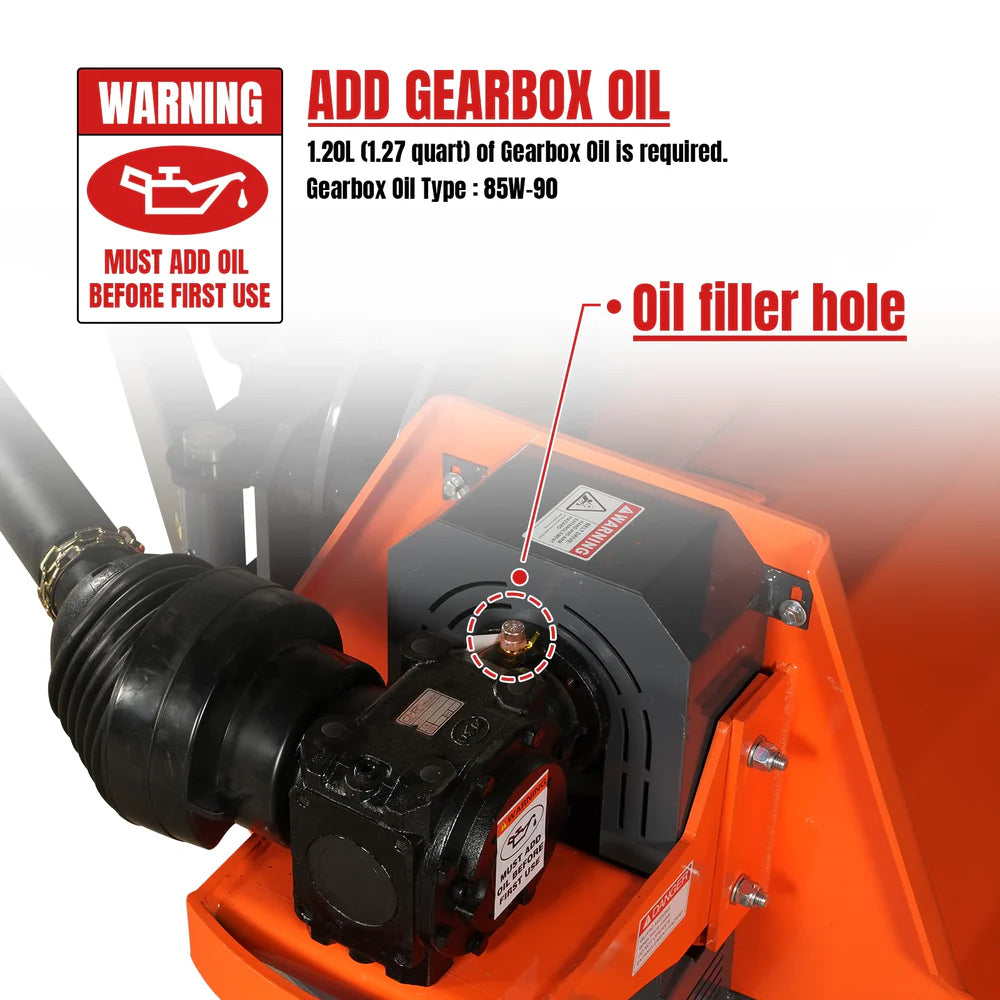

Gearbox 0il Type |
85W-90 |
| Blade Weight |
2.6 lbs |
Finish |
Powder Coating |
| Blade Material |
Cast Steel |
Warranty |
1 Year |
| Belt Adjustment |
Bolt Tightening |
Shipping Box |
109 X 41 X 31in |
| Working Efficiency450 cu.ft./Hr. |
450 cu.ft./Hr. |
Weight (N.W./G.W.) |
1910 /2121 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
