Product Description

Product Overview

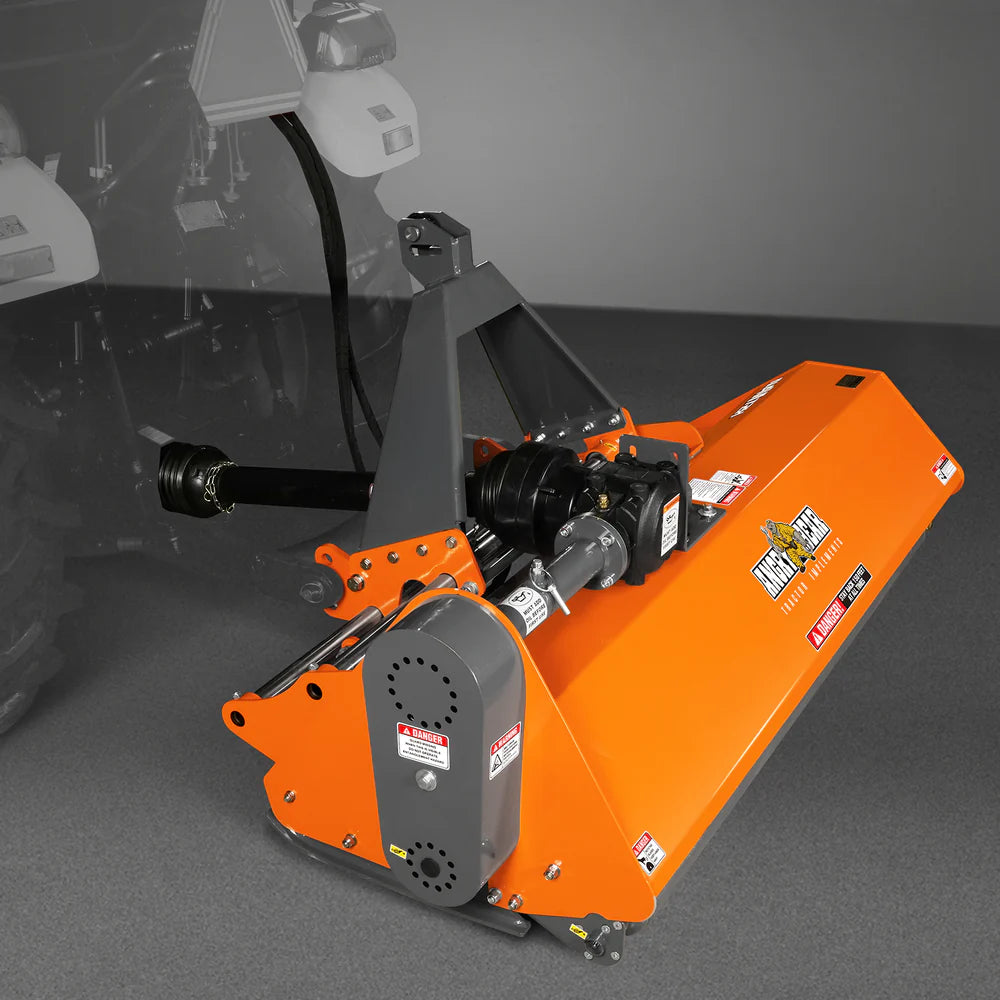

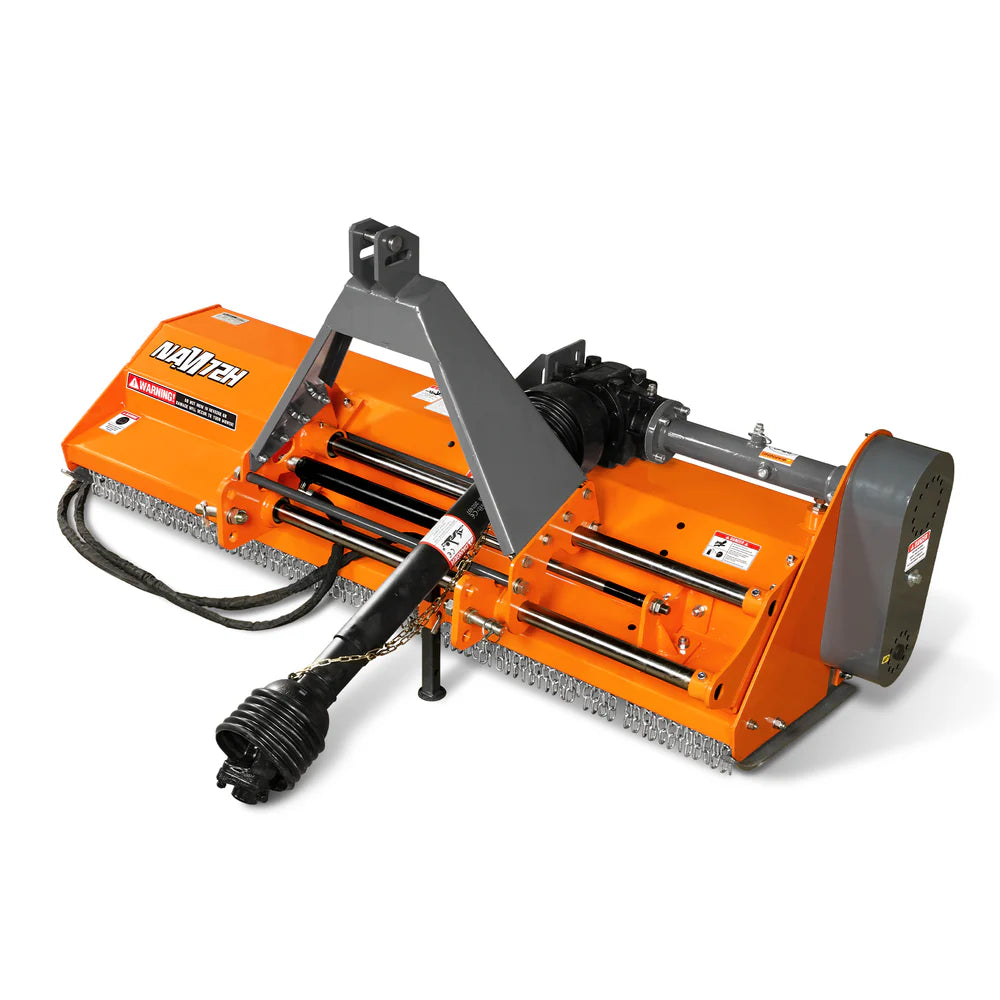

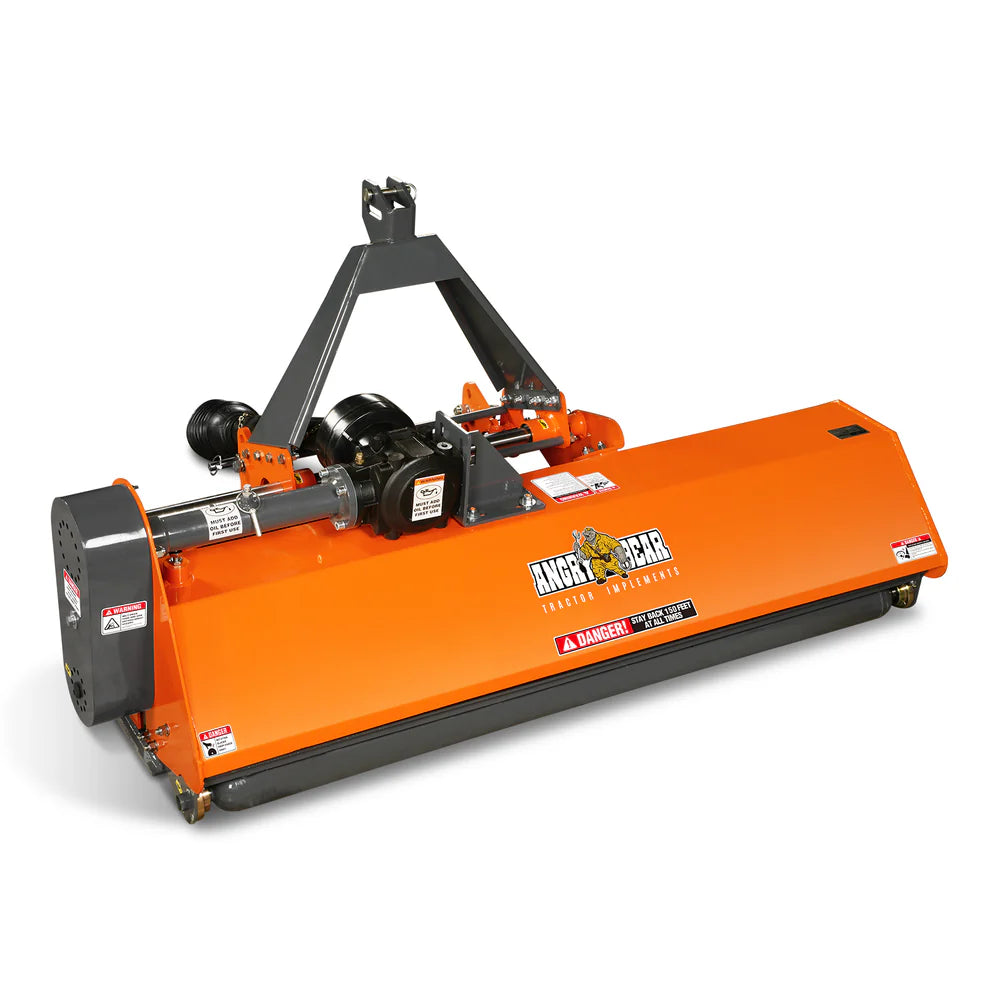

  • It can save time and cost-effectively cut plants in larger areas. It has 16in of side shift capability to support working around perimeters, fence lines, tree wells, etc.

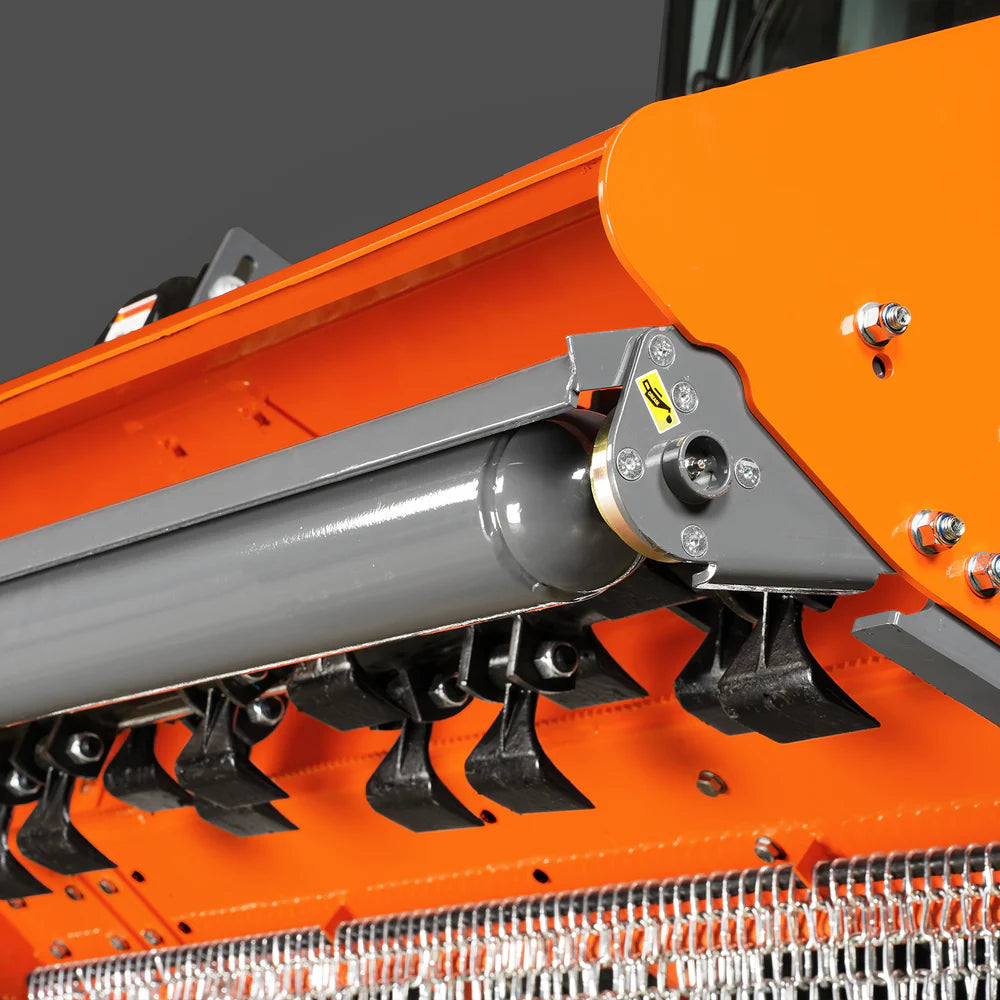

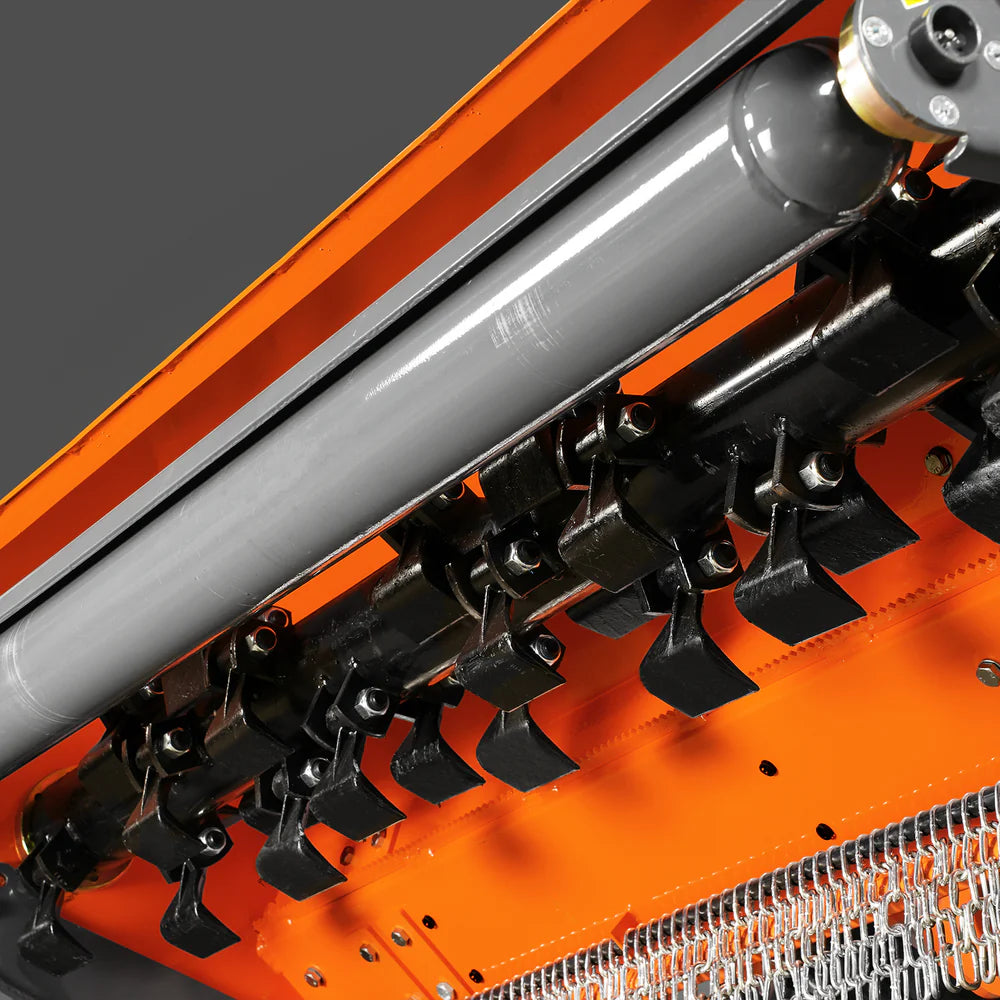

  • The attachment has a forged flail hammer to help the mower push through dense debris.

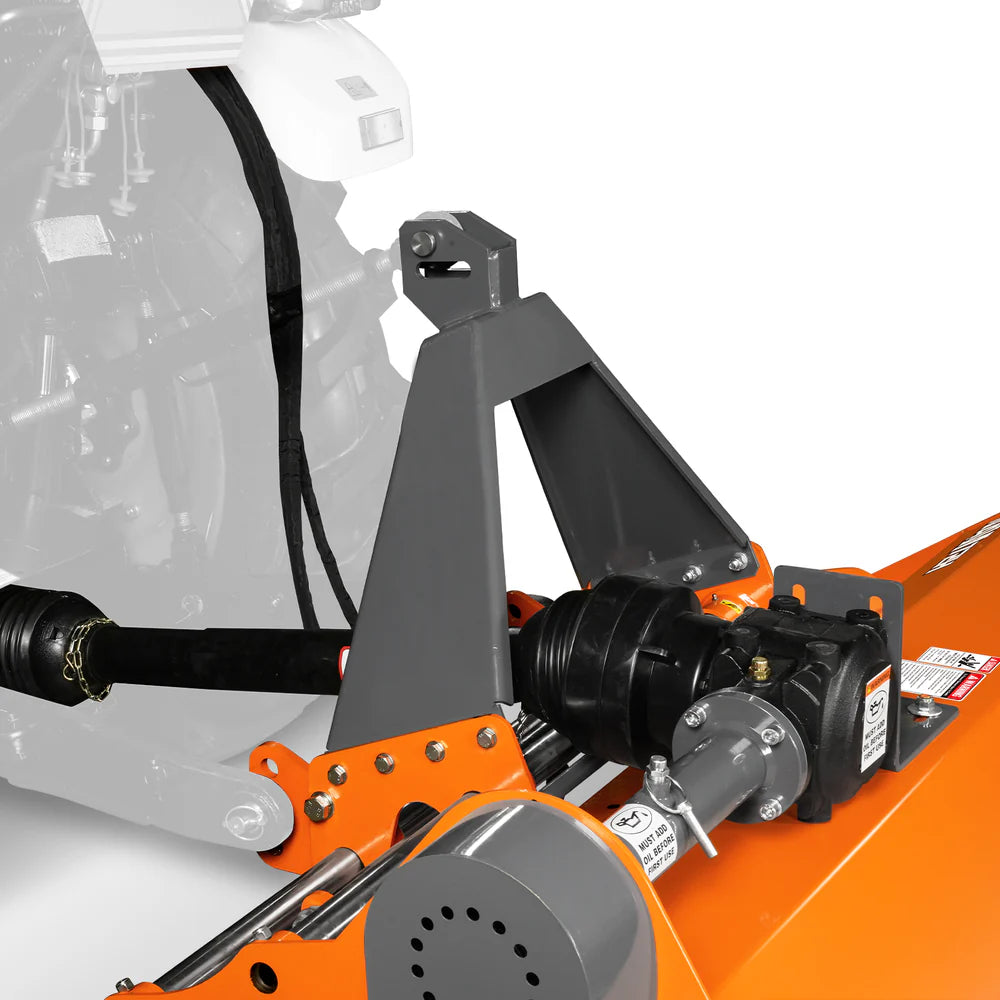

  • The included PTO drive shaft easily connects to your tractor and the belt drive allows for efficient power transfer.
  • Offset category 1, 3 point knot
  • It is recommended for 45-85HP tractors, capable of covering material up to 3in diameter.
  • Front safety chains keep out debris, sealed tapered roller bearings, and have brackets for easy storage when not in use.



Specifications

Engine Power Required 45-85HP Number Of Belts 4
Working Width 72in Belt Size V Belt 17 X 991
Hydraulic Side Shift 8in(Left Or Right) Drive Belt Tensioner Yes
Overall Width 78in Deck Thickness 0.16in
Blade Ground Clearance 0.6in-2in  Side Plate Thickness 0.25in
Max. Cutting Diameter

Depends OThe Type OGrass

PTO Shaft RPM 540 RPM
Number Of Blades 28 Driveline Shaft Length T6-LF-39" with shear bolt ;39"-49"
Blade Type Hammer Spline End 1 3/8" Z6
Blade Weight 1.8lbs 3-Point Hitch CAT 1

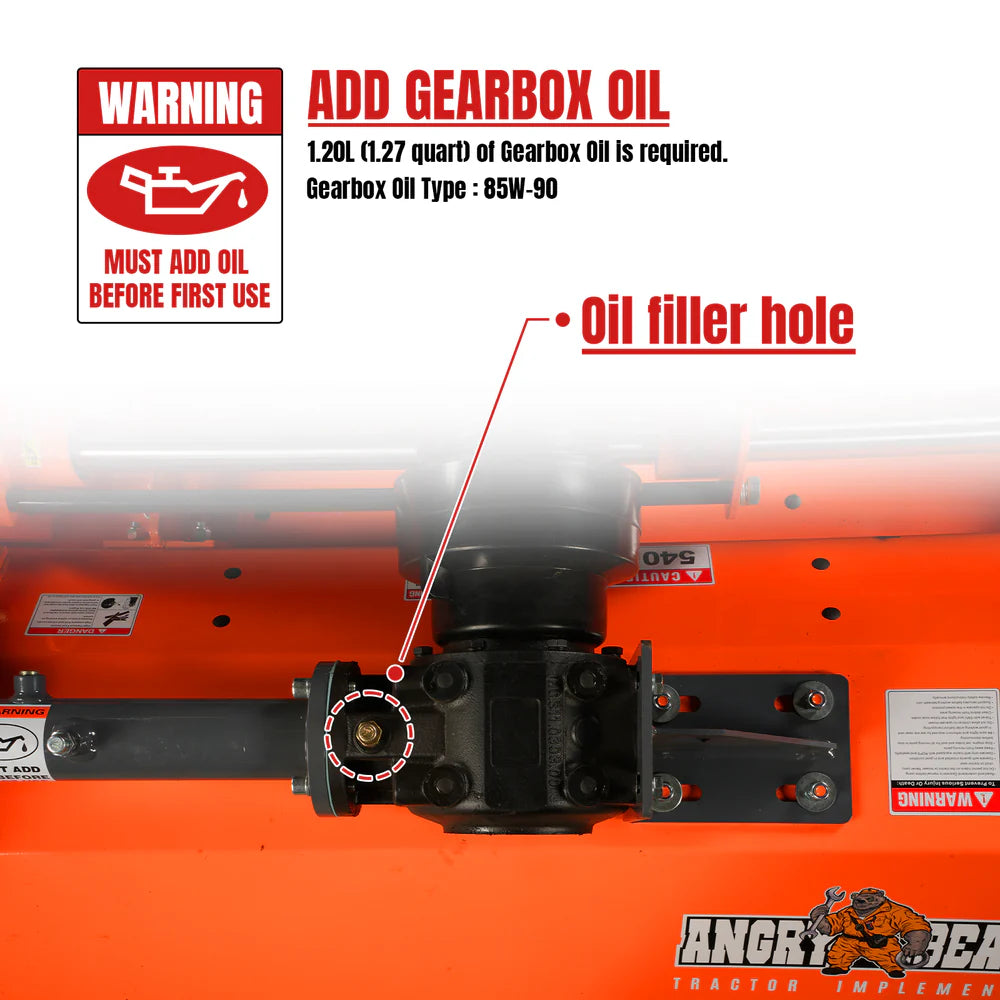

Blade (Tines)Material Cast Steel Gearbox Oil Type 85W-90
Rotor Bearing SKF bearing Dimensions (L x W x H)  82 x 34 x 26in
Roller Diameter 4in Finsh  Powder Coat Paint  Galvanized Steel
Rotor Diameter 5in Warranty 1 year
Rotor Swing Diameter 14in Weight (N.W./G.W.) 745/871 lbs
Drive Type Belt drive

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
