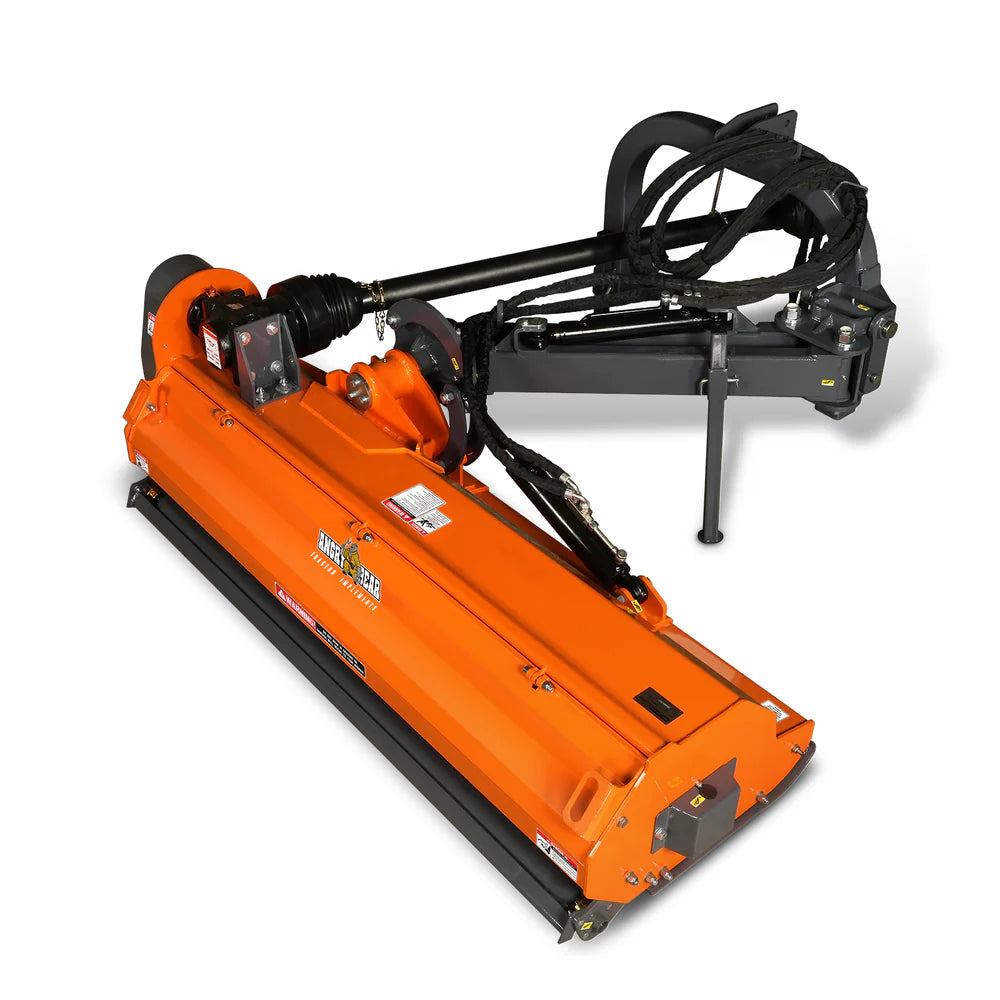

MechMaxx 72” Heavy Duty Offset Ditch Bank Flail Mower Italy CMR Gearbox, 90° Tilt, 70-100 HP Tractor, 3-Point Hitch, PTO Driven, VAM72
Our bank mowers are built to efficiently handle overgrown grass on ditches and embankments.
Powered by a 65HP CMR gearbox from Italy for consistent performance, Equipped with forged hammer flail blades, Includes an adjustable rear opening panel for convenient maintenance accessthese mowers can cut and mulch material up to 3" in diameter in one pass. The finely shredded cuttings act as a fast-decomposing, micronutrient-rich fertilizer, nourishing your land. The trimmings drop directly to the ground, reducing debris. Plus, an adjustable rear roller provides precise cutting height control, ensuring a clean, even cut on uneven terrain.

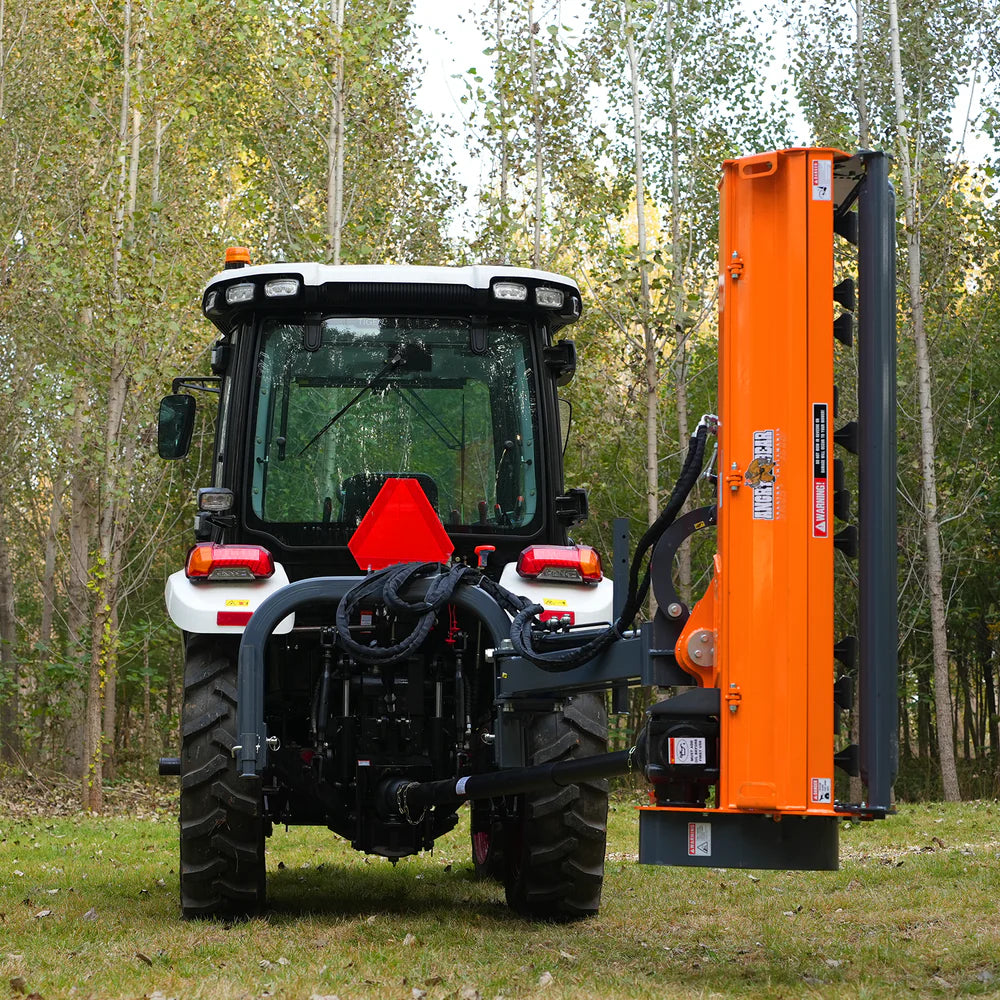

The 72" model, built for Category 2 tractors, pivots 90 degrees up and 55 degrees down, delivering a precise, clean cut every time. PTO shaft w/safety pin; dynamically balance tested for safe and reliable operation
Specifications
| Engine Power Required | 70-100 Hp | Belt Adjustment | Bolt Tightening |
| Working Width | 72in | Working Efficiency | 450 cu.ft./Hr. |
| Overall Width | 79 in | PTO Shaft Speed | 540 rpm |
| Blade Ground Clearance (Four Gears) | 0.6-1.4-2.2-3 in | Deck Thickness | 2 in |
| Max. Cutting Diameter |
Depends On The Type Of Grass |
Side Plate Thickness | 0.25 in |
| Offset Distance from The Center (Maximum) | 90 in | Driveline Shaft Length | T5-LF-63 With Shear Bolt ; 63in-106in |
| Tilt-Up Angle | 90° | Spline End | 1.375in Z6 |
| Tilt-Down Angle | 55° | 3-Point Hitch | CAT 2 |

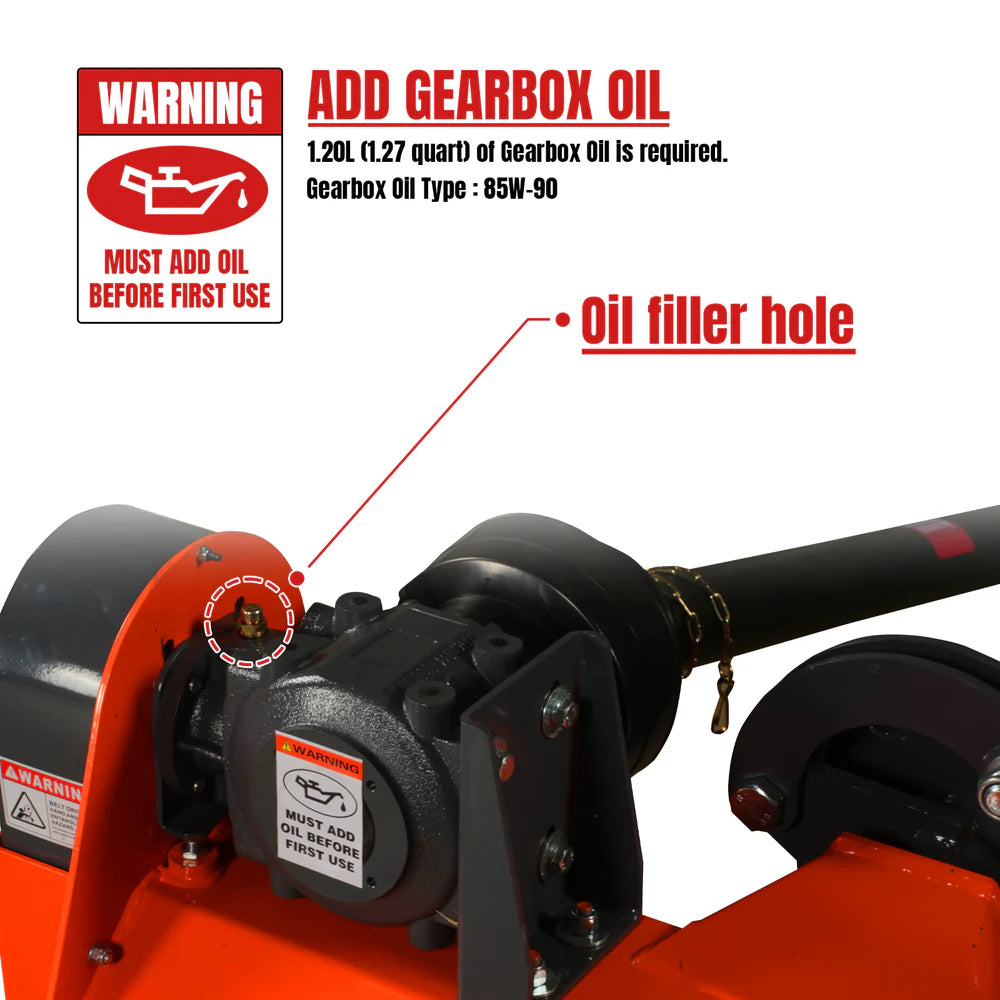

| Number Of Blades | 18 | Gearbox 0il Type | 85W-90 |
| Number of Belts | 4 | Finish | Powder Coating |
| Blade Type | Hammer | Warranty | 1 Year |
| Blade Weight | 1.8 lbs | Shipping Box | 90x39x31 in |
| Blade Material | Cast Steel | Weight (N.W./G.W.) | 1235/1336 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
