Product Description

Product Overview

  • This mower will save time and economically cut plants in larger areas.
  • The attachment has a flail hammer to help the mower push through dense debris.

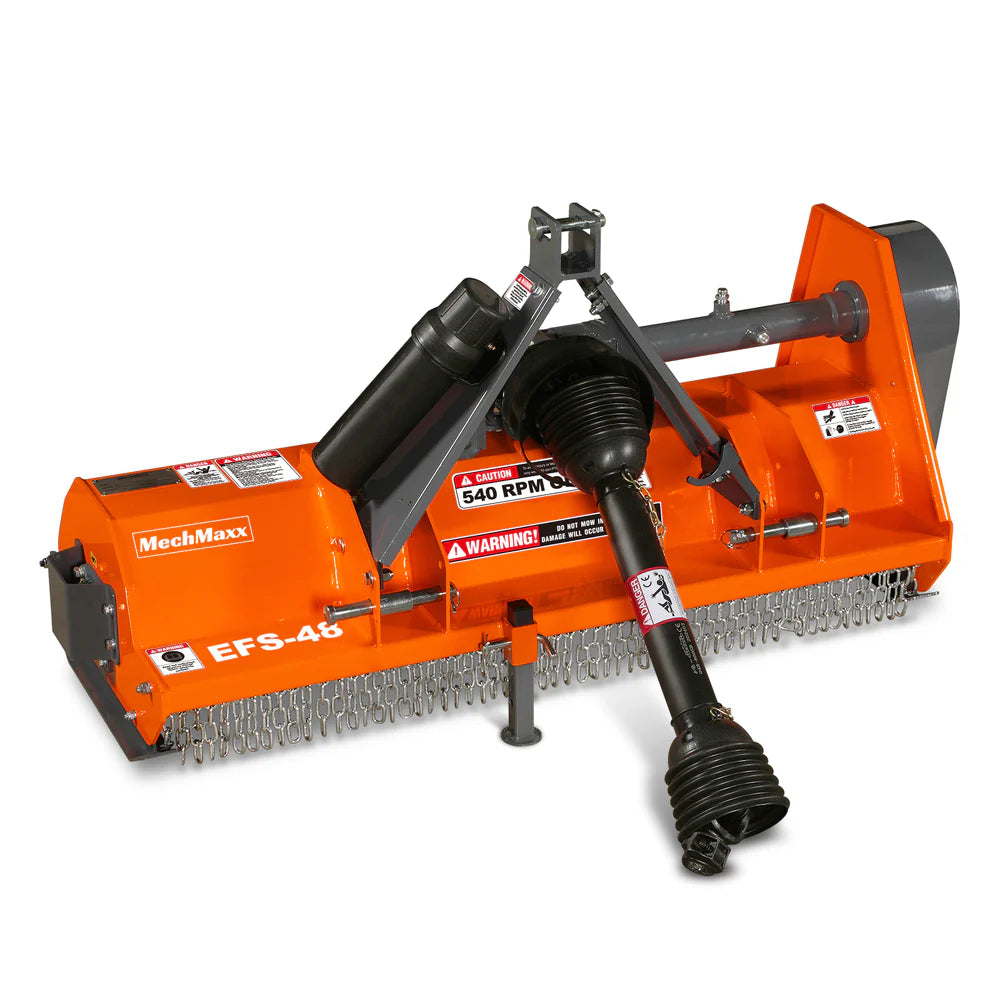

  • The included PTO drive shaft easily connects to your tractor and the belt drive allows for efficient power transfer.

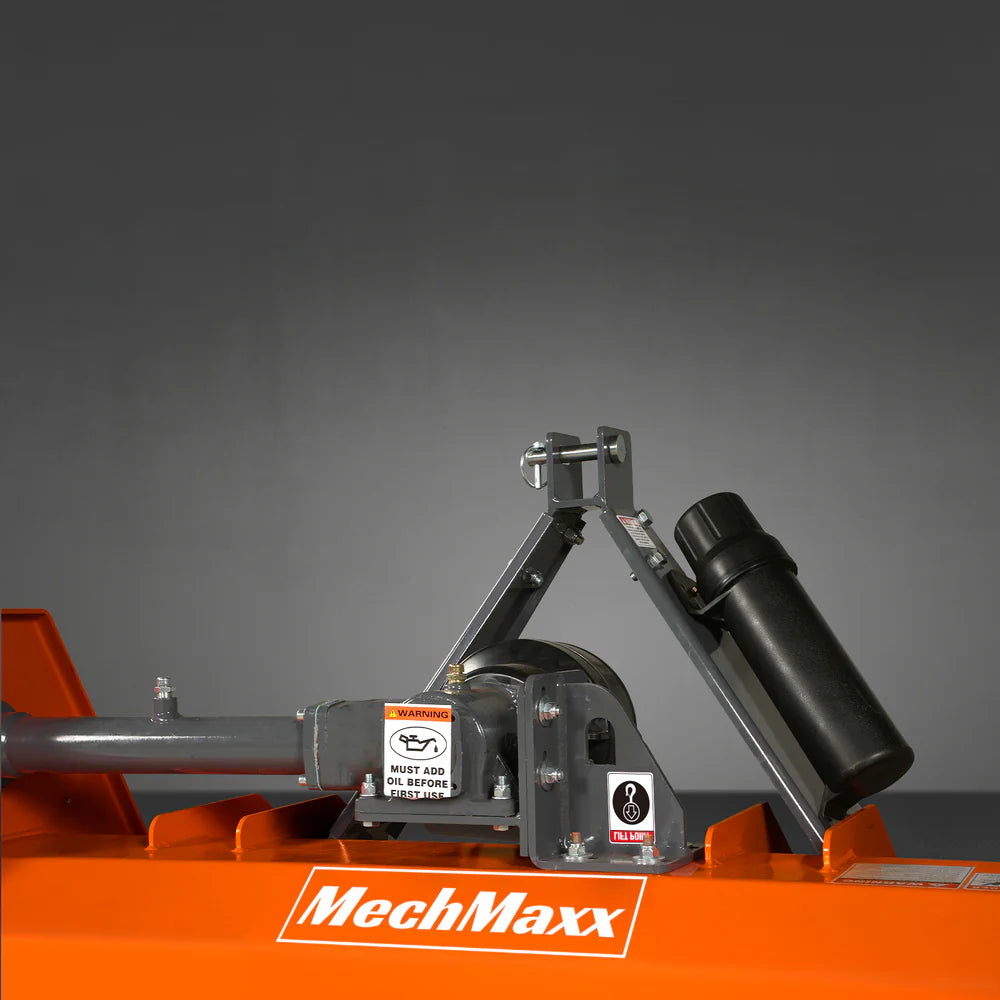

  • Offset category 1, 3 point knot
  • It is recommended for 15-35HP tractors.

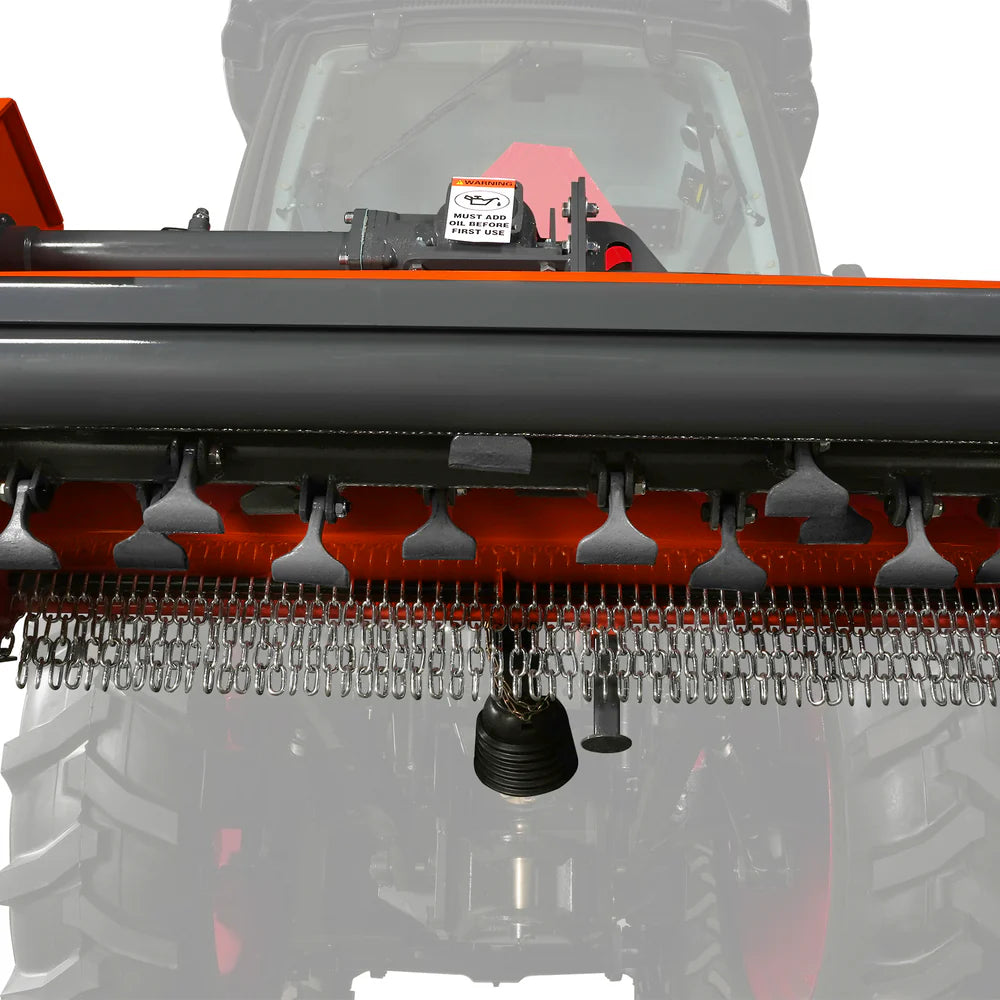

  • Front safety chains keep out debris, sealed tapered roller bearings, and have brackets for easy storage when not in use.

Specifications

Engine Power Required 15-35HP Drive Type Belt drive
Working Width 48in Number Of Belts 3
Overall Width 56in Belt Size V Belt 13X1041
Blade Ground Clearance 0.6in-1.8in  Drive Belt Tensioner yes
Max. Cutting Diameter

Depends OThe Type OGrass

Deck Material 0.16in
Number Of Blades 20 Side Plate Material 0.24in
Blade Type Hammer PTO Shaft RPM 540 RPM
Size Of Blades 3.5 X 3 X 1.6in Driveline Shaft Length T5-LF-31 with shear bolt 31in- 43in
Blade Weight 0.8lbs Spline End 1.375in   z6
Blade (Tines)Material Cast Steel 3-Point Hitch CAT 1
Rotor Bearing SKF bearing Gearbox Oil Type 85W-90
Rotor Diameter 3in Dimensions (L x W x H)  57 X 30 X 28in
Rotor Swing Diameter 11in Finish  Powder Coating
Rotor Thickness 0.3in Warranty 1 year
Rotor Shaft Speed 2958 rpm Weight (N.W./G.W.) 379/470 lbs
Blade Speed 142 ft/s

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
