Product Description

Product Overview

  • Two speed travelling speed: low speed to make sure the precision in operation and high speed at 4.4km/h allows for quicker travel around site.

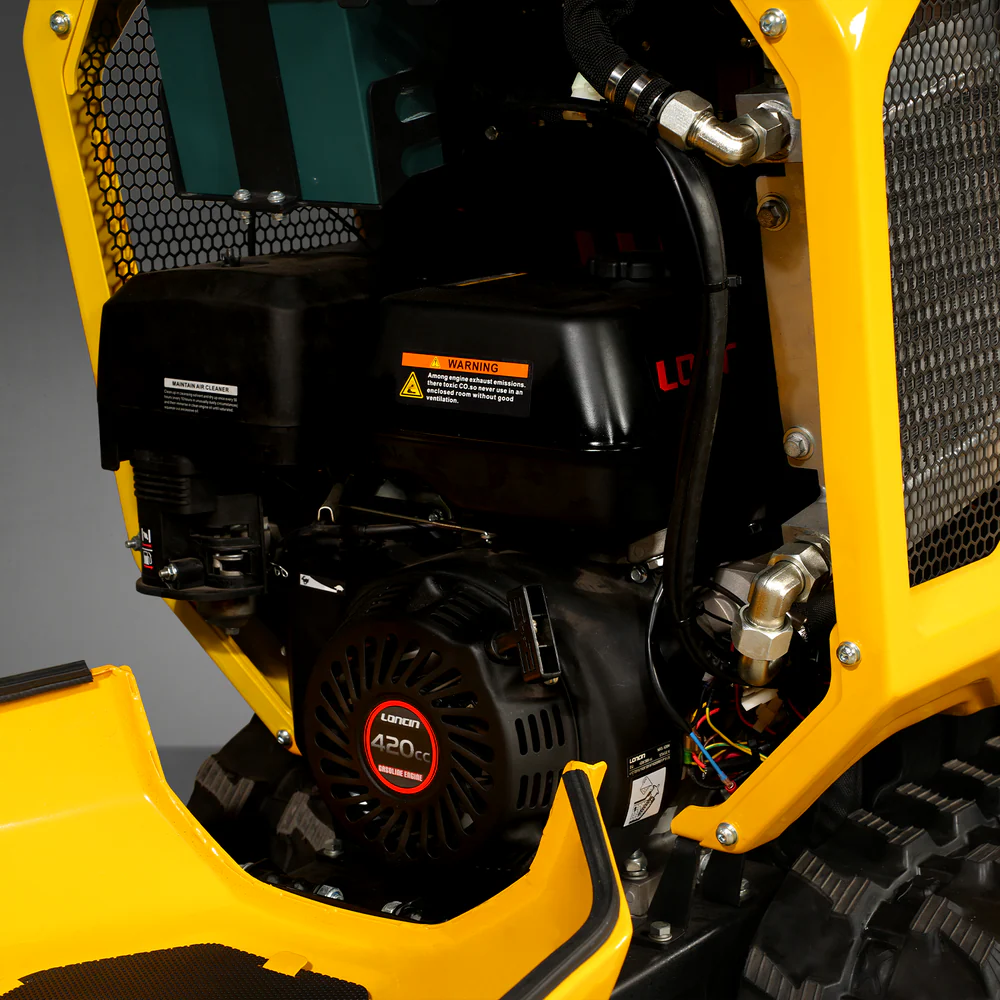

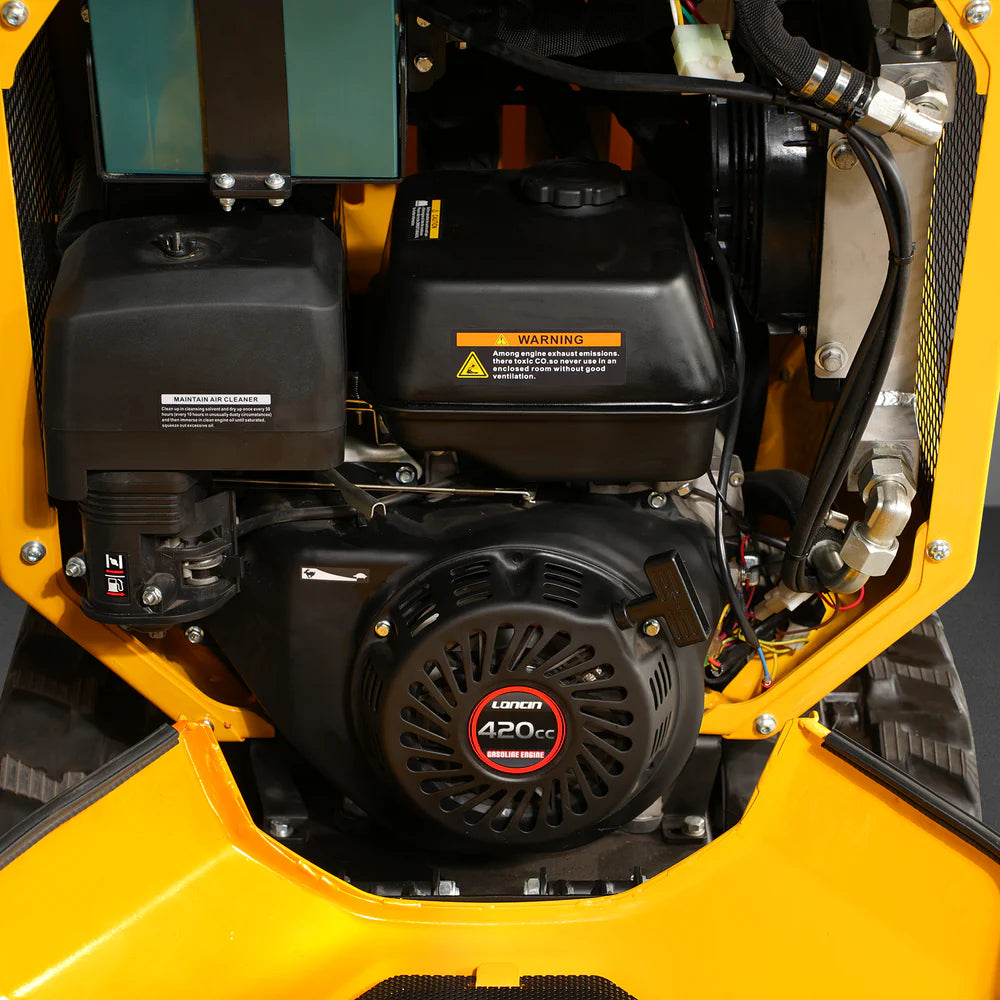

  • 15hp gasoline engine provides more power for the machine and enhance the work performance in dumping and tracking.
  • Machine width at 29in allows you to fit through any standard doorway or gate.

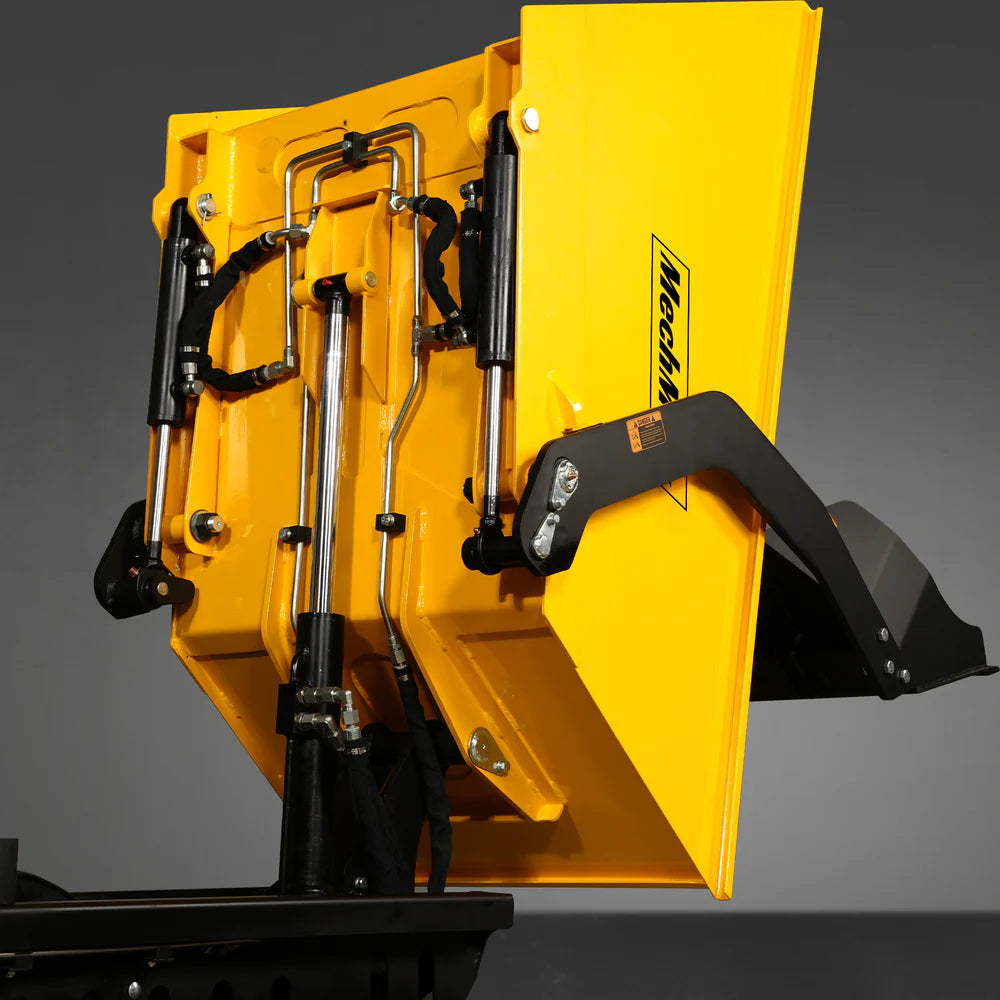

  • 1800lbs loading capacity, fully Hydraulic system, Exclusive BONDIOLI&PAVESI hydraulic control valve for T80.
  • Triple gear pump, 30% max gradeability, 26.5Nm/2500rpm max torque

Specifications

Engine LONCIN G420F(D) Working Type Self Loading and Unloading
Engine Type Single Cylinder, 4 Stroke, Air Cooled, OHV Transmission Hydrostatic Track Drive System
Engine Displacement 420 cc Parking Brake Yes
Horsepower 15 HP Operator Platform Stand-On
Engine Power 9.0 kw / 3600 RPM Max.Travel Speed 0-2.73 mph
Start E-Start Min. Travel Speed 0-1.37 mph
Maximum Torque 26.5 N·m / 2500 RPM Max. Gradeability 0.3
Loading Capacity 1800 lbs Ground Pressure (with Operator) 2.9 Psi (20 Kpa)
Wheelbase 39 in Hydraulic Pressure 2900 Psi (20 Mpa)
Bucket Capacity 10.6 cu.ft. Hydraulic Tank Capacity 6 gal
Track Width 7.09 in Fuel Tank Capacity 1.72 gal
Track Length 51.2 in Battery Capacity 12 V 20 Ah
Track Height 11.8 in Pump Type Triple Gear Pump
Shovel Height 63.8 in Overall Length (W/O Shovel) 80 in
Dump Front End Height 33.3 in Overall Length with Shovel 108 in
Dump Back End Height 43.3 in Overall Height 48 in
Dump Width 24.3 in Overall Width 29 in
Console Height 40.2 in Weight (N.W / G.W) 1253 / 1385 lbs
Platform Ground Clearance 10.4 in



WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
