IMERUSA KOINE 3.1 Continuous Pump

Regular price $17,599.00
Sale price $17,599.00 Regular price
Unit price
Product Description

Continuous Operation With The Extra Benefit Of Wet Or Dry Mode


The Koine 3.1 is designed to be a continuous pump for feeding bags of dry material such as underlayment, mortar or grouts. But when you need to mix the material with lots of additives which require longer mixing times then switch to wet mode, use a seperate mixer such as the Mix 120 and pour it into the hopper to use it as just a pump. This gives the flexibility and versatility to be used for any application. Rinse out the hopper when finished.
TECHNICAL SPECIFICATIONS
KOINE 3.1
Model #
1106351
Power Supply
240 V 1Ø
Max Installed Power
4.5 HP
Mixer Motor Power
3 HP
Electric Pump Motor Power
.6 HP
Flow Rate - Dry Mode
1/4 - 3/5 cu ft / min
Flow Rate - Wet Mode
.08 - 3/5 cu ft / min
Hopper Volume
2.65 cu ft
Loading Height
39"
Dimension w/l/h
26 in x 42 in x 59 in
Weight
350 lbs

Standard Equipment

• D8 1.5 stator and rotor
• Material delivery pressure gauge

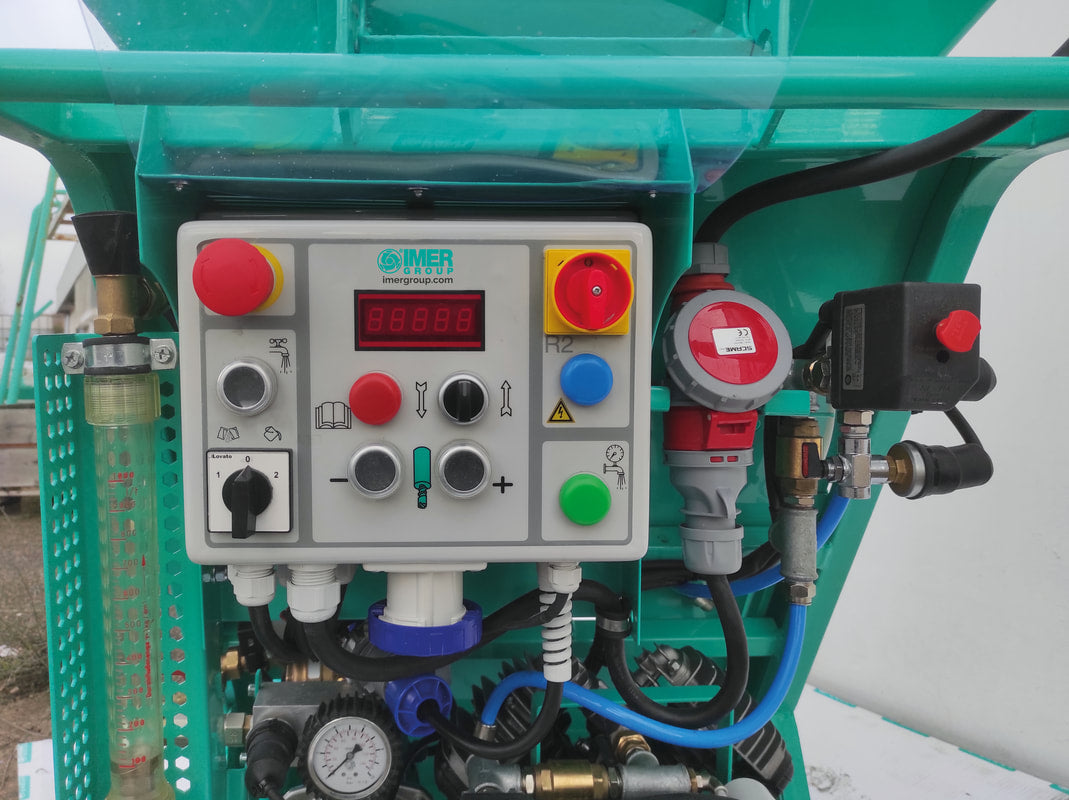

• Control panel w/ exclusive IMER speed inverter

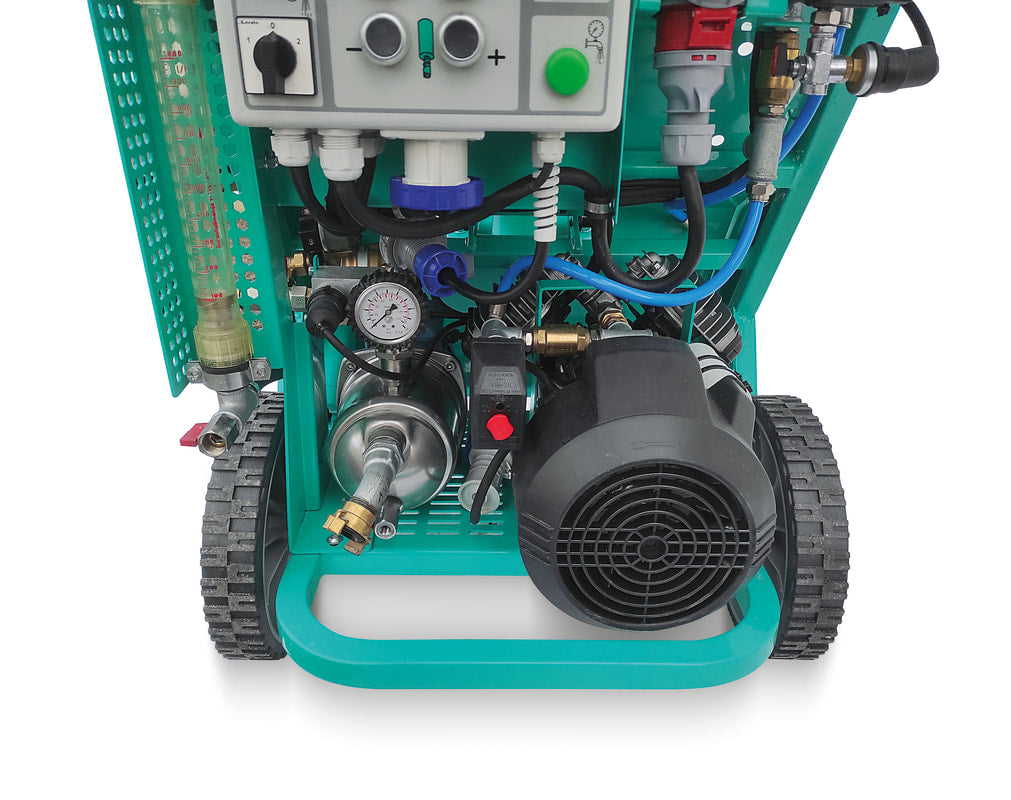

• Self-priming water booster pump
• Water system with flow meter and discharge valves
• 66’ of power cord
• 66’ of water hose Ø 19 mm (3/4”)
• 50’ of material hose Ø 25 mm (1”)
• Hose cleaning kit with toolbox
• Mixing chamber clean out tool
• Air compressor ready
