IMERUSA GERRIS 800 Gas Tracked Concrete Placement Crawler
Regular price
$127,999.00
Sale price
$127,999.00
Regular price
Unit price
Product Description
Place Concrete Easily and Efficiently

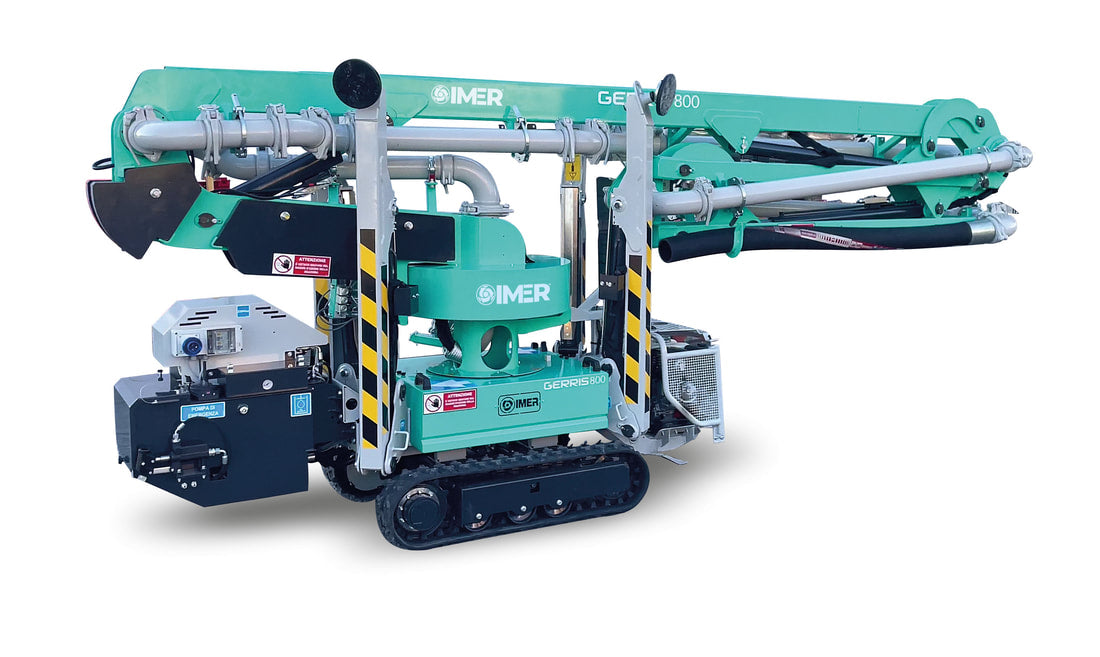

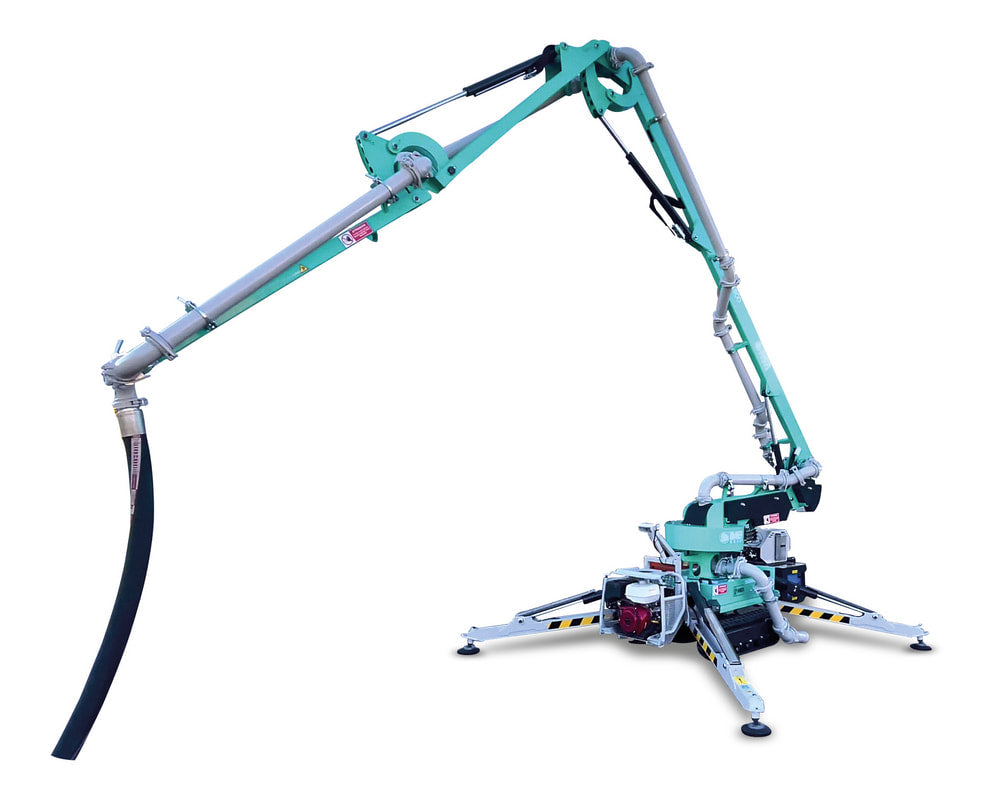

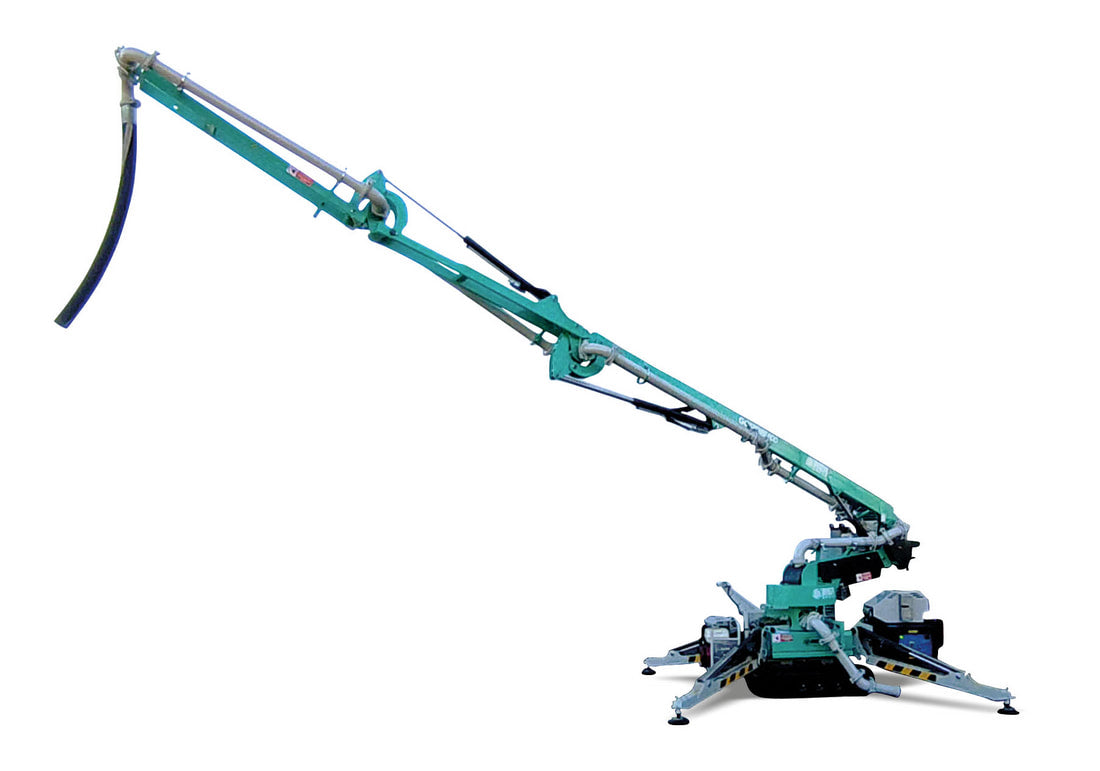

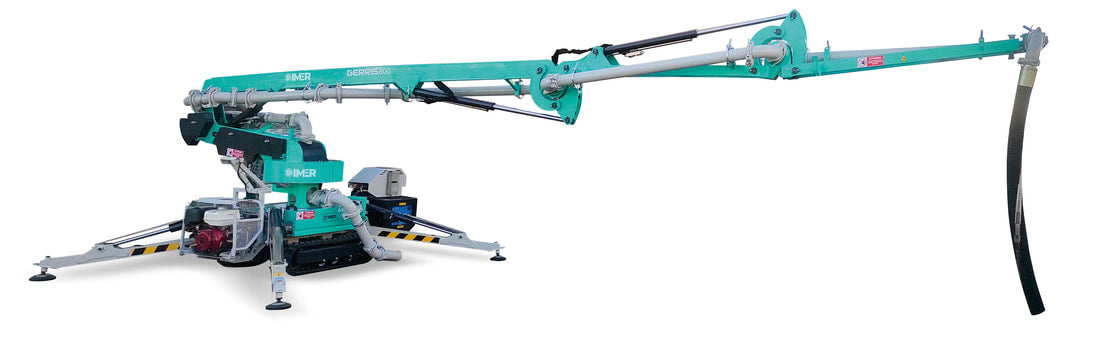

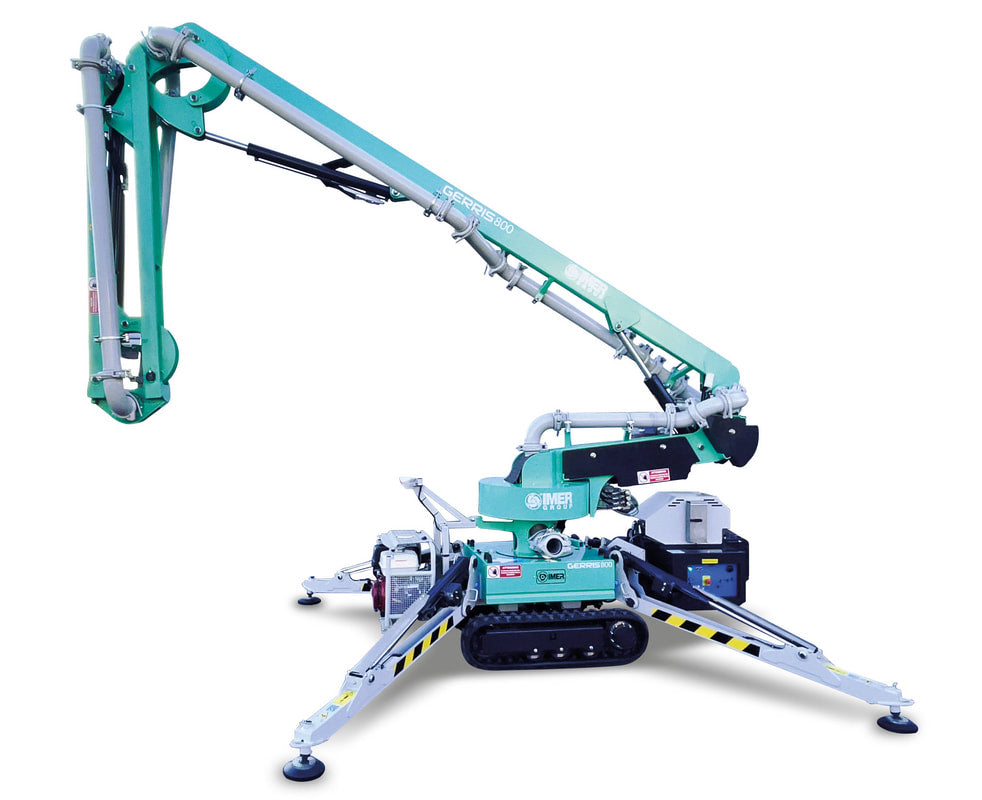

The Gerris 800 is a self-propelled crawler concrete placing boom, with a small footprint (2’ 7” x 16’ 2”) and minimal weight. It is used to distribute pumped concrete, in any position within its range of about 26’ - 3” and up to a height of 36’ 9”. The distribution boom requires minimal space for it to open (9’ 2”), allowing it to operate even in places with low ceilings. The unit is radio-controlled, simple and intuitive to maneuver and position in the working area. This machine is suitable for placing pumped concrete with a maximum aggregate size of 1”. Pair it directly with any concrete pump with 4” HD fittings. Bi-Energy: gas engine and electric auxiliary 120V motor allows it to work in closed work environments. Lithium option is also available.
TECHNICAL SPECIFICATIONS
|
GERRIS 800
|
|
|
Model # (Lithium)
|
1128758 (1128786)
|
|
Max Height
|
37 ft
|
|
Max Reach
|
26 ft
|
|
Max Depth
|
16.5 ft
|
|
Max Aggregate
|
1 in
|
|
Overall Dimensions - Stabilized
|
9' 7" x 10' 1"
|
|
Max Speed
|
1.6 mph
|
|
Gradeability
|
25%
|
|
Turret Rotation
|
355°
|
|
Gas Engine
|
13 HP Honda GX390
|
|
Lithium Motor
|
5.4 HP 48V AC
|
|
Gas - Aux. Electric Motor
|
1.5 HP 120V
|
|
Transport Width
|
2' 7"
|
|
Transport Length
|
16' 1"
|
|
Transport Height
|
6' 6"
|
|
Weight
|
5,512 lbs
|
Standard Equipment
• Wireless Remote Control
