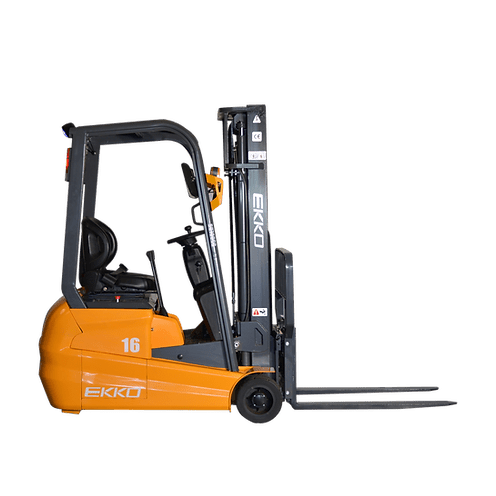

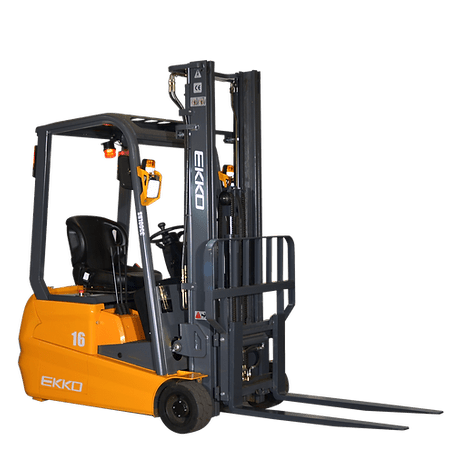

EKKO EK16A-138 3500lbs 3-Wheel Forklift

Regular price $23,999.00
Sale price $23,999.00 Regular price
Unit price
Product Description

Overview

The EKKO EK16A-138 3-Wheel Electric Forklift is specifically designed for small aisles, limited spaces, and budget-friendly operations. Perfect for loading and unloading trucks, managing loading docks, stock rooms, manufacturing floors, and warehouse environments. Recommended for indoor use on flat surfaces.

Key Features

  • Load Capacity: 3,500 lbs.
  • Maximum Lifting Height: 138" (11.5 ft)
  • Free Lift Height: 34.4"
  • Side Shift: Included
  • Adjustable Forks: 7.9-26"
  • Fork Length: 42.1"
  • Tilt Function: 3°/6°
  • Zapi Controller: Provides precision control
  • Drive Motor: 24V AC
  • Lift Motor: 3.3 kW
  • Cushion Tires: Optimized for smooth indoor operation
  • Hydraulic Power Steering (HPS): Ensures effortless handling
  • Steel Construction: Built for durability and strength
  • Robotic Welding: Precision-engineered for reliability
  • Charger: Included
  • Battery: 24V/320Ah (Included)

Specifications

Model: EK16A-138
Lift: Electric
Drive: Electric
Load Capacity: 3,500 lbs.
Load Center Distance: 20"
Wheelbase: 49.2"
Maximum Lifting Height: 138"
Free Lifting Height: 34.4"
Lowered Mast Height: 86.6"
Fork Tilt (Forward/Backward): 3°/6°
Side Shifting Forks: 3-way valve
Overall Length: 107.1"
Overall Width: 42.1"
Fork Dimensions (T/W/L): 1.4"/4"/42.1"
Fork Adjustment Width: 7.9-26"
Turning Radius: 58.9"
Max Gradient Performance (Laden/Unladen): 6%/10%
Lift Speed (Laden/Unladen): 4.71"/10.2"
Lowering Speed (Laden/Unladen): 11.8"/15.7"
Charger: 24V/50A
Drive Motor: AC
Lift Motor: 3.3 kW
Battery Voltage: 24V/320Ah
Service Weight: 5,020 lbs

Why Choose the EKKO EK16A-138?

The EKKO EK16A-138 delivers exceptional performance in compact spaces with enhanced maneuverability and power. Engineered for durability and efficiency, it’s an ideal solution for material handling tasks in warehouses and manufacturing floors.
