EK16A-189Li 3500lbs 3-Wheel Lithium Forklift

Regular price $26,999.00
Sale price $26,999.00 Regular price
Unit price
Product Description

Overview

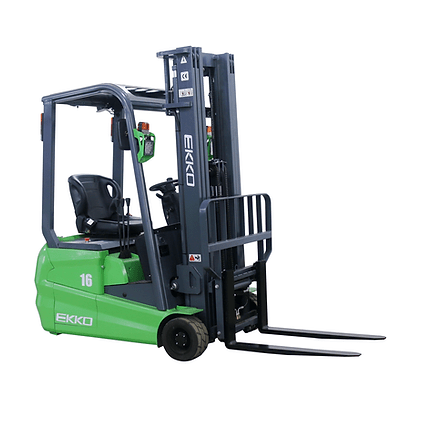

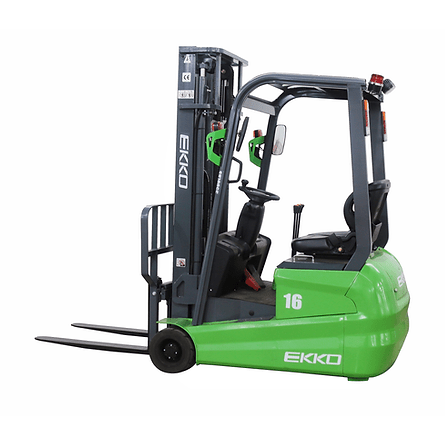

The EKKO EK16A-189Li 3-Wheel Lithium Forklift is engineered for small aisles, limited spaces, and cost-effective operations. It is perfect for loading and unloading trucks, managing loading docks, stock rooms, manufacturing floors, and warehouses.

Recommended for indoor use on flat surfaces.

Key Features

  • Load Capacity: 3,500 lbs
  • Maximum Lifting Height: 189" (15.75 ft)
  • Free Lift Height: 31.5"
  • Adjustable Forks: 7.9-26"
  • Fork Length: 42.1"
  • Tilt Function: 3°/6°
  • Zapi Controller: Offers precision control
  • Drive Motor: 24V AC
  • Lift Motor: 3.3 kW
  • Cushion Tires: Ideal for indoor environments
  • Hydraulic Power Steering (HPS): Simplifies maneuvering
  • Steel Construction: Built for durability
  • Robotic Welding: Ensures consistent quality
  • Charger: Included
  • Battery: 24V/200Ah Lithium (Included)

Specifications

Model: EK16A-189Li
Lift: Electric
Drive: Electric
Load Capacity: 3,500 lbs
Load Center Distance: 24"
Wheel Base: 49.2"
Maximum Lifting Height: 189"
Free Lifting Height: 31.5"
Lowered Mast Height: 81.3"
Fork Tilt (Forward/Backward): 3°/6°
Overall Length: 65"
Overall Width: 42.1"
Fork Dimensions (T/W/L): 1.4"/4"/42.1"
Fork Adjustment Width: 7.9-26"
Turning Radius: 58.9"
Max Gradient Performance (Laden/Unladen): 6%/10%
Lift Speed (Laden/Unladen): 4.71"/10.2"
Lowering Speed (Laden/Unladen): 11.8"/15.7"
Charger: 24V/50A
Drive Motor: AC
Lift Motor: 3.3 kW
Battery Voltage: 24V/200Ah
Service Weight: 4,650 lbs

Why Choose the EKKO EK16A-189Li?

The EKKO EK16A-189Li is designed to optimize material handling in compact spaces while maintaining superior performance. Its robust build and advanced features make it a reliable choice for indoor applications in warehouses, stock rooms, and manufacturing floors.
