Product Description

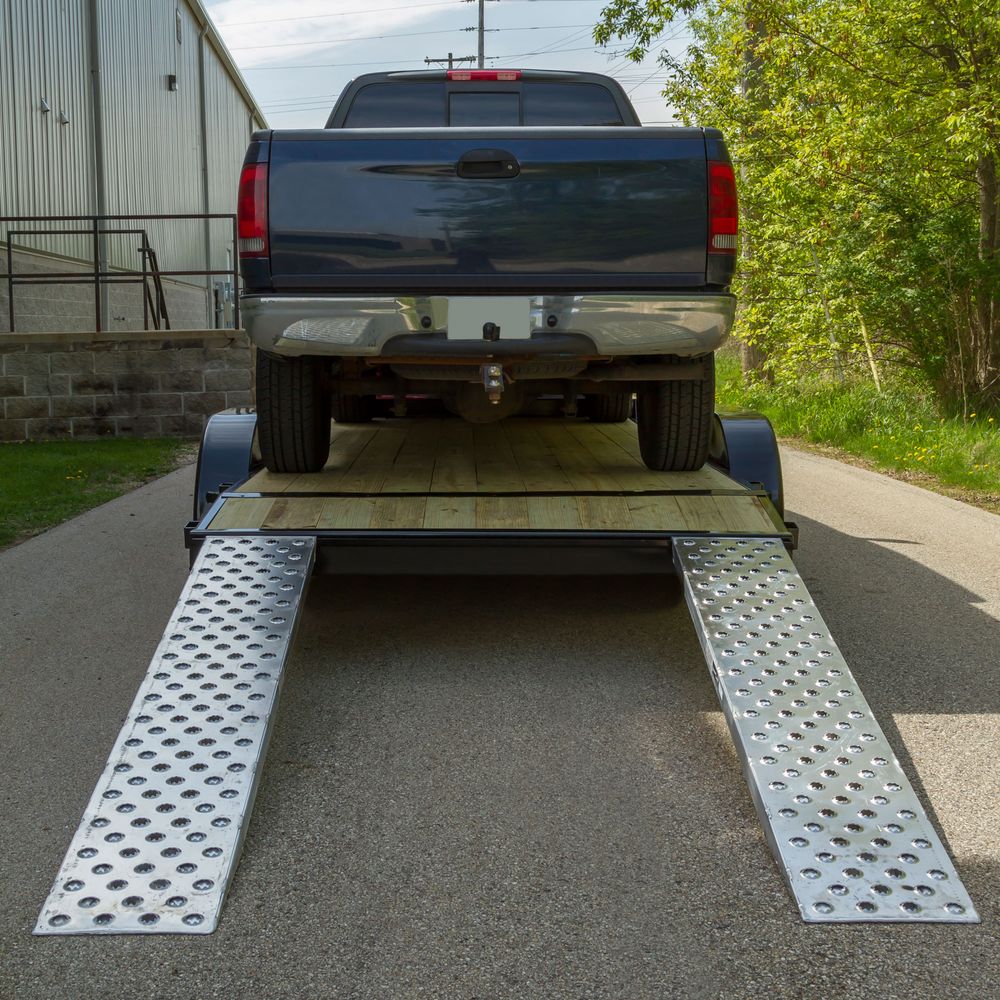

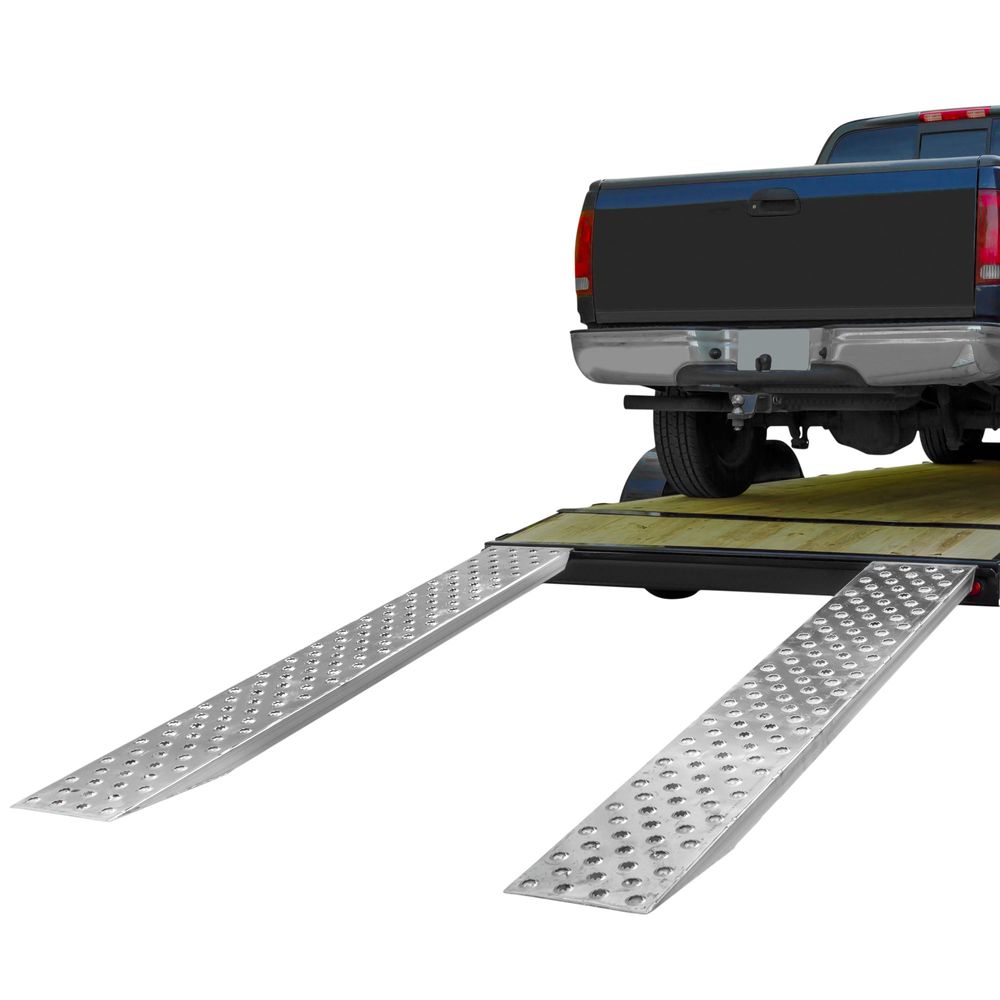

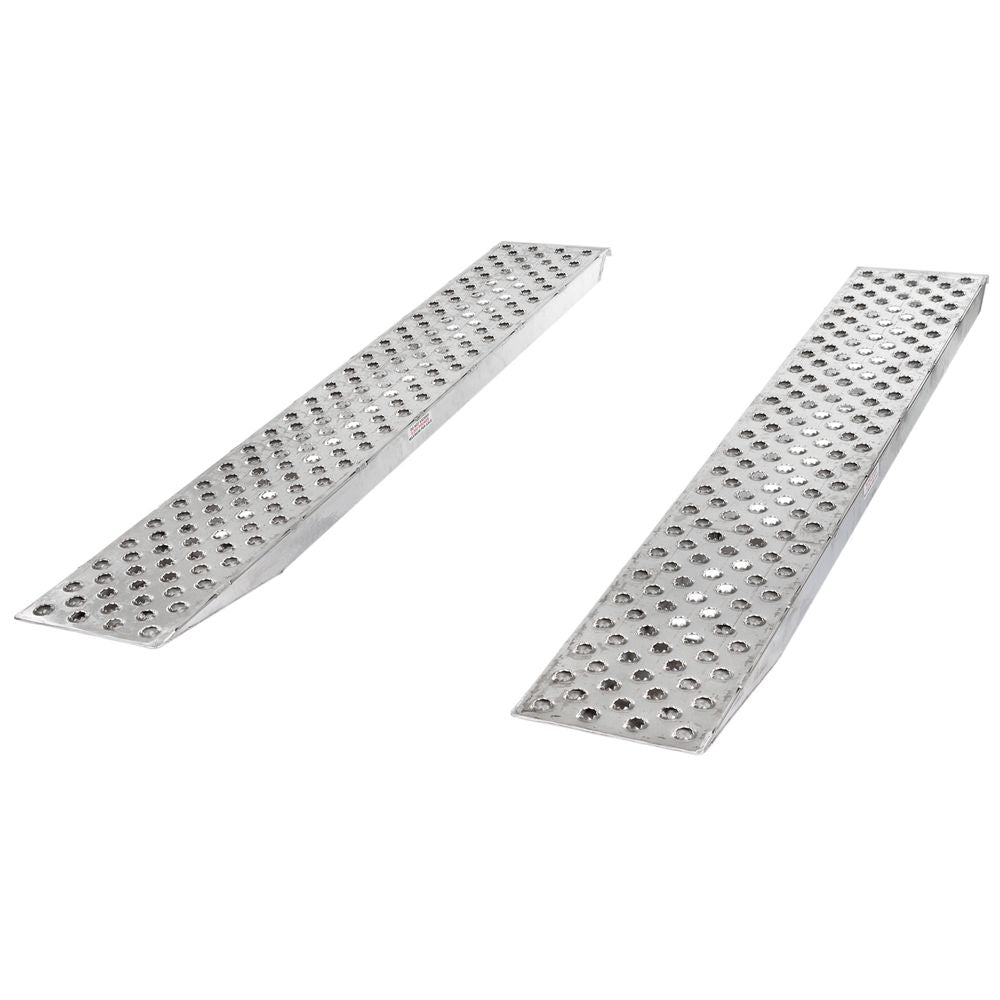

Load and haul cars, trucks and equipment onto trailers with this pair of lightweight 7' 10" L aluminum truck trailer ramps that feature a hook end and a knife foot with EZ punch plate surface traction.

Made in the USA, these ramps are constructed from lightweight aluminum and feature an EZ Traction punch plate surface that grips tires in wet, icy or other inclement conditions. The tops of the ramps have a hook-style connecting end that hooks over existing rub or round rails up to 1-5/16" diameter. The knife foot ramp ends provide a smoother ground-to-ramp transition while loading and unloading.

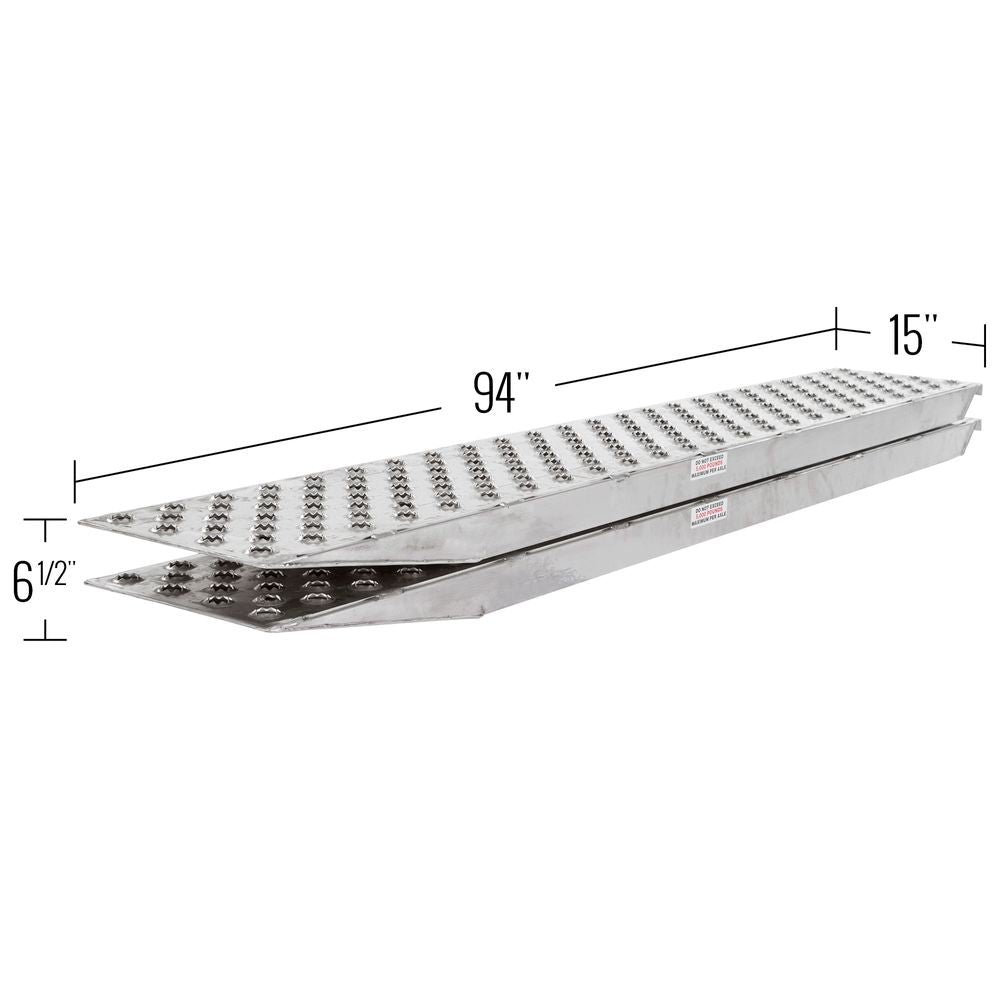

Each ramp measures 7' 10" L x 15" W x 3" H. At 40 lbs. per ramp, they are light enough to be maneuvered by one person for set-up, take down and storage. For correct use with the knife foot design, set up between 16" to 24" H.

  • Hook end connector with knife foot
  • Aluminum construction with EZ traction surface
  • Each ramp measures 7' 10" L x 15" W x 3" H
  • 5 Year Warranty
Usage Guidelines
Never exceed the maximum axle capacity of this ramp system. The best way to determine the axle weight of the vehicle being loaded is to drive the heaviest axle of the vehicle on a scale. Normally, the front end of the vehicle has the heaviest axle weight because of the engine location.

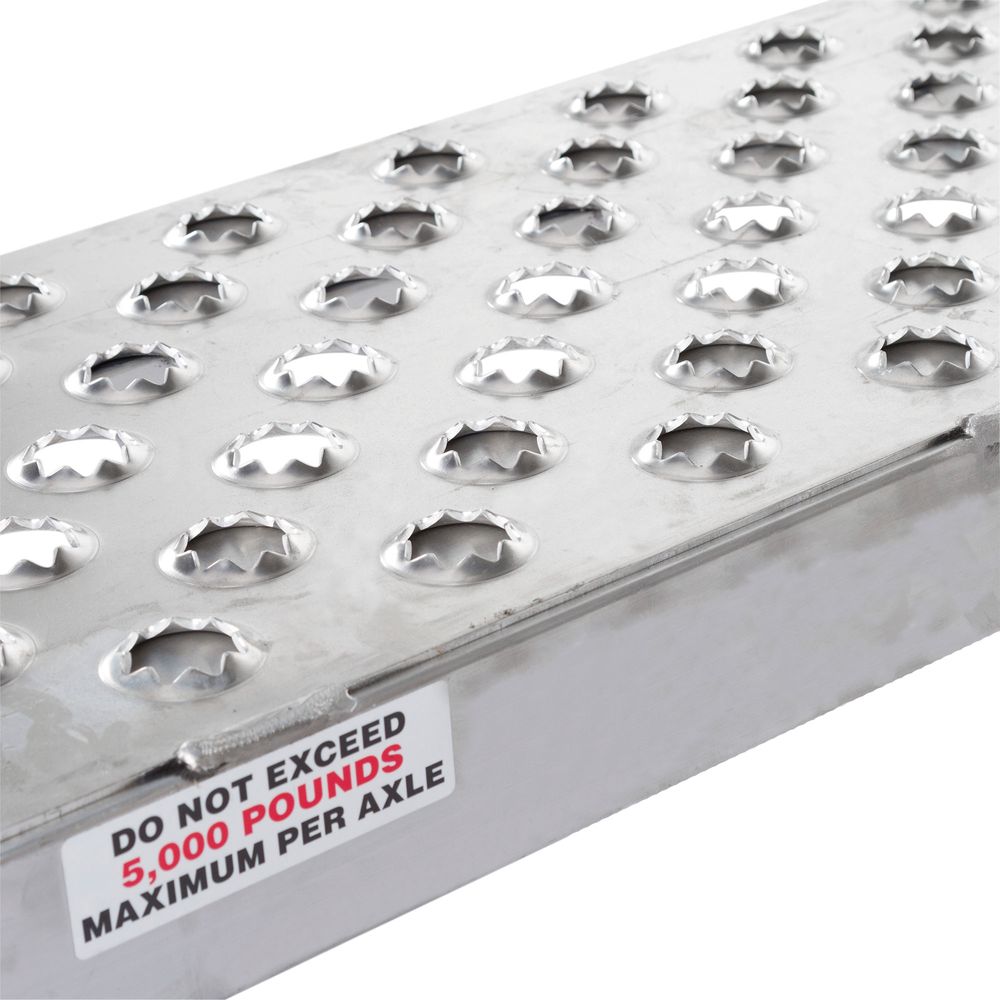

EZ Traction Punch Plate

The unique punched surface features smoothed serrations that grip tires while allowing rain, mud and ice to pass through.

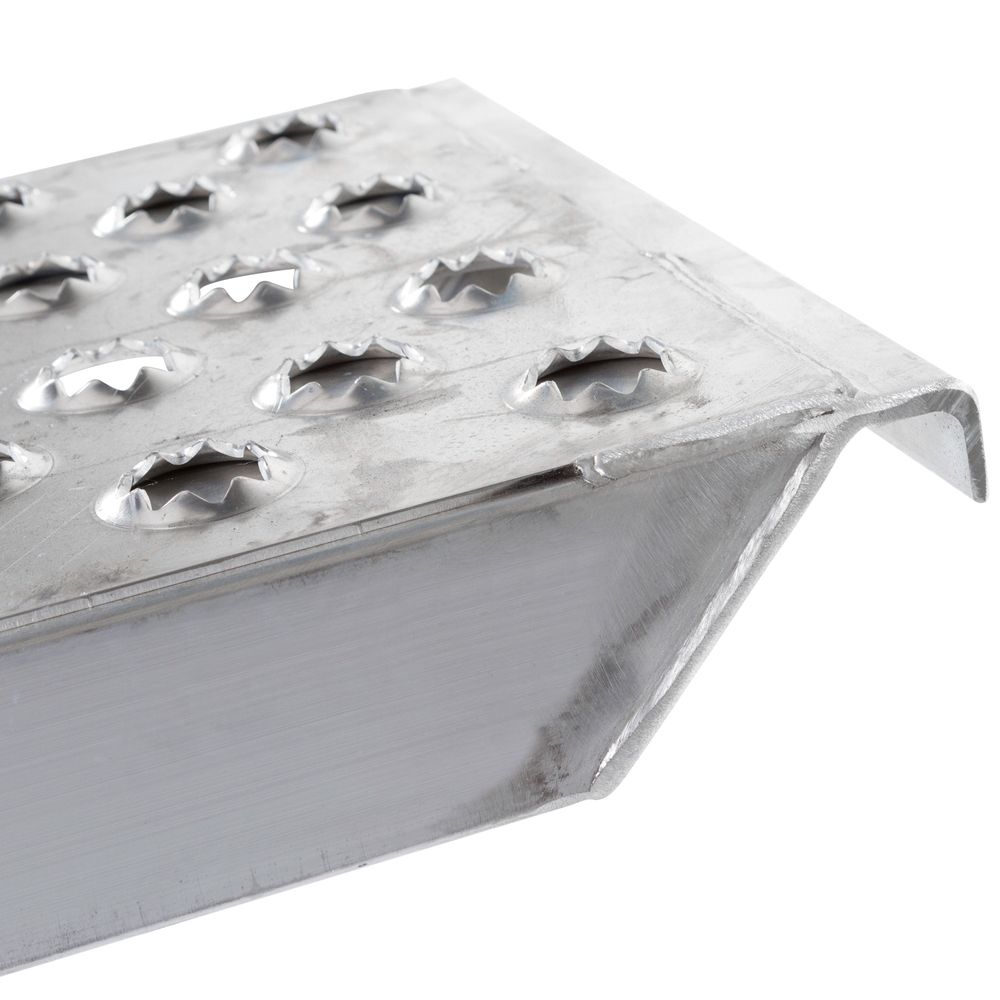

Hook End

Prevent kickouts without requiring the use of safety straps with hook ends. They fit over existing rub or round rails up to 1-5/16” diameter, and the pressure of a vehicle loading or unloading keeps them securely in position.

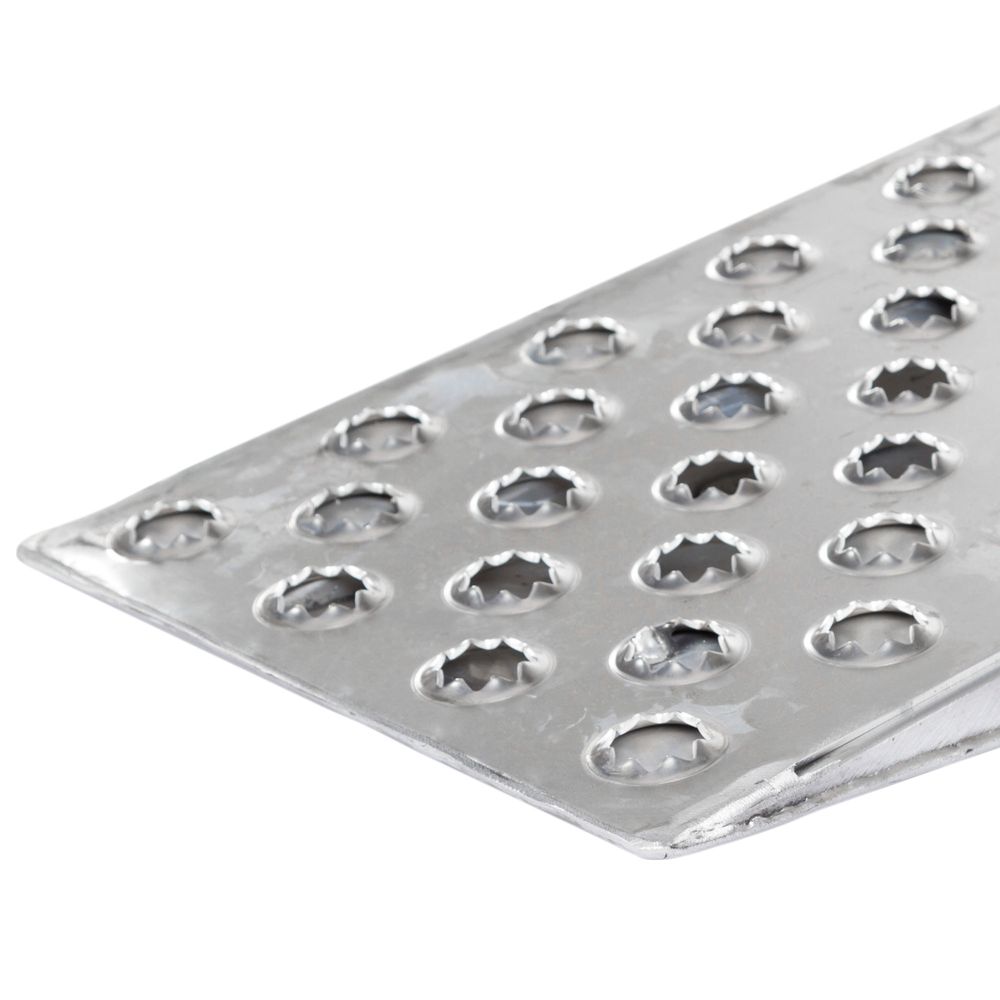

Knife Foot

Graded all the way to the ground, the knife foot provides a smooth ground-to-ramp transition. The knife edge should be as flush to the ground as possible within the acceptable height range for optimal use.

Specifications
Made in the USA
Length:
7' 10"
Width:
15"
Height:
3"
Weight:
40 lbs. per ramp
Minimum Height:
16"
Maximum Height:
24"
Foot Type:
Knife
Attaching End:
Hook
Maximum Capacity:
5,000 lbs. per axle
Material:
Aluminum
Surface Type:
Punch Plate
