Product Description

DESCRIPTION:

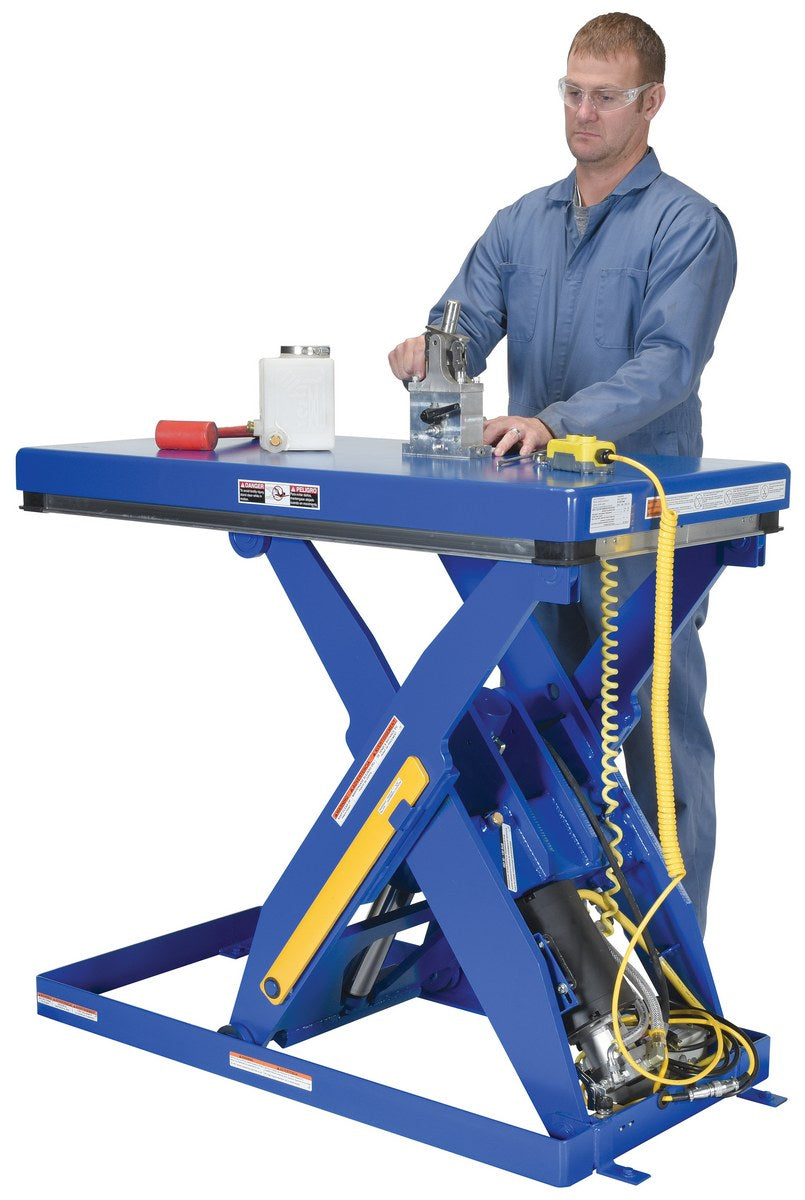

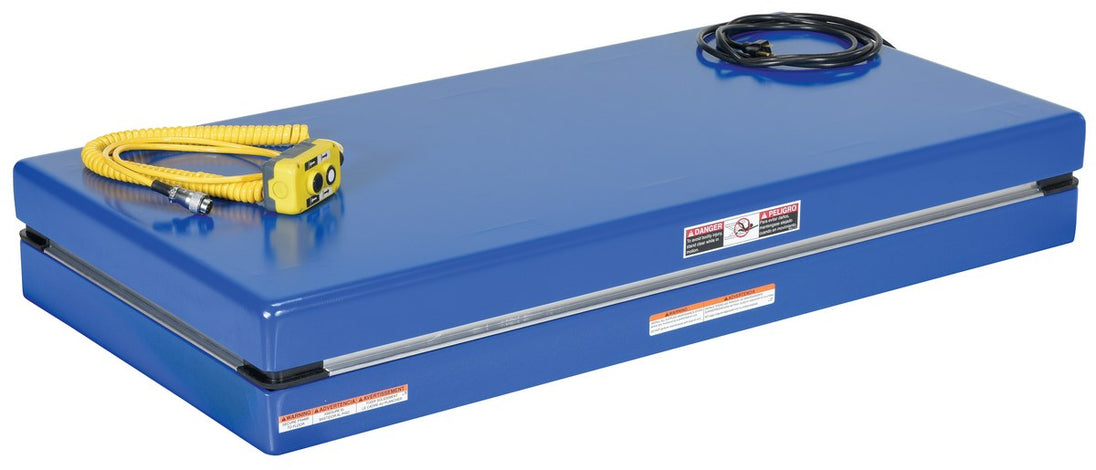

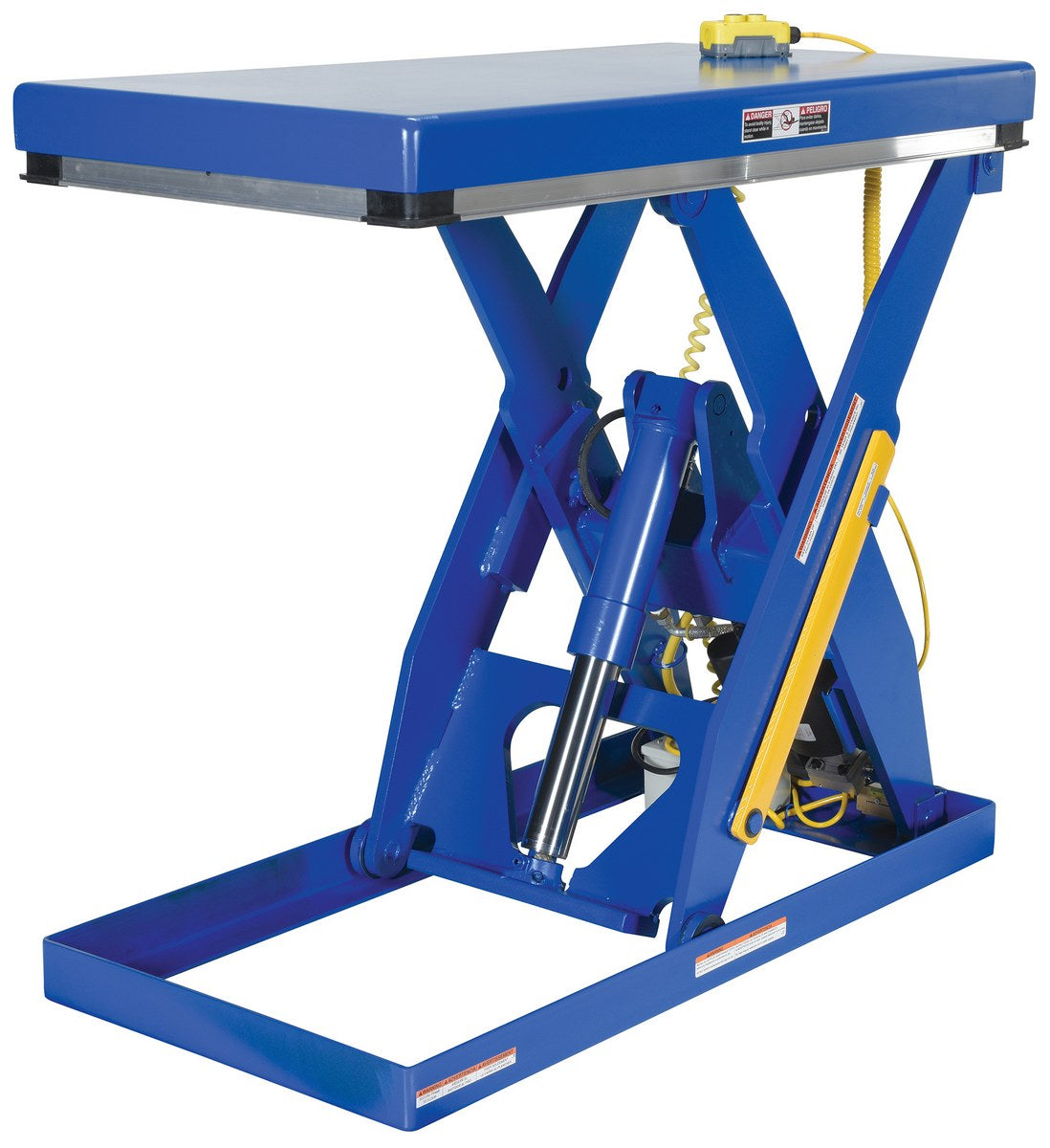

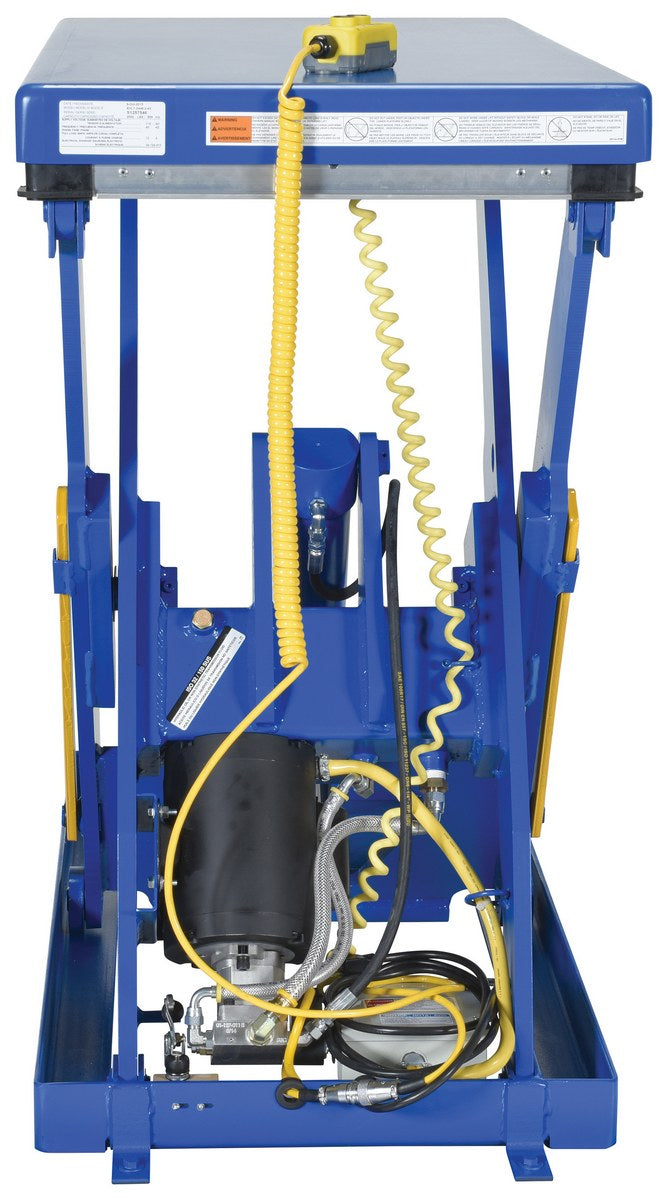

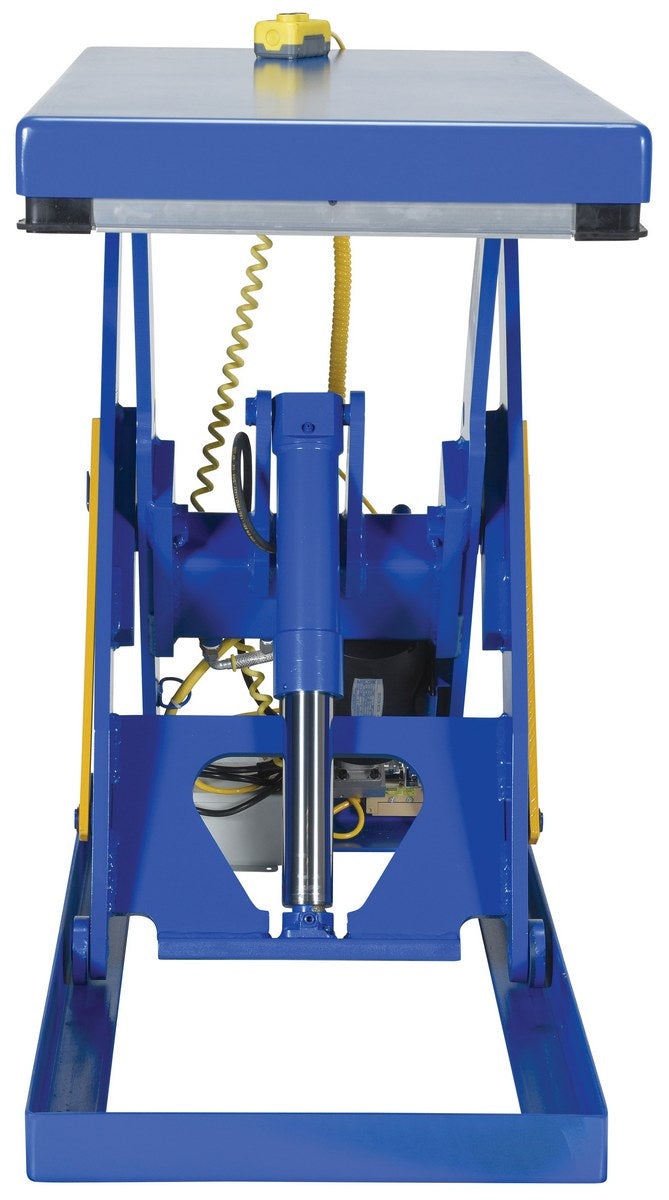

The electric hydraulic scissor lift table is used by all types of manufacturing and warehouse facilities. Safety features include a patented pinch point perimeter toe guard to protect pinch points while lowering the table, a fused push button control, an internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, an integral maintenance prop, an adjustable upper travel limit switch to stop the table at maximum height, and displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, and state-of-the-art lifetime lubricated bearings. The standard 56 frame electric motor is fully enclosed with additional voltage options available. Contact factory if platform dimensions are crucial.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
  • 1 Year Limited Warranty
  • Non-returnable
  • Lead time: 30 days

Assembled Wt.(lbs.): 596 Assembled Size: 24.375"W x 51"L x 7"H

 Total Ship Wt.(lbs.): 631 Package 1 Size: 48"W x 30"D x 29"H



Uniform Capacity (lb.): 2,000 Travel Time (sec.): 11 Vertical Travel (in.): 36
Voltage/Phase: 460/3 Hertz: 60 Motor Horsepower: 2
Hydraulic Component Rating (psi): 3000 Cord Length (in.): 96 Push Button Hand Control: 24V AC
Raised Height (in.): 43 Lowered Height (in.): 7 Platform Width/Length (in.): 24-3/8 x 48-3/8
