Product Description

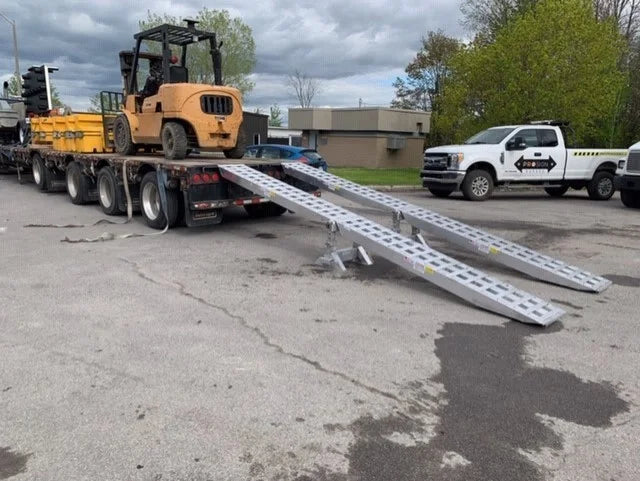

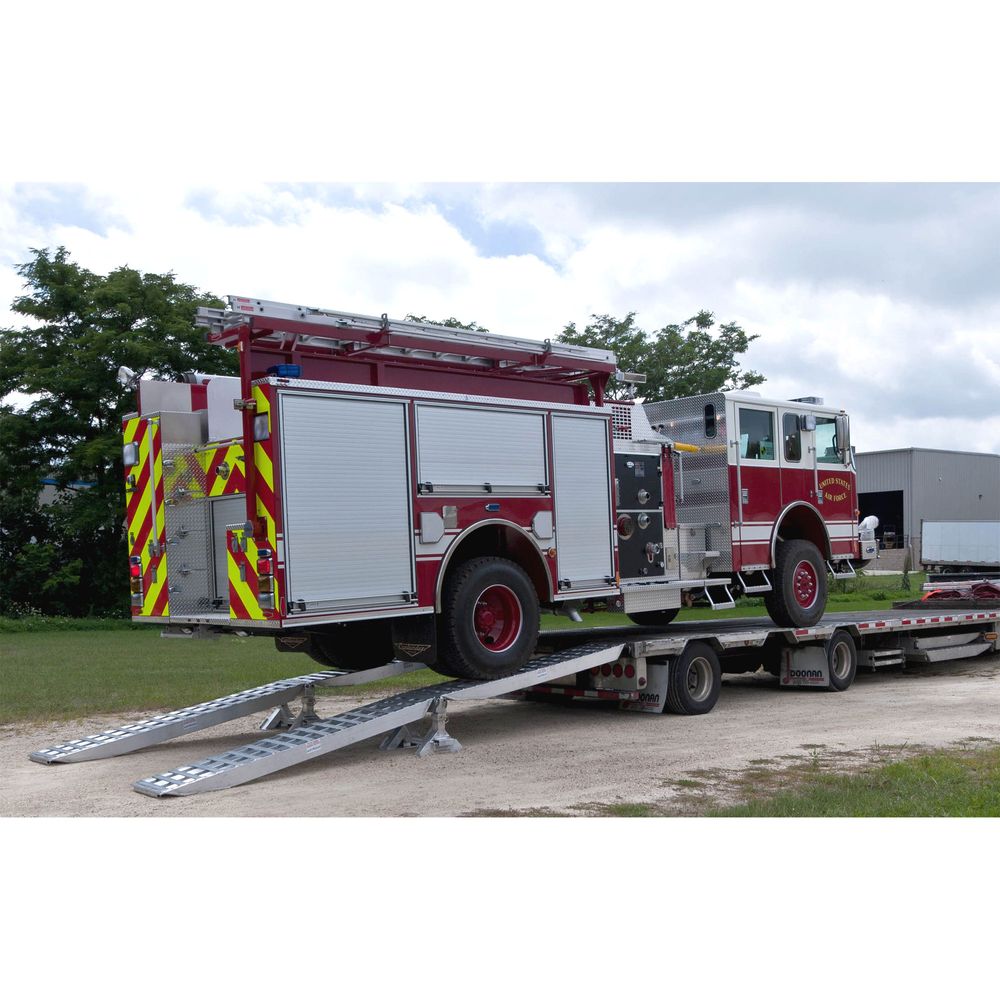

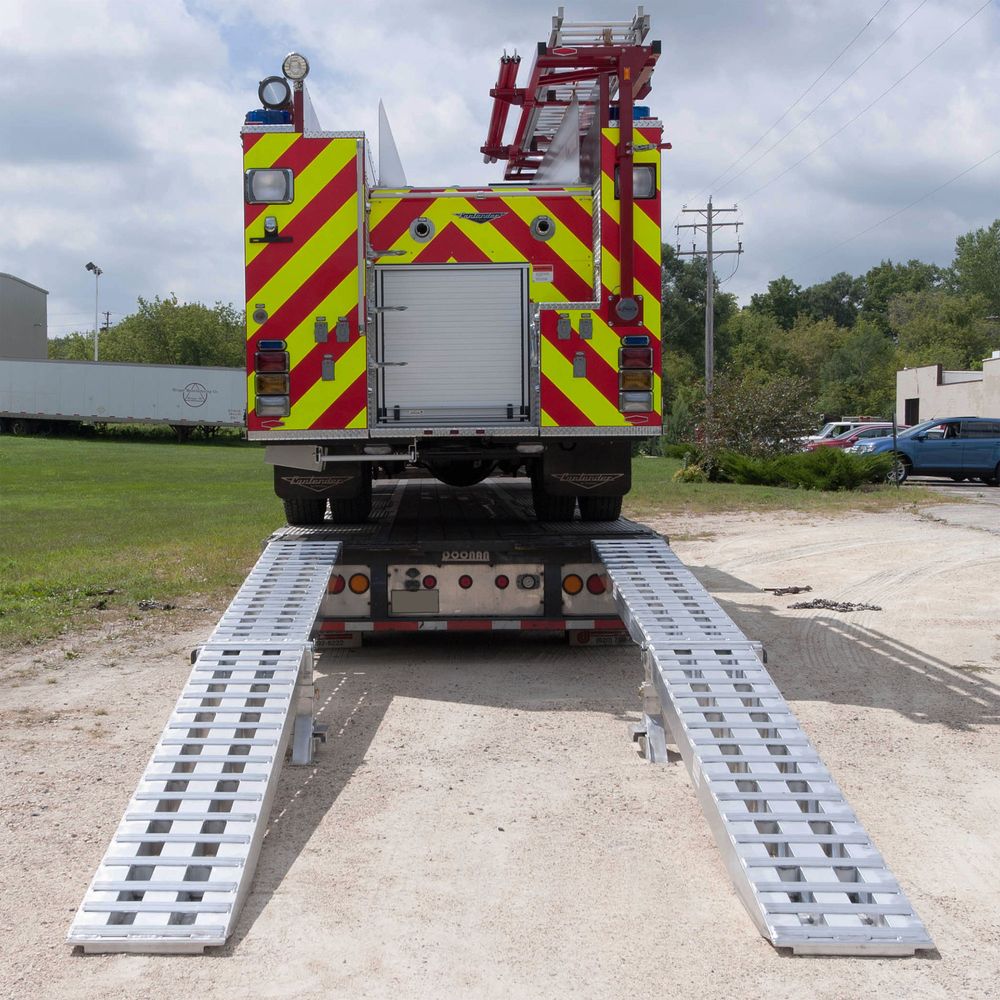

The step deck trailer ramp is the most versatile ramp system for loading tractors, loaders, trucks, and heavy equipment onto step deck trailers, loading docks, or flatbed trailers. These high-strength, lightweight aluminum ramps are easy to set up, and have a 23,500 lb. per axle weight capacity.

These heavy-duty ramps feature a reinforced stubbed toe so that they may be used as a modular system or used as 8' ramps on the rear of a trailer. The stubbed toe also prevents ramps from bending under the weight of heavy loads. This system breaks down into sections weighing just 74 lbs. each, allowing it to be set up quickly and easily by just one person.

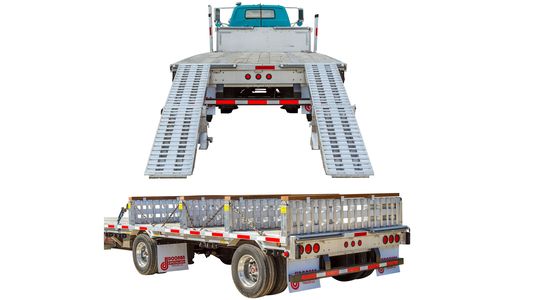

The ramps pin to an adjustable center support stand and skid seat ramp bracket on the trailer or loading dock. The stands can change the loading angle onto trailers and docks by creating an offset angle or arch. The required skid seat brackets (sold separately) are available in steel or aluminum and must be welded or bolted to the trailer or loading dock. Consider purchasing brackets wider than your ramps so you can slide ramps in or out to accommodate different vehicles. Complete your ramp system by adding lockable ramp hangers and stand hangers (sold separately) to conveniently store your ramps and stands underneath your truck or trailer. US Patent #8347439, #7930788.

  • Loading ramp system for step deck trailers
  • Aluminum construction
  • Each 16' L side includes two 8' L ramps measuring 20" W and one ramp stand
  • 5 Year Warranty

Loading Ramps

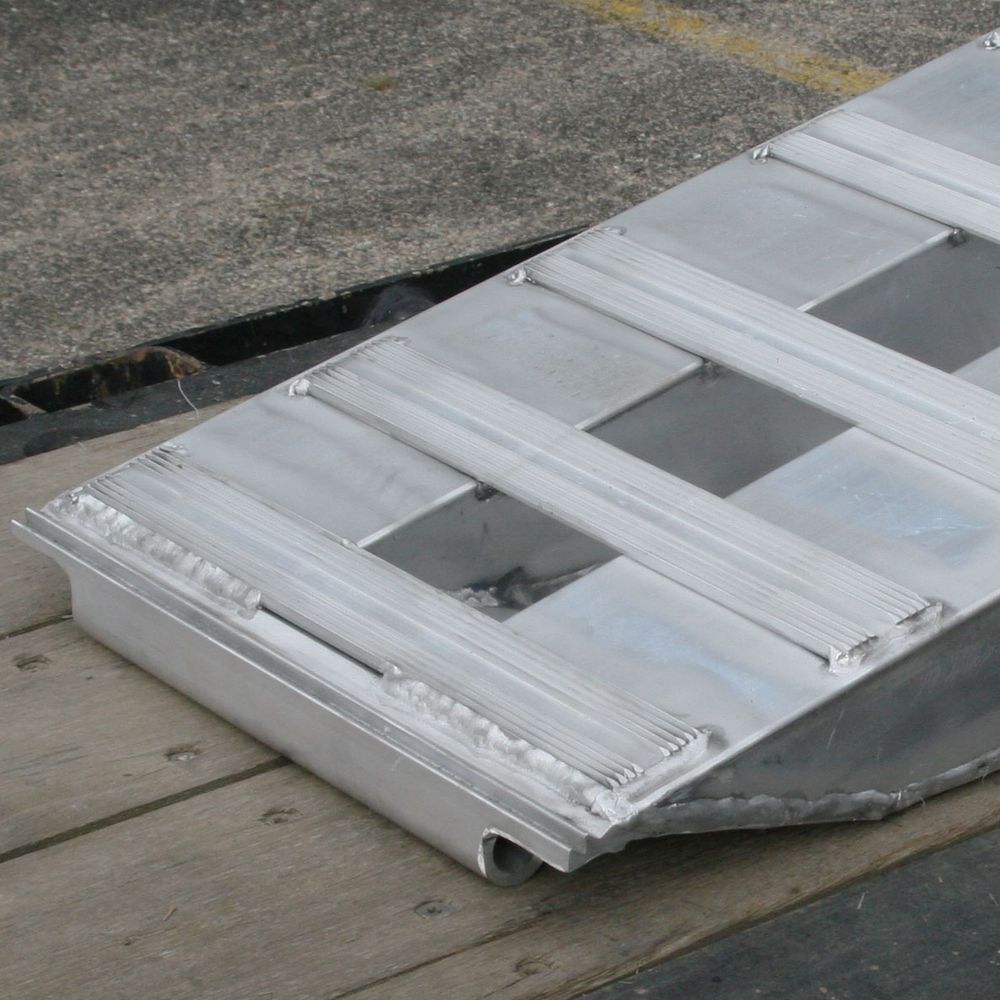

These double pin-on end ramps are easy to set up and have a reinforced stubbed toe so they can be used as part of a modular system or used on the rear of a trailer.

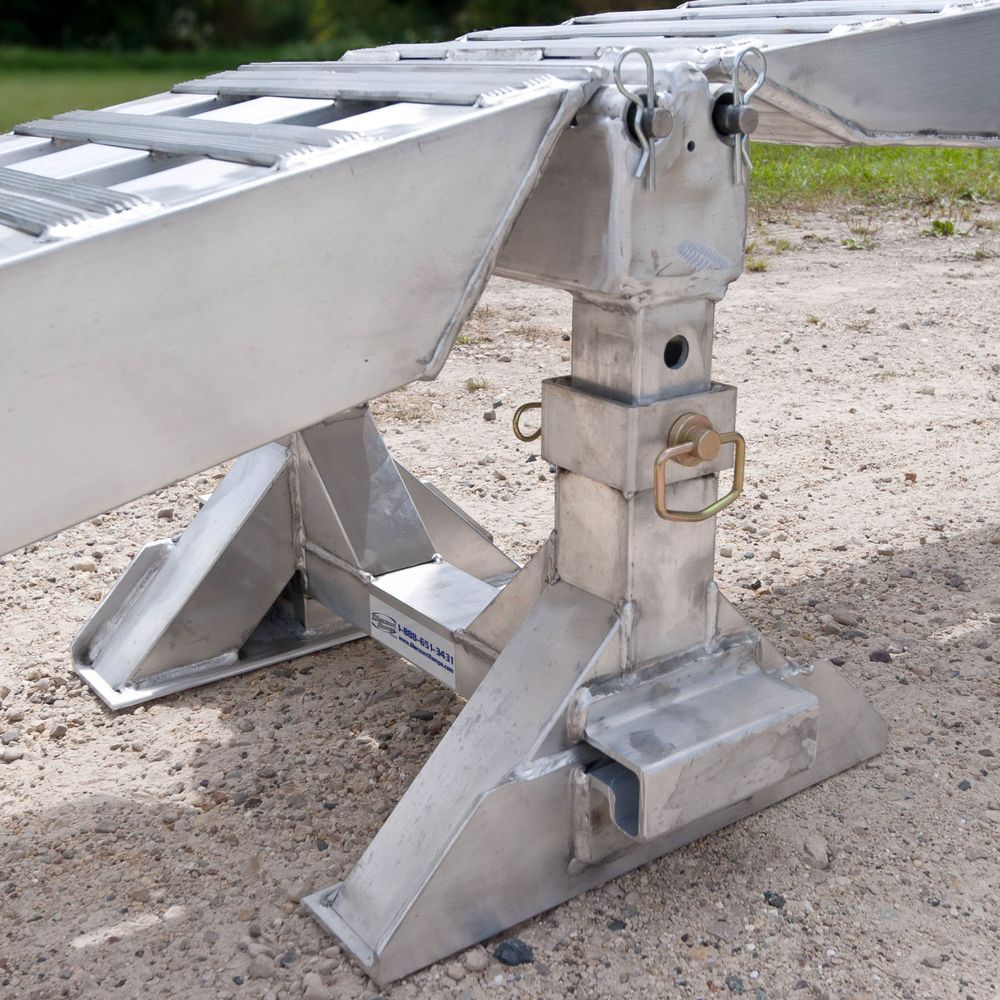

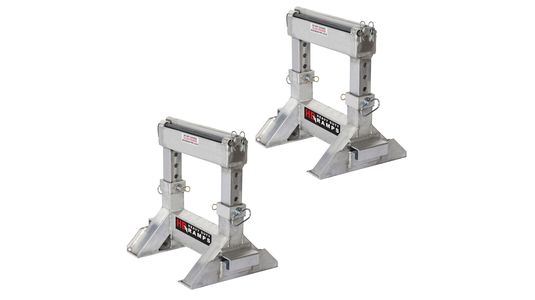

Ramp Support Stands

These not only ensure that the two ramps per side will be able to support the loading weight of your cargo, but they are also adjustable in case you need to create a slight arch to help with the loading process. This is important with vehicles or machinery that have a long wheelbase and/or lower ground clearance, so they don’t high-center at the top of the ramps.

Usage Guidelines
Not recommended for trucks with mounted cranes, forklifts, or steel track vehicles. Never exceed the maximum axle capacity of this ramp system. Pin End Ramps must be pinned into skid seat brackets before using ramps. The best way to determine your vehicles axle weight is to drive the heaviest axle of the vehicle on a scale. Normally the front end of the truck is the heaviest axle weight because of the engine.
Specifications
Made in the USA
Maximum Capacity:
23,500 lbs. per axle
Length:
16'
Width:
20"
Height:
5"
Weight:
460 lbs.
