Product Description

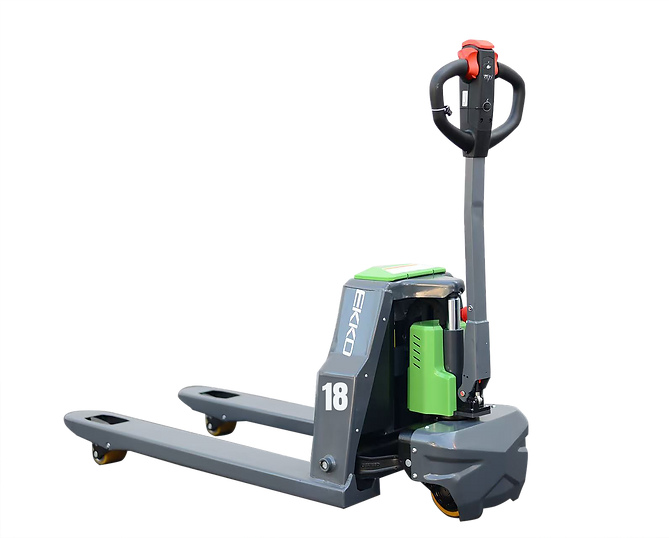

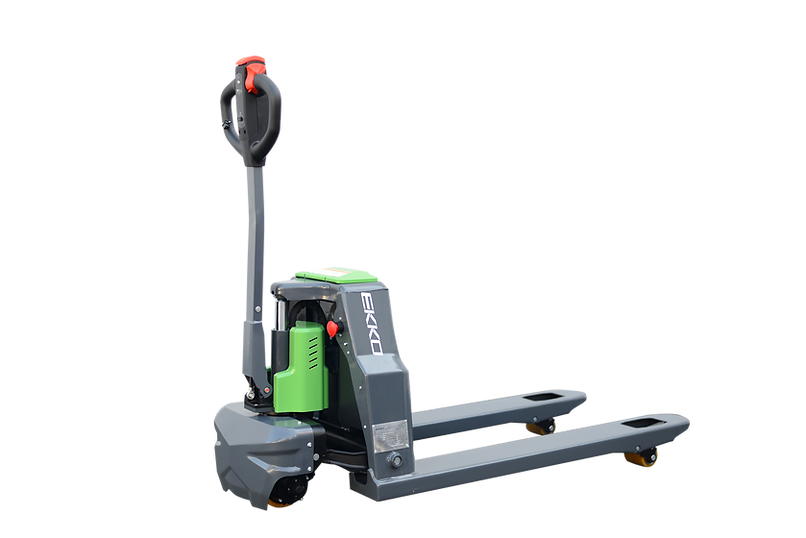

The EKKO EPC18Li Full-Powered Lithium Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for long hauls, loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 4000lbs.
  • Fork Size 27x45
  • Raised Height 7.68"
  • Lowered Height 3.35"
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery 24V/30Ah Included
  • 3 Years Limited Warranty



Model   EPC18Li
Power unit   Lithium Battery
Operation   Control
Rated loading capacity  Q (LBS) 4000
Load center distance c (Inch) 24
Wheel base y (Inch) 81.89
Wheels type   PU
Lifting height  h3 (Inch) 7.68"
Overall height h14 (Inch) 42.91
Lowered fork height h13 (Inch) 3.35
Overall length l1 (Inch) 64.17
Overall width b1/ b2 (Inch) 31.81
Fork Size s/e/l (Inch) 2.24/6.3/45.28
Fork Width b5 (Inch) 26.97
Min.Ground clearance m2 (Inch) 0.98
Aisle width for pallets 39.37*47.24 crossways Ast (Inch) 88.5
Aisle width for pallets 31.5*47.24 lengthways Ast (Inch) 85.2
Turning Radius Wa (Inch) 58.82
Travel speed,laden/unladen (mph) 2.49/2.8
Lifting speed, with/without load (in/s) 0.59/0.76
Lowering speed, with/without load (in/s) 6/10
Brake Type   Electromagnetic brake
Drive Motor (kW) 0.85
Lift Motor (kW) 0.7
Battery voltage/rate capacity (V/Ah) 24/30
Battery Weight(±5%) (LBS) 13.9
Type of drive control

DC

Service weight with battery LBS 260.2
