Product Description

Product Overview

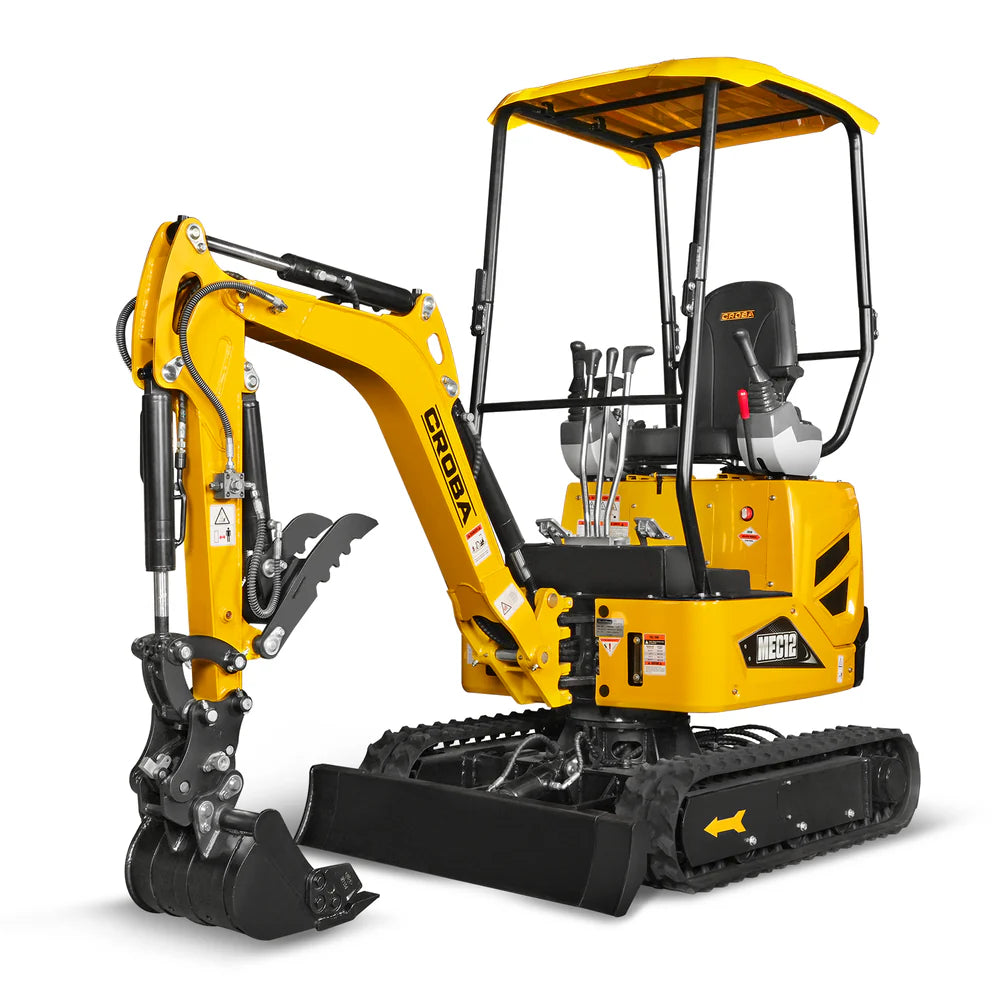

  • MEC12 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
  • Powered by Kubota D722 air-cooled engine, high compression ratio for better fuel efficiency.
  • Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
  • It features a retractable and extendable track system, allowing the operator to easily adjust the track width for enhanced stability on uneven terrain or to fit through narrow passages.
  • The excavator is equipped with two-speed travel modes (high and low speed), offering excellent maneuverability and productivity—whether you need precision control for delicate work or faster movement across the job site.
  • For operator comfort, it comes with a high-back seat that provides excellent support during long working hours, reducing fatigue and improving overall efficiency.
  • The pilot-operated control levers ensure smooth, responsive, and precise handling of the machine, making operation easier even for extended periods.
  • 65.7-inch digging depth reach capability and a 118.7in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.
  • Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
  • Can rotate 360 degrees.


Note!

  • The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.

Specifications

ENGINE
Model Kubota D722 Rated speed 2500rpm
No.Of Cylinders 3 Displacement  43.88in³
Stroke 2.68in Engine Output 13.7hp
Bore 2.64in Warranty for Engine 2-Year
TRAVEL SYSTEM
Travel Speed - High 2.24 mile/h Ground Clearance 15.9in
Travel Speed - Low 1.12 mile/h Ground Pressure 5.1psi
Maximum Traction Force - Low Speed 2923lbf Gradeability - Maximum Maximum 30 degrees
WEIGHT
Operating Weight 2700lb
HYDRAULIC SYSTEM
Type Load Sensing Hydraulics with Variable Displacement Piston Pump Max.Discharge Flow 4.65 gpm
SWING SYSTEM
Swing Speed 8rpm Tail Swing Radius 48.1in
DIGGING FORCE(ISO6015)
Boom Length 52in Bucket Digging Force 1960lbf
Arm length 35in Arm Digging Force 875lbf
REFILING CAPACITIES & LUBRICATIONS
Fuel Tank 2.4gal Hydraulic Oil Tank 3.2gal
Cooling System 1.1gal System Capacity 4.8gal
Engine Oil 0.7gal
BUCKET
Bucket Capacity 0.7 ft³ Bucket Width 15 in
SCOPE OF WORK
Max.Digging Height 111.2in Min Turning Radius Of Working Device 48.1in
Max.Dumping Height 81.1in Max. Lift Above Ground 5.5in
Max.Digging Depth 65.7in Max. Drop Below Ground 8.9in
Max.Vertical Digging Depth 62.6in Boom Swing - Left 53°
Max Digging Radius 119in Boom Swing - Right 40°
Max.digging Radius At Ground Level 118.7in
DIMENSIONS
Transportation Length 92.4in/114.8in Crawler Wheel Base 42.5in
Overall Width (Retracted/Expanded) 43.2in Track Belt/Shoe Width 7in
Overall Height(To Top Of Cab) 89.5in Track Length 55.5in
Counter Weight Ground Clearance 16.7in Track Width(Retracted/Expanded) 34.5in/43.2in
Ground Clearance 15.9in
SERVICE
Package Method Wood Case Warranty for Machine 1 Year
Packing Size 91x40x98 in Weight (N.W./G.W.)  2700/2978 lb

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
