Product Description

Product Overview

Trimming and maintaining banks, roadsides, ditches, and shorelines can be challenging. Thankfully, our bank mowers are built to efficiently handle overgrown grass on ditches and embankments.

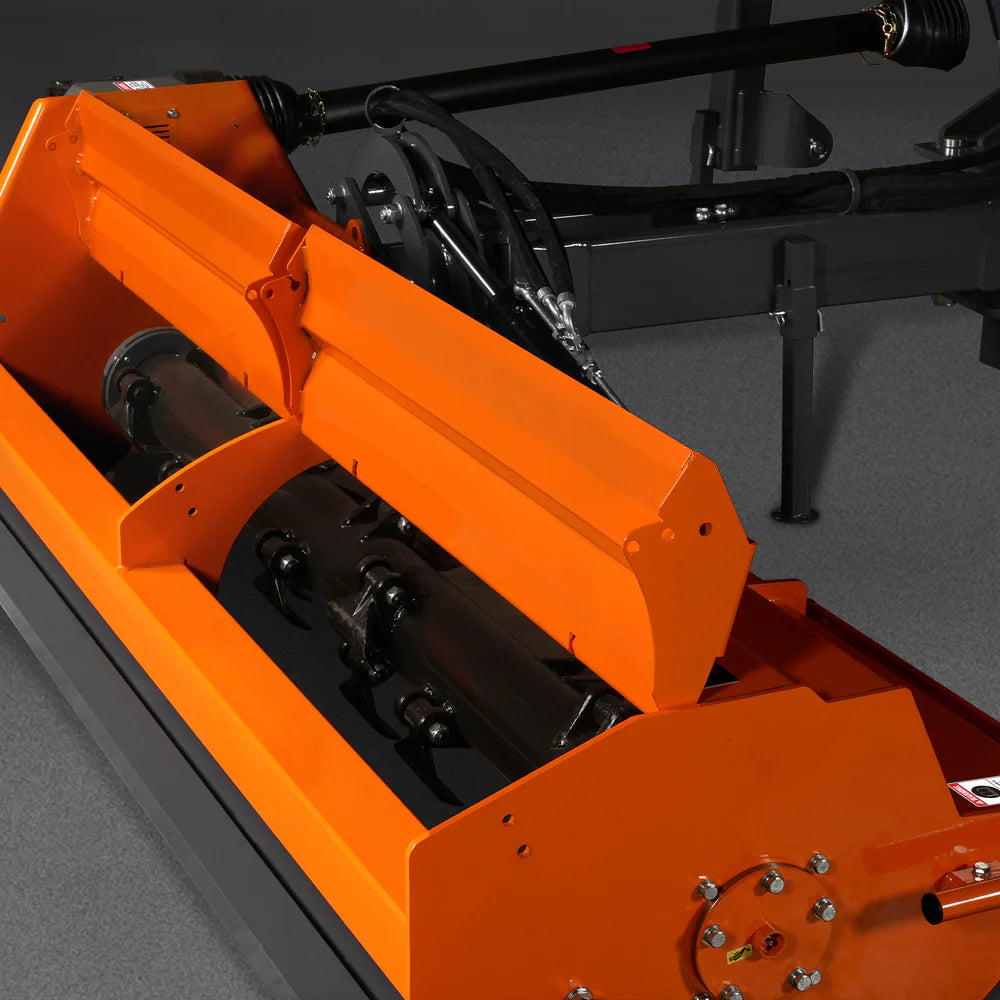

Powered by a 65HP CMR gearbox from Italy for consistent performance, Equipped with forged hammer flail blades, Includes an adjustable rear opening panel for convenient maintenance access these mowers can cut and mulch material up to 6" in diameter in one pass. The finely shredded cuttings act as a fast-decomposing, micronutrient-rich fertilizer, nourishing your land. The trimmings drop directly to the ground, reducing debris. Plus, an adjustable rear roller provides precise cutting height control, ensuring a clean, even cut on uneven terrain.

The 78" model, built for Category 2 tractors, pivots 90 degrees up and 55 degrees down, delivering a precise, clean cut every time. PTO shaft w/safety pin; dynamically balance tested for safe and reliable operation.

  • Note: The size of this product exceeds the carrying range of the lift gate, and customers need to prepare their own forklift or unloading platform.

Specifications

Engine Power Required 80-110 Hp Rotor Diameter 5.5 in
Working Width 78 in Rotor Thickness 0.5 in
Overall Width 94 in Rear Roller Diameter 6 in
Blade Ground Clearance (Four Gears) 0.2-0.9-1.7-2.4 in Rear Roller Thickness 0.25 in
Max. Cutting Diameter

Depends On The Type Of Grass

PTO Shaft Speed 540 rpm
Offset Distance from The Center (Maximum) 122 in Deck Thickness 2 in
Tilt-Up Angle 90° Side Plate Thickness 0.25 in
Tilt-Down Angle 55° Driveline Shaft Length T6-LF-73  With Shear Bolt ; 73in-126in
Number Of Blades 18 Spline End 1.375in  Z6
Number of Belts 4 3-Point Hitch CAT 2
Blade Type Hammer Gearbox 0il Type 85W-90
Blade Weight 2.6 lbs Finish Powder Coating
Blade Material Cast Steel Warranty 1 Year
Belt Adjustment Bolt Tightening Shipping Box 100x41x31 in
Working Efficiency450 cu.ft./Hr. 450 cu.ft./Hr. Weight (N.W./G.W.) 1848 /2040 lbs

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
