Product Description

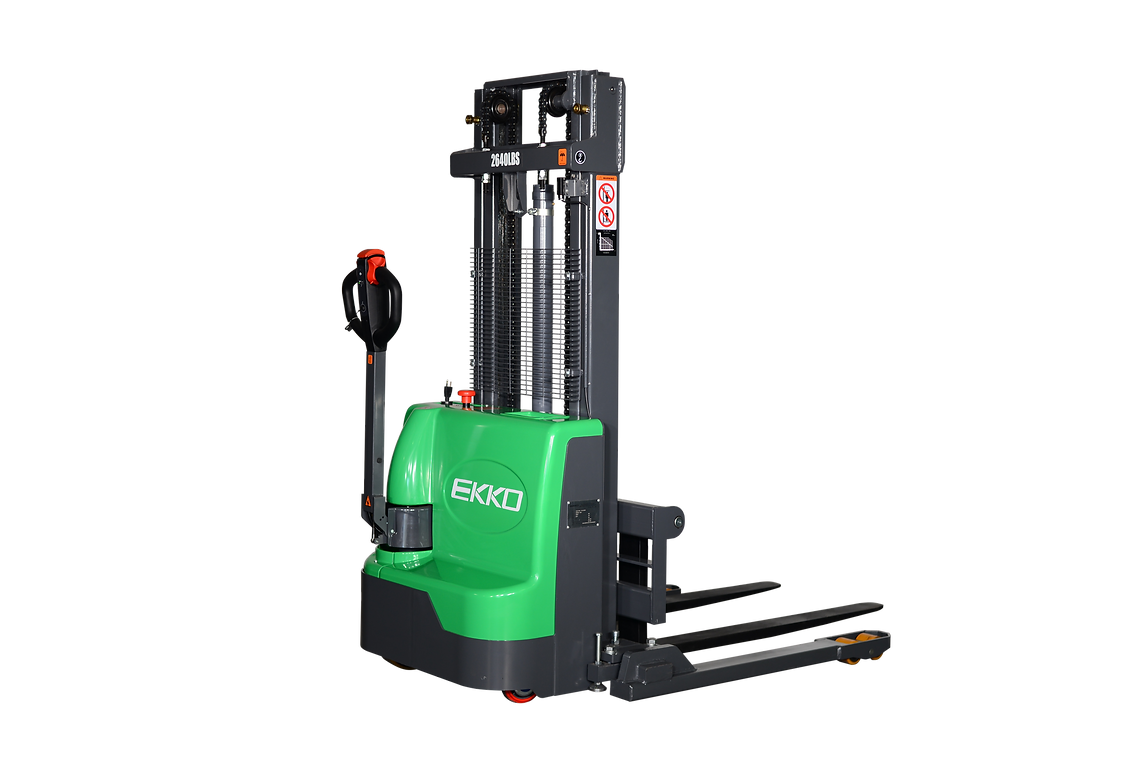

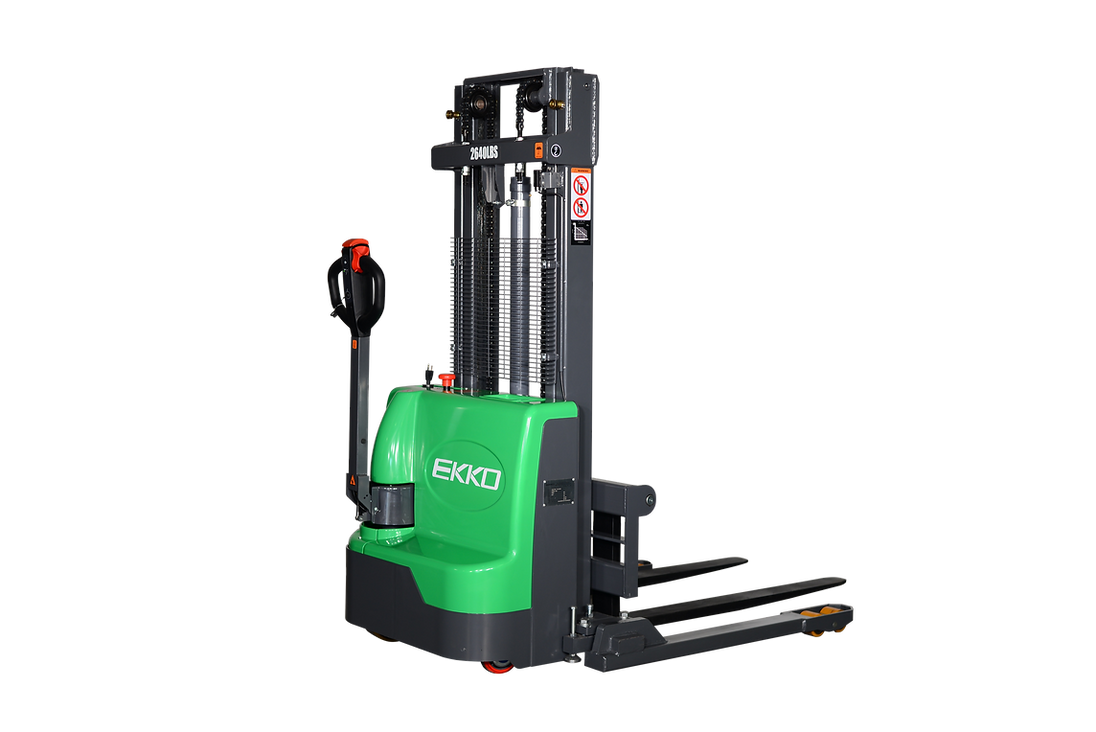

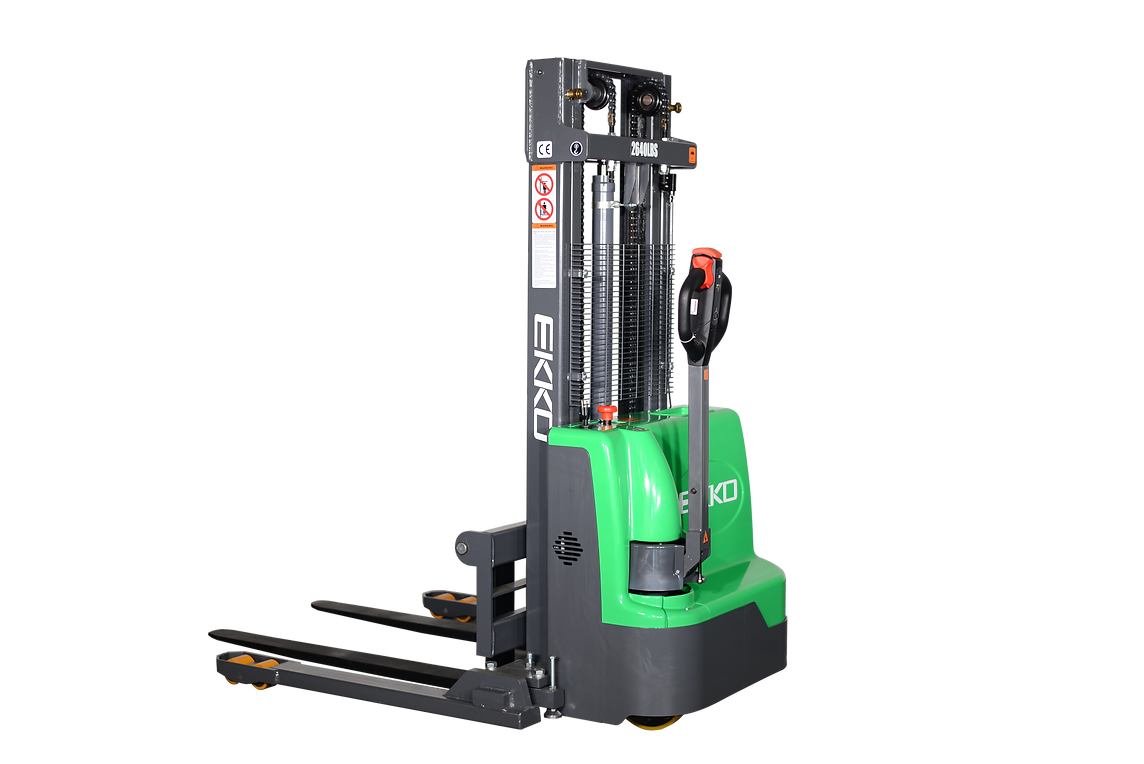

The EKKO EB12E-98Li LITHIUM IRON PHOSPHATE Electric Straddle Stacker with a 72" lowered mast can get underneath any doorway and is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 2640 lb
  • Lowered Mast 72"
  • Raised Height 98”
  • Adjustable Forks 8.3-33.5“
  • Adjustable Legs 45.7-59.1”
  • Fork Length 45.3“
  • Curtis Instrument Controller
  • 24V Drive Motor
  • 24V Lift Motor
  • Battery 24V/50Ah Lithium
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • 3 Year Limited Warranty
Model   EB12E-98Li
Power unit   Walkie
Operate type   Electric
Load capacity Q (LBS) 2640
Load Center c (Inch) 24
Axle center to fork face  x (Inch) 28
Wheelbase  y (Inch) 45.4
Service weight LBS 1300
Tires   Polyurethane wheels
Front wheel size, number Φ×w(Inch) Φ3.1x2.7 ,4
Rear wheel size, number  Φ×w(Inch) Φ8.3*2.7,1
Balance wheel size, number Φ×w(Inch) Φ6*2.3  1
Lowered mast height h1 (Inch) 72.05
the max Lift height h3 (Inch) 98.42
Extended mast height h4 (Inch) 119.96
Operating handle height at drive position (min/Max h14 (Inch) 34.25/47.24
Lower fork height h13 (Inch) 2.56
Overall Length l1 (Inch) 71
Length to Fork face  l2 (Inch) 23.82
Fork Dimension: s/e/l (Inch) 1.38/3.94/45.28
Outside width between two fork b5 (Inch) 8.27-33.47
Min ground clearance  m2 (Inch) 0.95
Turning radius Wa (Inch) 52.6
Travel speed, laden/unladen km/h 4.0/4.2
Lift speed, laden/unladen m/s 92/136
Lowering speed. Laden/unladen m/s 112/98
Maximum climbing ability Laden/unladen % 6/8
Service brake   Electromagnetic
Life motor kw 2.2
Driving motor  kw 0.75
Steering motor  kw /
Battery according to Din 43531/35/36 a,b,c   no
Battery voltage, nominal capacity v/ah 24 V/50AH
battery weight  LBS 29
Type of control    DC
Noise level at operator's ear    69
Steering type   Mechanical
