Product Description

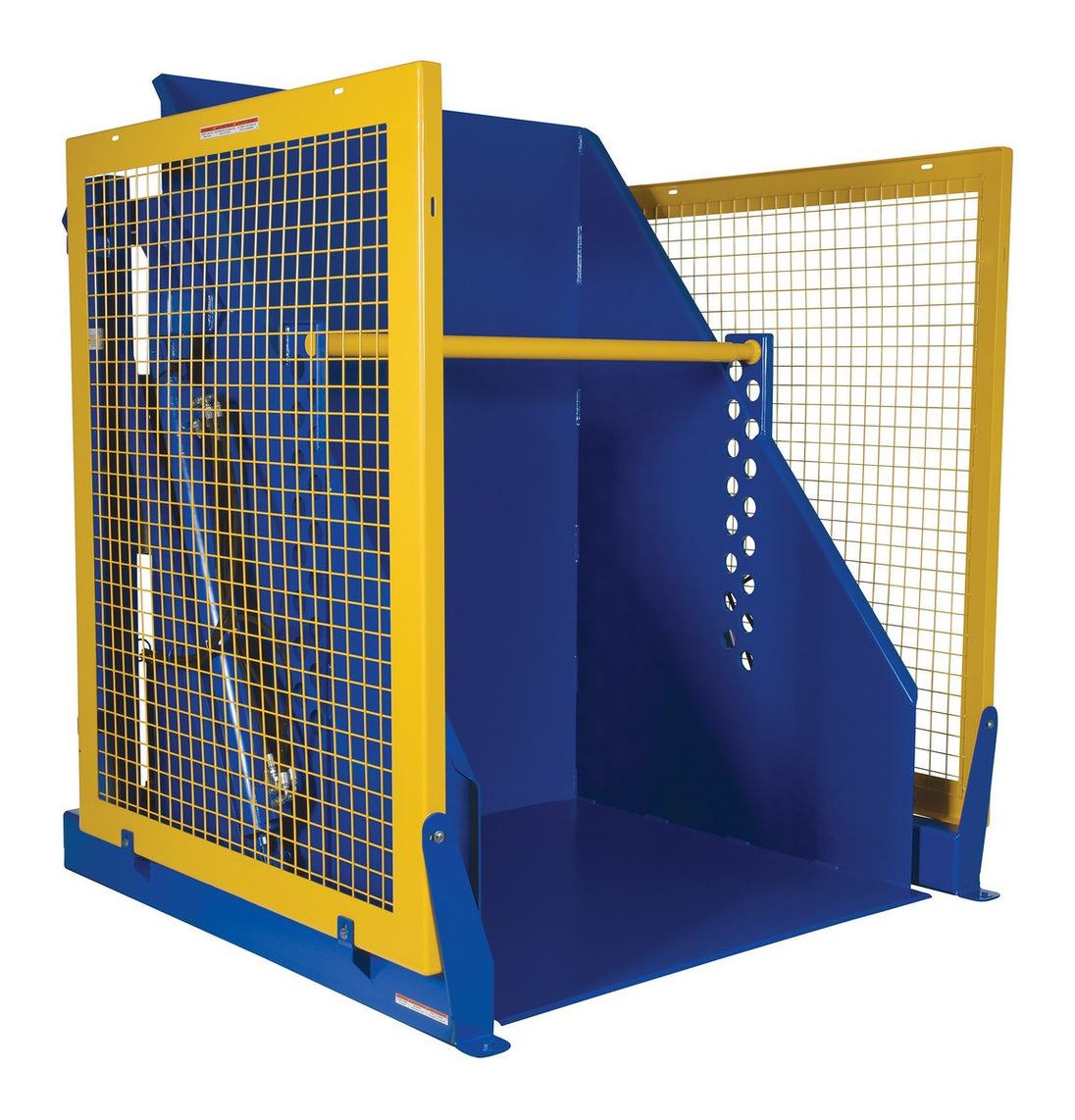

The electric/Hydraulic box dumper is designed for controlled dumping of material from boxes, crates, and other types of containers. It is designed for pallet truck loading and unloading. The retaining bar adjusts to accommodate a wide range of container heights. Each dump height has a hold down range and an internal power unit with a hand held control standard. It has a heavy-duty welded steel construction with protective mesh side screens included.

  • Universal design will dump contents of many types and sizes of containers
  • 135 Degrees maximum rotation travel may be stopped at any point during the dump cycle
  • Complete electric/hydraulic power unit to rotate chute at the push of a button
  • Safety mesh screens included on each side of unit for added safety
  • 1 Year Limited Warranty
  • Non-returnable
  • Lead time: 35 days

Assembled Wt.(lbs.): 1977 Assembled Size: 69"W x 69"L x 65"H

 Total Ship Wt.(lbs.): 2147 Package 1 Size: 70"W x 70"D x 72"H



Uniform Capacity (lb.): 6000 Dump Height (in.): 48 Rotated Height (in.): 129-1/2
Lowered Height (in.): 3/8 Usable Chute Width/Length (in.): 52 x 50 Chute Reach at Full Rotation (in.): 10
Hold Downs (in.): 18 to 42 Maximum Rotation Travel (degree): 135 Dump Angle (degree): 45
Motor Horsepower: 5.5 Voltage: 460/3 Phase Maximum Duty Cycle Starts Per Hour: 15
Hand Held Control (volts): 24 Hand Held Control Length (ft.): 8 Standard Output: AC
Cord Length (ft.): 2 Frame Width (in.): 69 Frame Length (in.): 69
Level Height (in.): 65
