Product Description

Continuous Operation With The Extra Benefit Of Wet Or Dry Mode

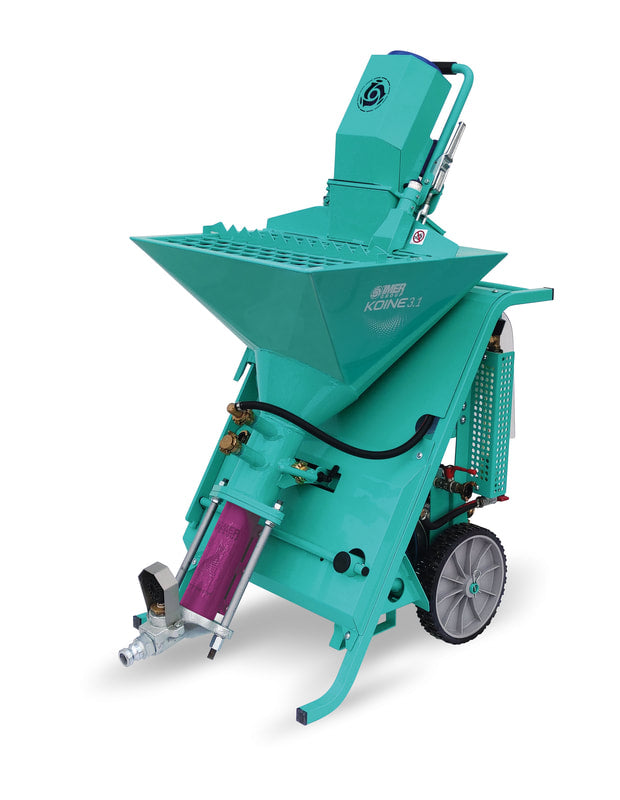

The Koine 3.1 is designed to be a continuous pump for feeding bags of dry material such as underlayment, mortar or grouts. But when you need to mix the material with lots of additives which require longer mixing times then switch to wet mode, use a seperate mixer such as the Mix 120 and pour it into the hopper to use it as just a pump. This gives the flexibility and versatility to be used for any application. Rinse out the hopper when finished.
TECHNICAL SPECIFICATIONS

KOINE 3.1
Model #
1106351
Power Supply
240 V 1Ø
Max Installed Power
4.5 HP
Mixer Motor Power
3 HP
Electric Pump Motor Power
.6 HP
Flow Rate - Dry Mode
1/4 - 3/5 cu ft / min
Flow Rate - Wet Mode
.08 - 3/5 cu ft / min
Hopper Volume
2.65 cu ft
Loading Height
39"
Dimension w/l/h
26 in x 42 in x 59 in
Weight
350 lbs

Standard Equipment

D8 1.5 stator and rotor
Material delivery pressure gauge

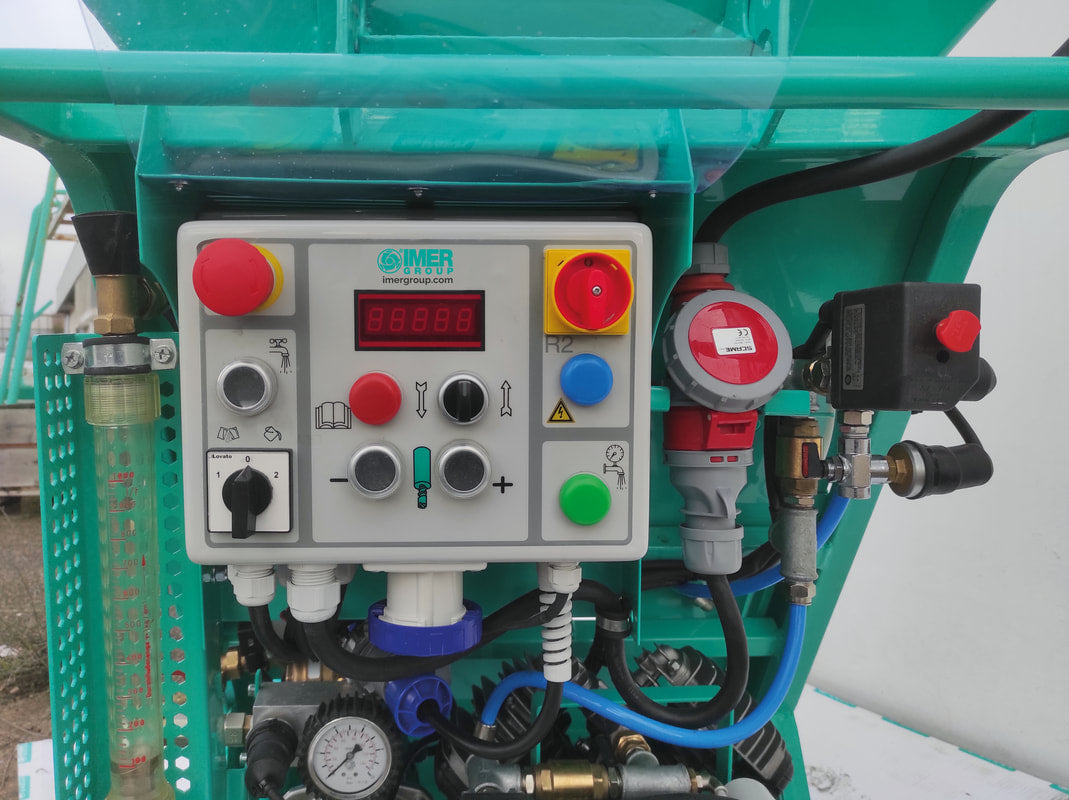

Control panel w/ exclusive IMER speed inverter

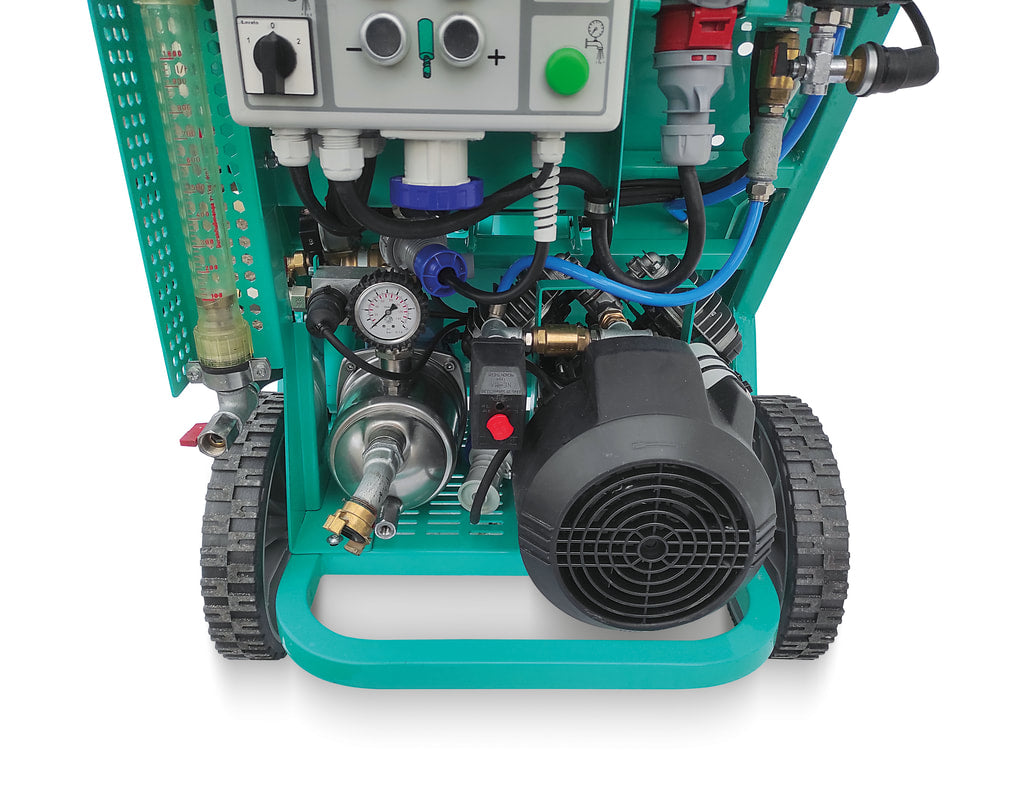

Self-priming water booster pump
Water system with flow meter and discharge valves
66’ of power cord
66’ of water hose Ø 19 mm (3/4”)
50’ of material hose Ø 25 mm (1”)
Hose cleaning kit with toolbox
Mixing chamber clean out tool
Air compressor ready
